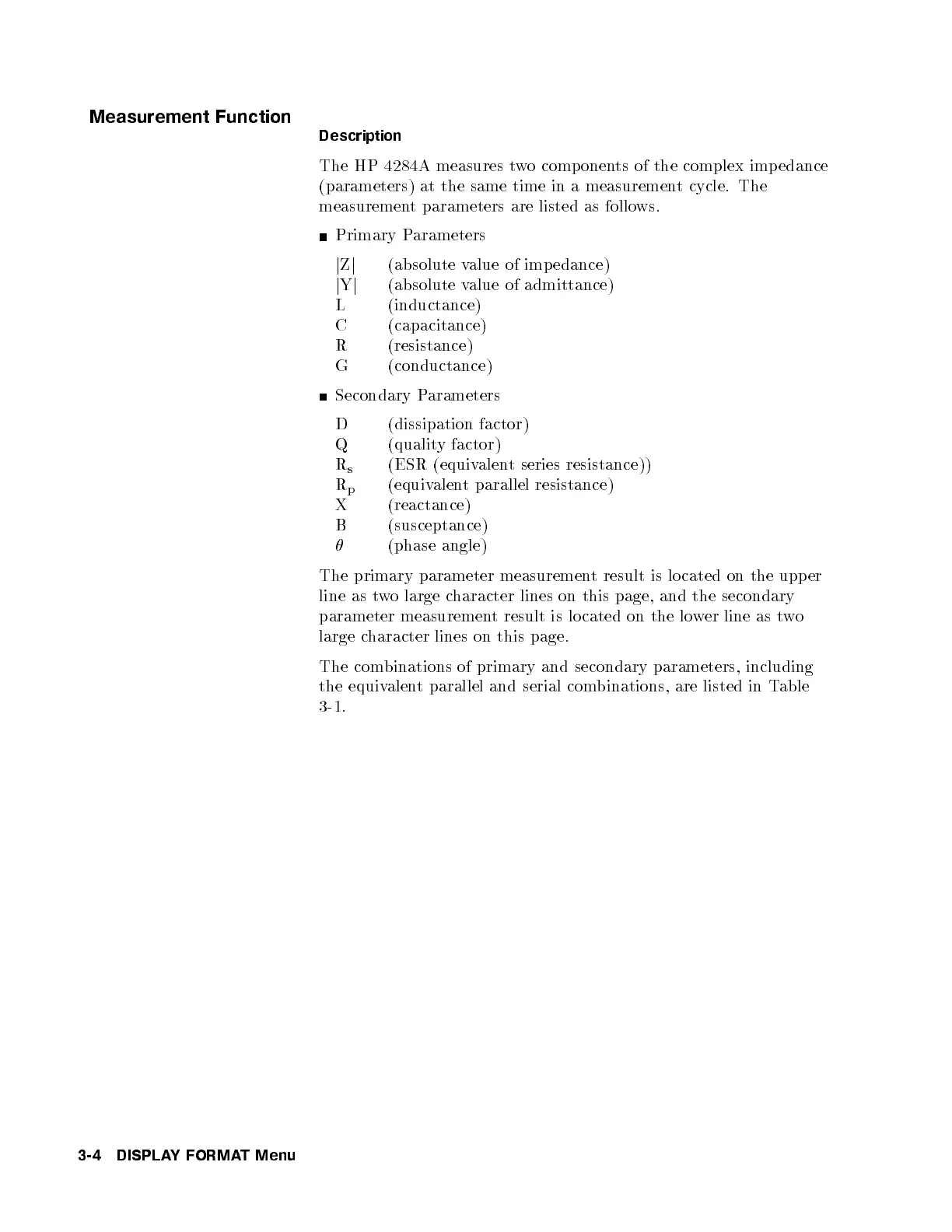

Measurement Function
Description
The HP 4284A measures two comp onents of the complex imp edance
(parameters) at the same time in a measurement cycle. The
measurement parameters are listed as follows.
Primary Parameters
j
Z
j
(absolute value of imp edance)
j
Y
j
(absolute value of admittance)
L (inductance)
C (capacitance)
R (resistance)
G (conductance)
Secondary Parameters
D (dissipation factor)
Q (quality factor)
R
s
(ESR (equivalent series resistance))
R
p
(equivalent parallel resistance)
X (reactance)
B (susceptance)
(phase angle)
The primary parameter measurement result is lo cated on the upper
line as two large character lines on this page, and the secondary
parameter measurement result is lo cated on the lower line as two
large character lines on this page.
The combinations of primary and secondary parameters, including
the equivalent parallel and serial combinations, are listed in Table
3-1.
