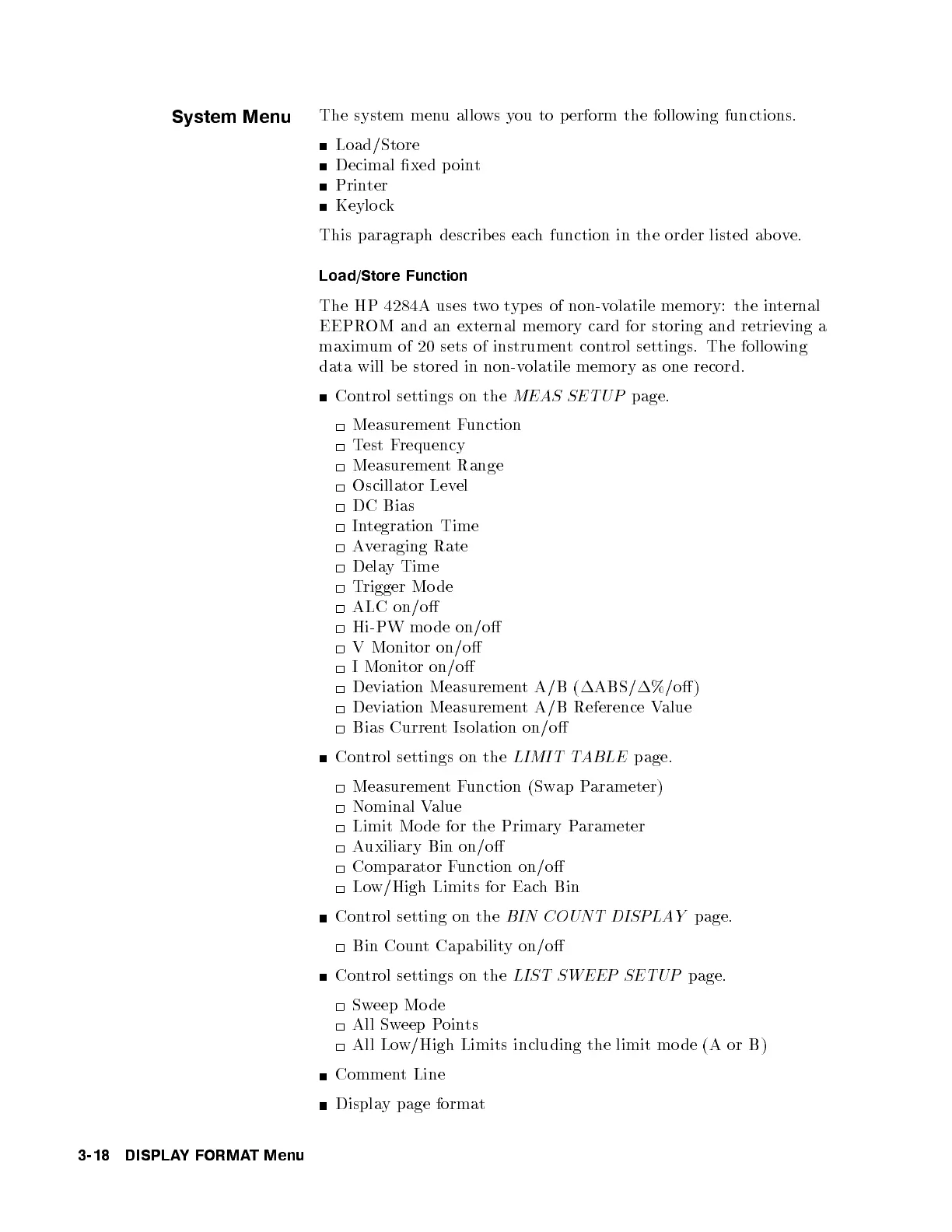

System Menu
The system menu allows you to perform the following functions.
Load/Store
Decimal xed point
Printer
Keylo ck
This paragraph describ es each function in the order listed ab ove.
Load/Store Function
The HP 4284A uses twotypes of non-volatile memory: the internal
EEPROM and an external memory card for storing and retrieving a
maximum of 20 sets of instrument control settings. The following
data will b e stored in non-volatile memory as one record.
Control settings on the MEAS SETUP page.
MeasurementFunction
Test Frequency
Measurement Range
Oscillator Level
DC Bias
Integration Time
Averaging Rate
Delay Time
Trigger Mo de
ALC on/o
Hi-PW mo de on/o
V Monitor on/o
I Monitor on/o
Deviation Measurement A/B (1ABS/1%/o )
Deviation Measurement A/B Reference Value
Bias Current Isolation on/o
Control settings on the LIMIT TABLE page.
MeasurementFunction (Swap Parameter)
Nominal Value
Limit Mo de for the Primary Parameter
Auxiliary Bin on/o
Comparator Function on/o
Low/High Limits for Each Bin
Control setting on the BIN COUNT DISPLAY page.
Bin Count Capability on/o
Control settings on the LIST SWEEP SETUP page.
Sweep Mo de
All Sweep Points
All Low/High Limits including the limit mo de (A or B)
Comment Line
Display page format
3-18 DISPLAYFORMAT Menu
