<MEAS DISPLAY> SYS MENU
FUNC : Cp-D RANGE: AUTO
FREQ :1.00000MHz BIAS : 1.000 V
LEVEL: 1.00 V INTEG: MED
Cp: 99.9929pF
D : .000071
Vm : 1.009 V Im : 633.9uA
CORR: OPEN,SHORT,LOAD CH: 0

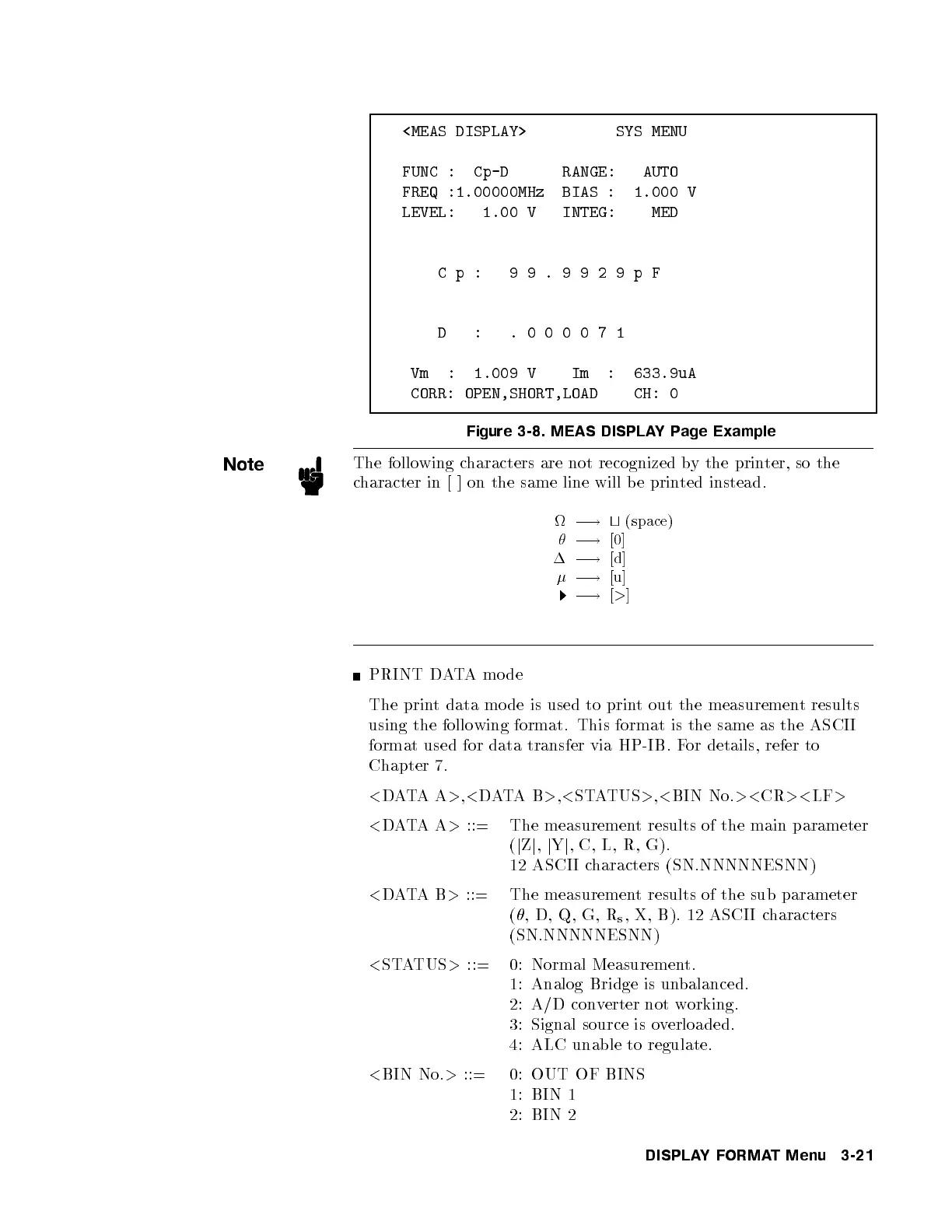

Figure 3-8. MEAS DISPLAYPage Example
Note
The following characters are not recognized b
y the printer, so the
character in [ ] on the same line will be prin
ted instead.
0!t
(space)
0!
[0]
1
0!
[d]
0!
[u]
7
0!
[
>
]
PRINT DATAmode
The print data mo de is used to print out the measurement results
using the follo wing format. This format is the same as the ASCI I
format used for data transfer via HP-IB. For details, refer to
Chapter 7.
<
DATAA
>
,
<
DATAB
>
,
<
STATUS
>
,
<
BIN No.
><
CR
><
LF
>
<
DATAA
>
::= The measurement results of the main parameter
(
j
Z
j
,
j
Y
j
, C, L, R, G).
12 ASCII characters (SN.NNNNNESNN)
<
DATAB
>
::= The measurement results of the sub parameter
(
,D,Q,G,R
s
, X, B). 12 ASCII characters
(SN.NNNNNESNN)
<
STATUS
>
::= 0: Normal Measurement.
1: Analog Bridge is unbalanced.
2: A/D converter not working.
3: Signal source is overloaded.
4: ALC unable to regulate.
<
BIN No.
>
::= 0: OUT OF BINS
1: BIN 1
2: BIN 2
DISPLAYFORMAT Menu 3-21
To Next Page
