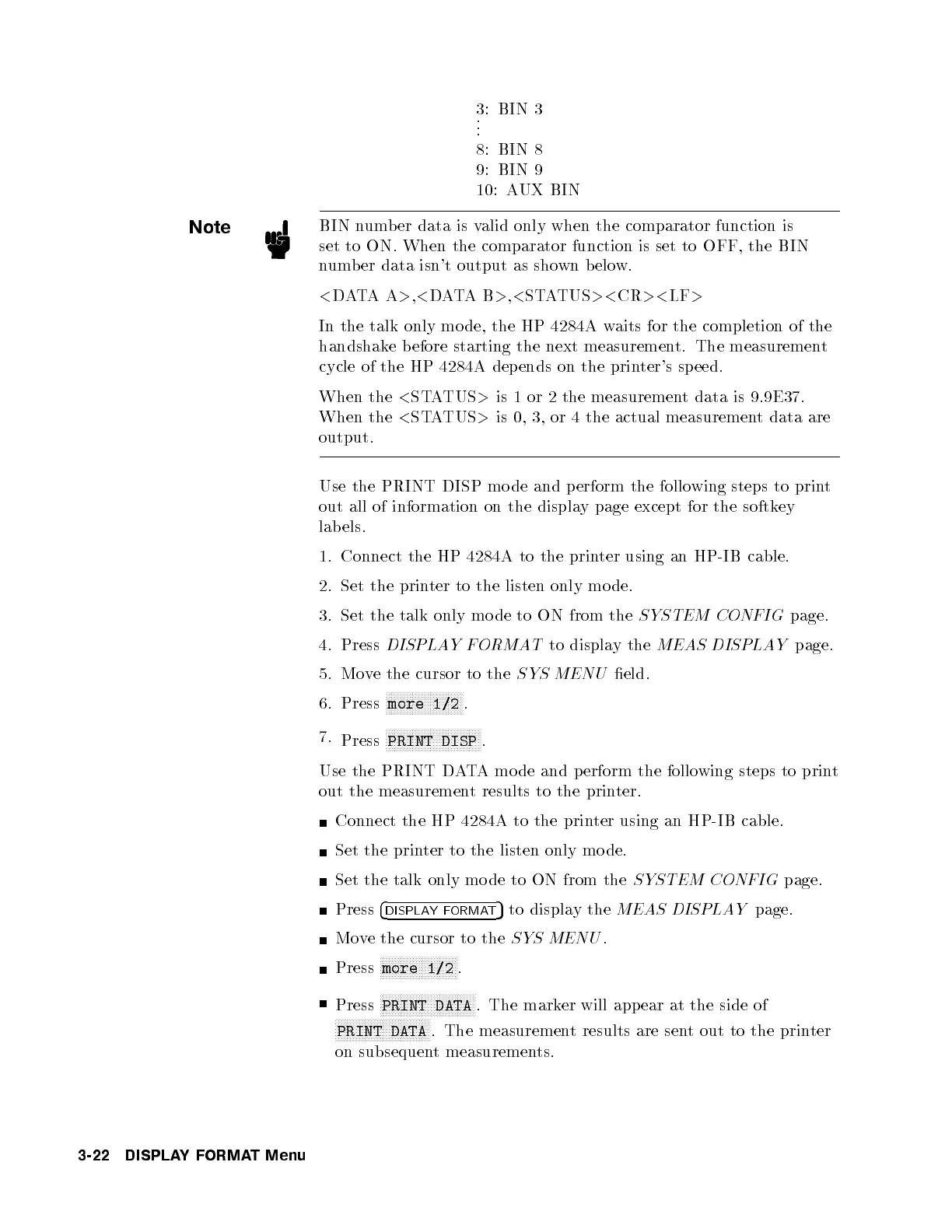

3: BIN 3
.
.
.
8: BIN 8
9: BIN 9
10: AUX BIN
Note
BIN number data is valid only when the comparator function is
set to ON. When the comparator function is set to OFF, the BIN
number data isn't output as shown below.
< DATAA > , < DATAB > , < STATUS >< CR >< LF >
In the talk only mo de, the HP 4284A waits for the completion of the
handshake before starting the next measurement. The measurement
cycle of the HP 4284A depends on the printer's speed.
When the < STATUS > is 1 or 2 the measurement data is 9.9E37.
When the < STATUS > is 0, 3, or 4 the actual measurement data are
output.
Use the PRINT DISP mo de and perform the follo wing steps to prin
t
out all of information on the display page except for the softkey
lab els.
1. Connect the HP 4284A to the printer using an HP-IB cable.
2. Set the printer to the listen only mo de.
3. Set the talk only mo de to ON from the
SYSTEM CONFIG page.
4. Press DISPLAYFORMAT to display the MEAS DISPLAY page.
5. Move the cursor to the SYS MENU eld.
6. Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/2 .
7.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DISP .
Use the PRINT DATA mo de and perform the following steps to print
out the measurement results to the printer.
Connect the HP 4284A to the printer using an HP-IB cable.
Set the printer to the listen only mo de.
Set the talk only mo de to ON from the
SYSTEM CONFIG page.
Press 4
DISPLAYFORMAT
5 to display the MEAS DISPLAY page.
Move the cursor to the SYS MENU .
Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/2 .
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DATA . The marker will app ear at the side of
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DATA . The measurement results are sent out to the printer
on subsequent measurements.
3-22 DISPLAYFORMAT Menu
