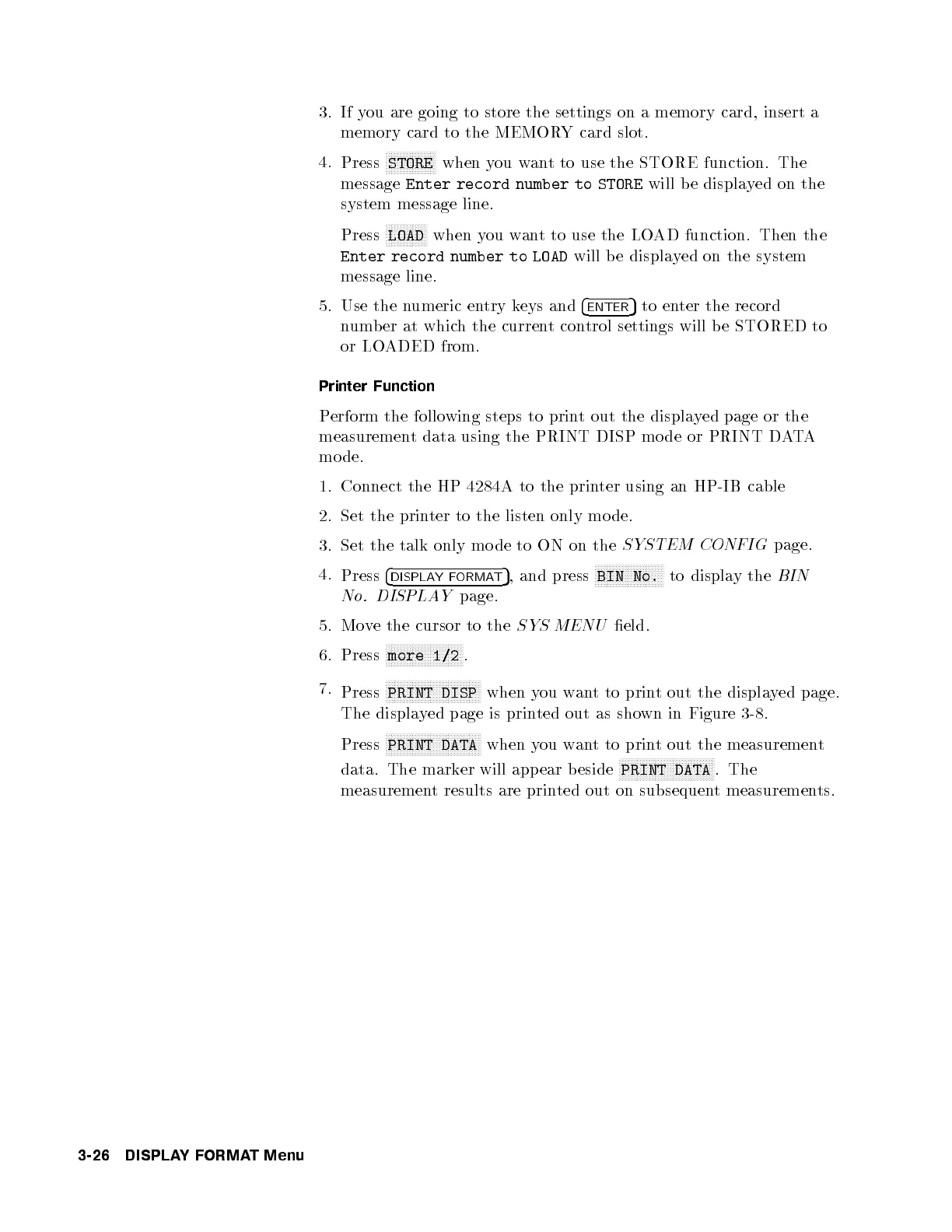

3. If you are going to store the settings on a memory card, insert a
memory card to the MEMORY card slot.
4.
Press
NNNNNNNNNNNNNNNNN
STORE when you want to use the STORE function. The
message Enter record number to STORE will be displayed on the
system message line.
Press
NNNNNNNNNNNNNN
LOAD when you want to use the LOAD function. Then the
Enter record number to LOAD will be displayed on the system
message line.
5. Use the numeric entry keys and 4
ENTER
5 to enter the record
number at which the current control settings will b e STORED to
or LOADED from.
Printer Function
Perform the following steps to print out the displayed page or the
measurement data using the PRINT DISP mo de or PRINT DATA
mo de.
1. Connect the HP 4284A to the printer using an HP-IB cable
2. Set the printer to the listen only mo de.
3. Set the talk only mo de to ON on the
SYSTEM CONFIG page.
4.
Press 4
DISPLAYFORMAT
5 , and press
NNNNNNNNNNNNNNNNNNNNNNN
BIN No. to display the BIN
No. DISPLAY page.
5. Move the cursor to the SYS MENU eld.
6. Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/2 .
7.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DISP when you want to print out the displayed page.
The displayed page is printed out as shown in Figure 3-8.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DATA when you want to print out the measurement
data. The marker will app ear b eside
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DATA . The
measurement results are printed out on subsequent measurements.
3-26 DISPLAYFORMAT Menu
