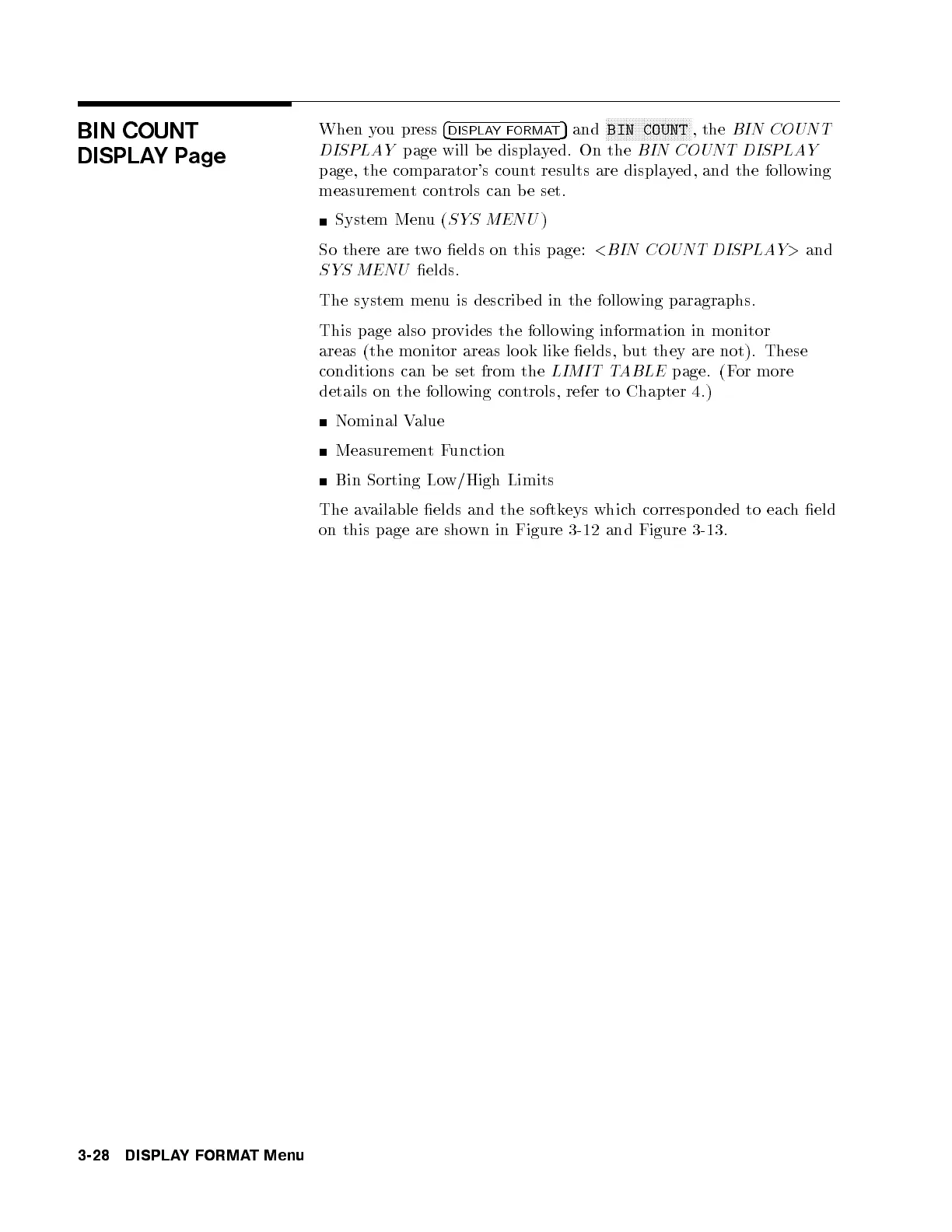

BIN COUNT
DISPLAYPage
When you press
4
DISPLAYFORMAT
5
and
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
BIN COUNT
, the
BIN COUNT
DISPLAY
page will be displayed. On the
BIN COUNT DISPLAY
page, the comparator's count results are displayed, and the following
measurement controls can b e set.
System Menu(
SYS MENU
)
So there are two elds on this page:
<
BIN COUNT DISPLAY
>
and
SYS MENU
elds.
The system menu is describ ed in the following paragraphs.
This page also provides the following information in monitor
areas (the monitor areas lo ok like elds, but they are not). These
conditions can b e set from the
LIMIT TABLE
page. (For more
details on the following controls, refer to Chapter 4.)
Nominal Value
MeasurementFunction
Bin Sorting Low/High Limits
The available elds and the softkeys which corresp onded to each eld
on this page are shown in Figure 3-12 and Figure 3-13.
3-28 DISPLAYFORMAT Menu
