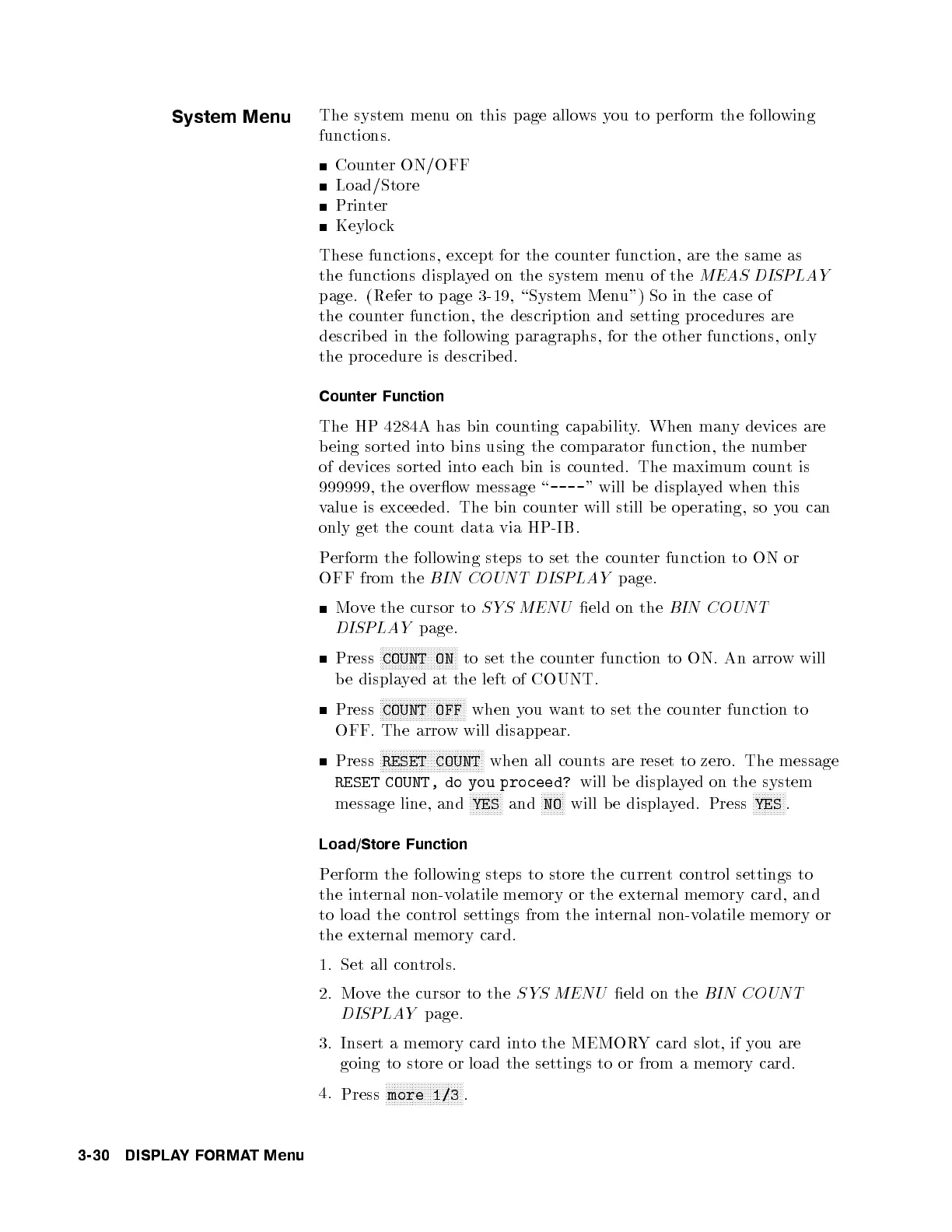

System Menu
The system menu on this page allows you to perform the following
functions.
Counter ON/OFF
Load/Store
Printer
Keylo ck
These functions, except for the counter function, are the same as
the functions displayed on the system menu of the
MEAS DISPLAY
page. (Refer to page 3-19, \System Menu") So in the case of
the counter function, the description and setting pro cedures are
described in the following paragraphs, for the other functions, only
the pro cedure is describ ed.
Counter Function
The HP 4284A has bin counting capability. When many devices are
being sorted into bins using the comparator function, the number
of devices sorted into each bin is counted. The maximum countis
999999, the overow message \
----
" will b e displayed when this
value is exceeded. The bin counter will still b e op erating, so you can
only get the count data via HP-IB.
Perform the following steps to set the counter function to ON or
OFF from the
BIN COUNT DISPLAY
page.
Move the cursor to
SYS MENU
eld on the
BIN COUNT
DISPLAY
page.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
COUNT ON
to set the counter function to ON. An arrow will
be displayed at the left of COUNT.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
COUNT OFF
when you want to set the counter function to
OFF. The arrow will disapp ear.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
RESET COUNT
when all counts are reset to zero. The message
RESET COUNT, do you proceed?
will be displayed on the system
message line, and
NNNNNNNNNNN
YES
and
NNNNNNNN
NO
will be displayed. Press
NNNNNNNNNNN
YES
.
Load/Store Function
Perform the following steps to store the current control settings to
the internal non-volatile memory or the external memory card, and
to load the control settings from the internal non-volatile memory or
the external memory card.
1. Set all controls.
2. Move the cursor to the
SYS MENU
eld on the
BIN COUNT
DISPLAY
page.
3. Insert a memory card into the MEMORY card slot, if you are
going to store or load the settings to or from a memory card.
4.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/3
.
3-30 DISPLAYFORMAT Menu
