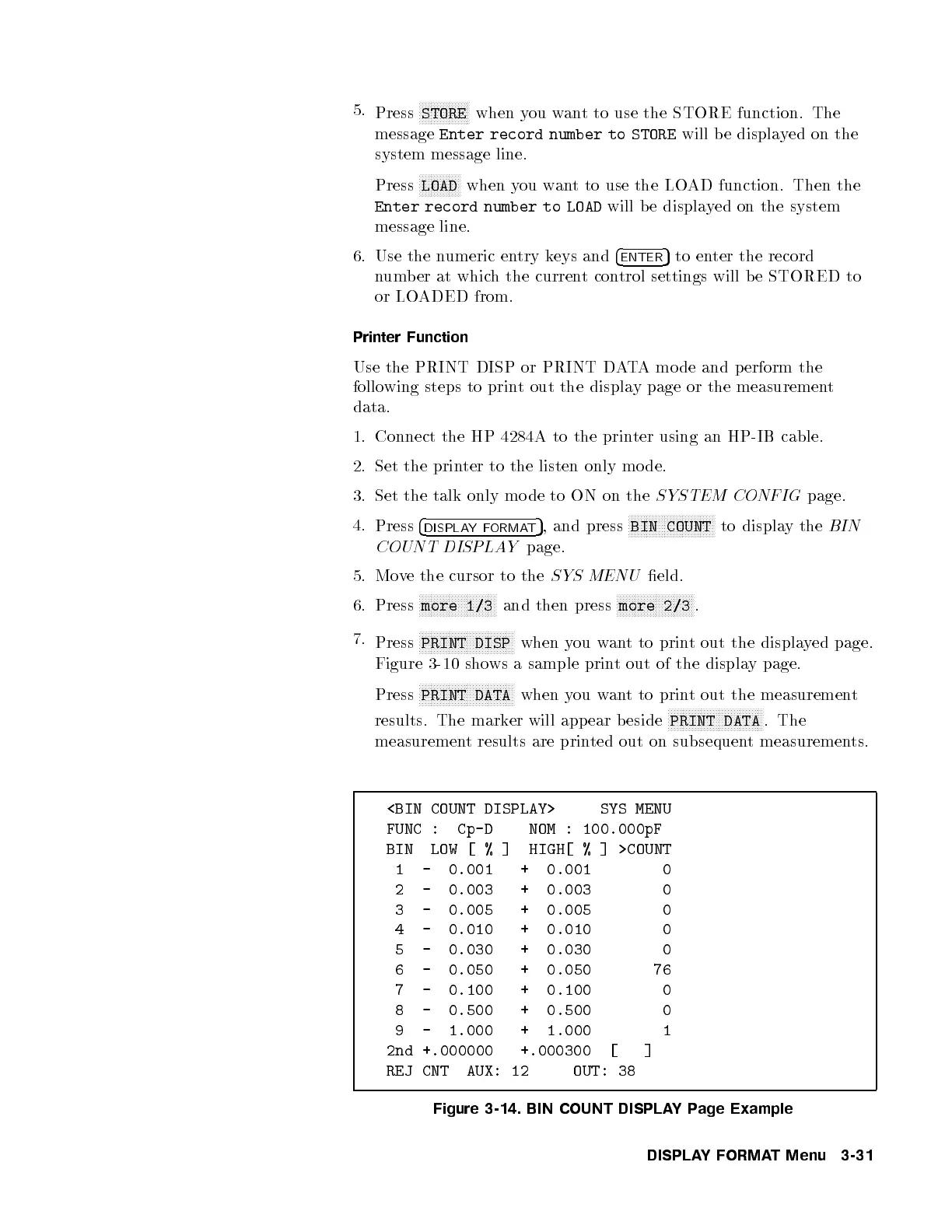

5.
Press
NNNNNNNNNNNNNNNNN
STORE when you want to use the STORE function. The
message Enter record number to STORE will be displayed on the
system message line.
Press
NNNNNNNNNNNNNN
LOAD when you want to use the LOAD function. Then the
Enter record number to LOAD will be displayed on the system
message line.
6. Use the numeric entry keys and 4
ENTER
5 to enter the record
number at which the current control settings will b e STORED to
or LOADED from.
Printer Function
Use the PRINT DISP or PRINT DATA mo de and p erform the
following steps to print out the display page or the measurement
data.
1. Connect the HP 4284A to the printer using an HP-IB cable.
2. Set the printer to the listen only mo de.
3. Set the talk only mo de to ON on the
SYSTEM CONFIG page.
4.
Press 4
DISPLAYFORMAT
5 , and press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
BIN COUNT to display the BIN
COUNT DISPLAY page.
5. Move the cursor to the SYS MENU eld.
6. Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/3 and then press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 2/3 .
7.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DISP when you want to print out the displayed page.
Figure 3-10 shows a sample print out of the display page.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DATA when you want to print out the measurement
results. The marker will app ear beside
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DATA . The
measurement results are printed out on subsequent measurements.
<BIN COUNT DISPLAY> SYS MENU
FUNC : Cp-D NOM : 100.000pF
BIN LOW [ % ] HIGH[ % ] >COUNT
1 - 0.001 + 0.001 0
2 - 0.003 + 0.003 0
3 - 0.005 + 0.005 0
4 - 0.010 + 0.010 0
5 - 0.030 + 0.030 0
6 - 0.050 + 0.050 76
7 - 0.100 + 0.100 0
8 - 0.500 + 0.500 0
9 - 1.000 + 1.000 1
2nd +.000000 +.000300 [ ]
REJ CNT AUX: 12 OUT: 38
Figure 3-14. BIN COUNT DISPLAYPage Example
DISPLAYFORMAT Menu 3-31
