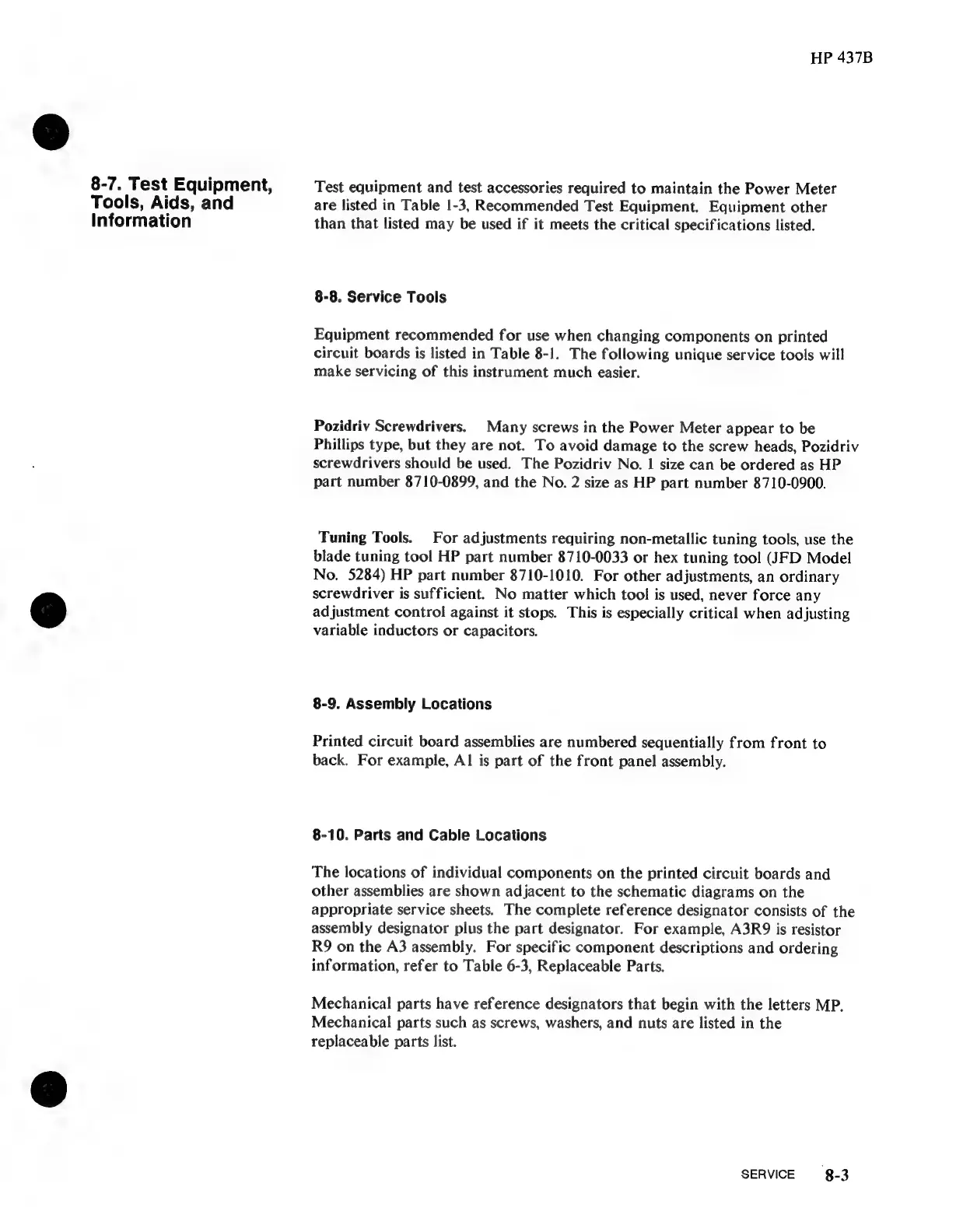

8-7.
Test
Equipment,
Tools,
Aids,
and
Information
HP
437B
Test
equipment
and
test
accessories
required
to
maintain
the
Power
Meter
are
listed
in
Table
1-3,
Recommended
Test
Equipment,
Equipment
other
than
that
listed
may
be
used
if
it
meets
the
critical
specifications
listed.
8-8.
Service
Tools
Equipment
recommended
for
use
when
changing
components
on
printed
circuit
boards
is
listed
in
Table
8-1.
The
following
unique
service
tools
will
make
servicing
of
this
instrument
much
easier.
Pozidriv
Screwdrivers.
Many
screws
in
the
Power
Meter
appear
to
be
Phillips
type,
but
they
are
not.
To
avoid
damage
to
the
screw
heads,
Pozidriv
screwdrivers
should
be
used.
The
Pozidriv
No.
|
size
can
be
ordered
as
HP
part
number
8710-0899,
and
the
No.
2
size
as
HP
part
number
8710-0900.
Tuning
Tools.
For
adjustments
requiring
non-metallic
tuning
tools,
use
the
blade
tuning
tool
HP
part
number
8710-0033
or
hex
tuning
tool
(JFD
Model
No.
5284)
HP
part
number
8710-1010.
For
other
adjustments,
an
ordinary
screwdriver
is
sufficient.
No
matter
which
tool
is
used,
never
force
any
adjustment
control
against
it
stops.
This
is
especially
critical
when
adjusting
variable
inductors
or
capacitors.
8-9.
Assembly
Locations
Printed
circuit
board
assemblies
are
numbered
sequentially
from
front
to
back.
For
example,
Al
is
part
of
the
front
panel
assembly.
8-10.
Parts
and
Cable
Locations
The
locations
of
individual
components
on
the
printed
circuit
boards
and
other
assemblies
are
shown
adjacent
to
the
schematic
diagrams
on
the
appropriate
service
sheets.
The
complete
reference
designator
consists
of
the
assembly
designator
plus
the
part
designator.
For
example,
A3R9
is
resistor
R9
on
the
A3
assembly.
For
specific
component
descriptions
and
ordering
information,
refer
to
Table
6-3,
Replaceable
Parts.
Mechanical
parts
have
reference
designators
that
begin
with
the
letters
MP.
Mechanical
parts
such
as
screws,
washers,
and
nuts
are
listed
in
the
replaceable
parts
list.
SERVICE
§-3
