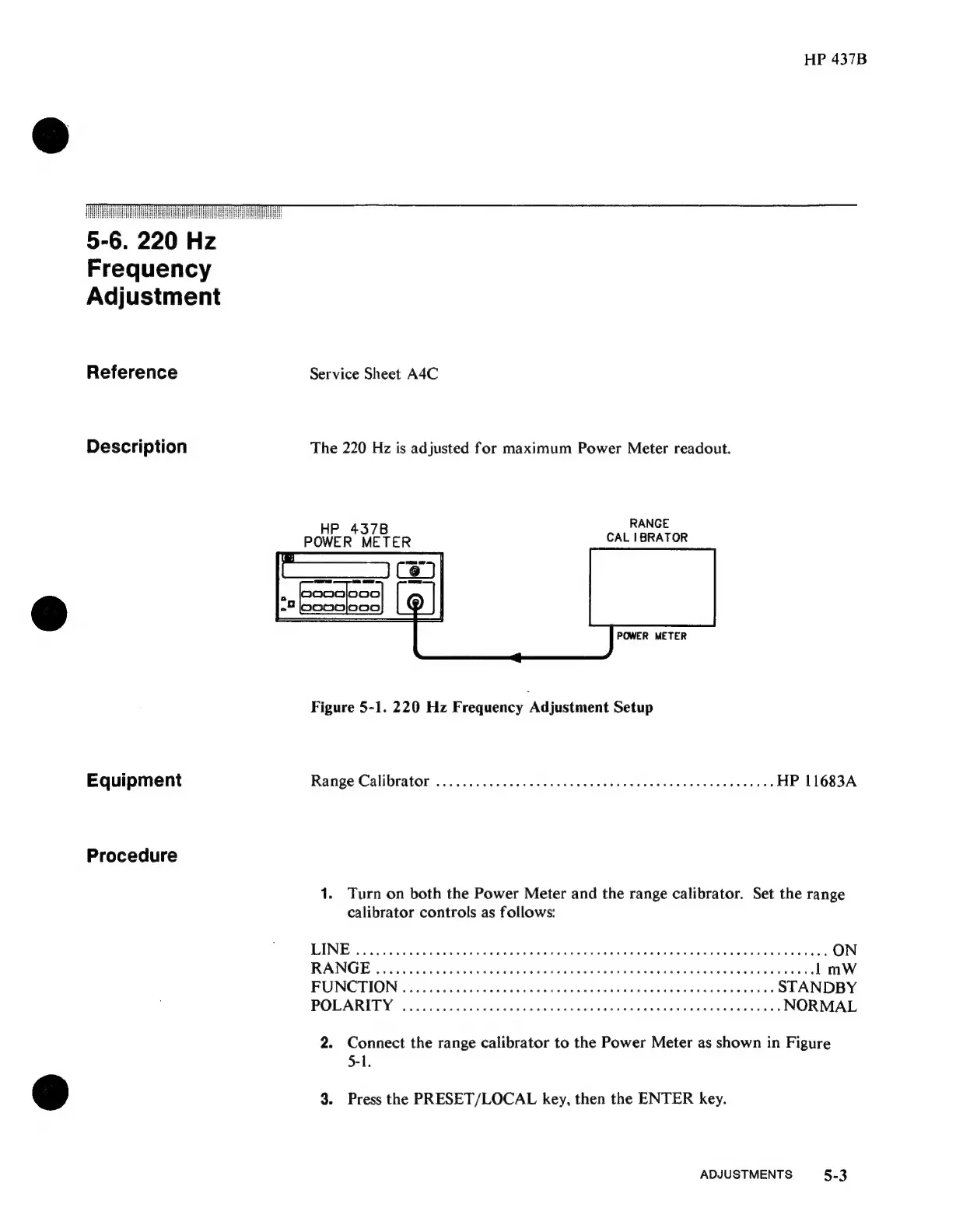

5-6. 220 Hz
Frequency
Adjustment
Reference
Description
Equipment
Procedure
Service Sheet A4C
The 220 Hz is adjusted for maximum Power Meter readout.
RANGE
POWER METER CALIBRATOR
POWER METER
Figure 5-1. 220 Hz Frequency Adjustment Setup
Range Calibrator ..........c.ccccececesceteceeeceseeceenenssnaeeeees HP 11683A
1. Turn on both the Power Meter and the range calibrator. Set the range
calibrator controls as follows:
LINE: eiceccded ox dh eede ve bees vee ee eednatntels oeescu dee eve eee seed ee ees nana des ON
RANGE \0).0.55 cavgda vob ea @iaks outer ote aicandie eas ae Sadan coaagaaassireces 1 mW
FUNCTION (sie cv sess cities tales tia syrnie Sands ole a oye bow daly Saree eclp tele oe STANDBY
POLAREDY © si osc seco Resin diioas sieves liot ei sed oud vadewsekewee NORMAL
2. Connect the range calibrator to the Power Meter as shown in Figure
5-1.
3. Press the PRESET/LOCAL key, then the ENTER key.
ADJUSTMENTS 5-3
