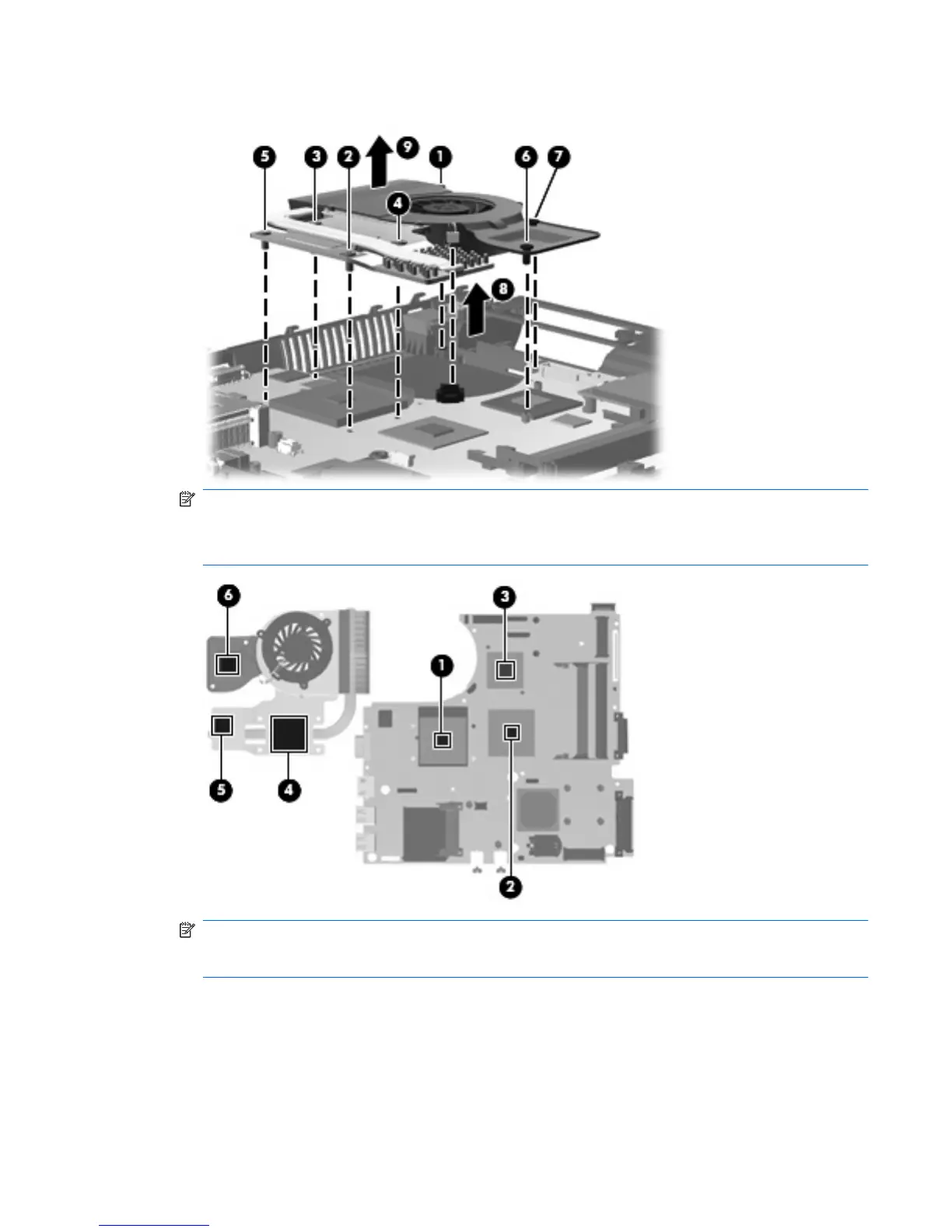

3. Disconnect the fan cable from the system board (8), and then remove the heat sink (9).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the system board
(1), (2), and (3), and the heat sink components (4), (5), and (6) each time the heat sink is removed.
Replacement thermal material is included with all heat sink, system board, and processor spare
part kits.
NOTE: Steps 4 through 6 apply to computers with UMA subsystem memory. Steps 1 through 3
apply to computers with discrete subsystem memory. Step 7 shows how to remove the fan from
the heat sink.
4. Position the computer right-side up with the front toward you.
5. Following the sequence stamped into the heat sink, loosen the five screws (1), (2), (3), (4), (5)
around the processor.
Component replacement procedures 107
