HP 4510s - ProBook - Celeron 1.8 GHz - 6 Replacing the Hard Drive

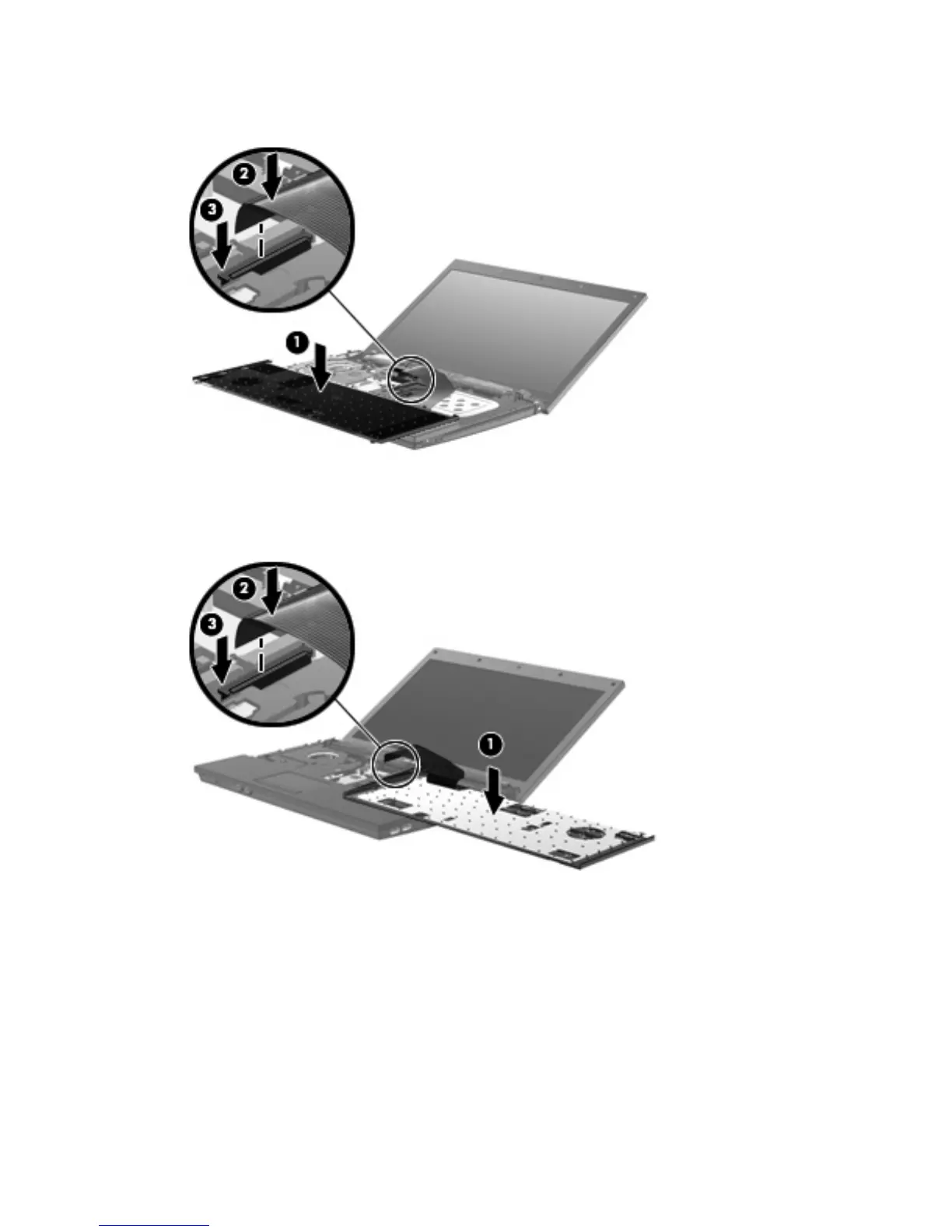

8. Insert the keyboard cable (2) into the ZIF connector (3) on the system board and secure the
connector.
9. For 14-inch computers place the keyboard upside down on the right-side of the computer (1).
10. Insert the keyboard cable (2) into the ZIF connector (3) on the system board and secure the
connector.
30 Chapter 6 Replacing the hard drive
