Model 5304A
Operation

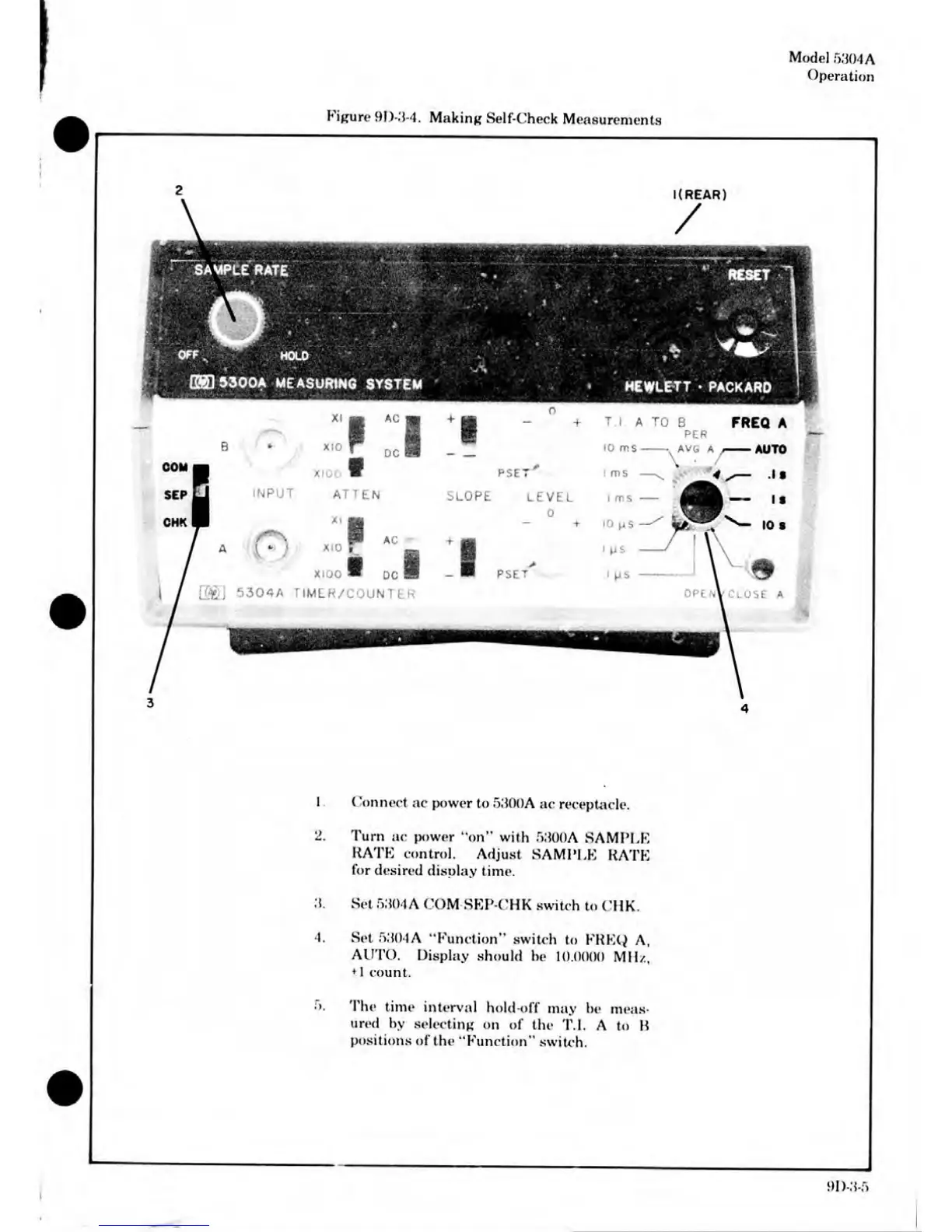

Figure 9D-3-4. Making Self-Check Measurements
NVCLOSE
l(REAR)
/
INPUT
XIO
xioo I
ATTEN
XI
XIO
XiOC » DC
mi 5304A TIMER/COUNTER
PSE
SLOPE LEVEL
0
PSET**
I A TO B FREQ A
PER
10 ms
I ms
.1 ms
10 ps
I MS
l us
1 Connect ac power to 5300A ac receptacle.
2. Turn ac power "on" with 5300A SAMPLE
KATE control. Adjust SAMPLE KATE
for desired display time.
3. Set 5304A COM SEP-CHK switch to CHK.
4. Set 5304A "Function" switch to FREQ A,
AUTO. Display should he 10.0000 MHz,
+ 1 count.
5. The time interval hold-off may be meas-
ured by selecting on of the T.I. A to B
positions of the "Function" switch.
9D-3-5
