HP 5304A - Page 18

Model 5304A
Operation

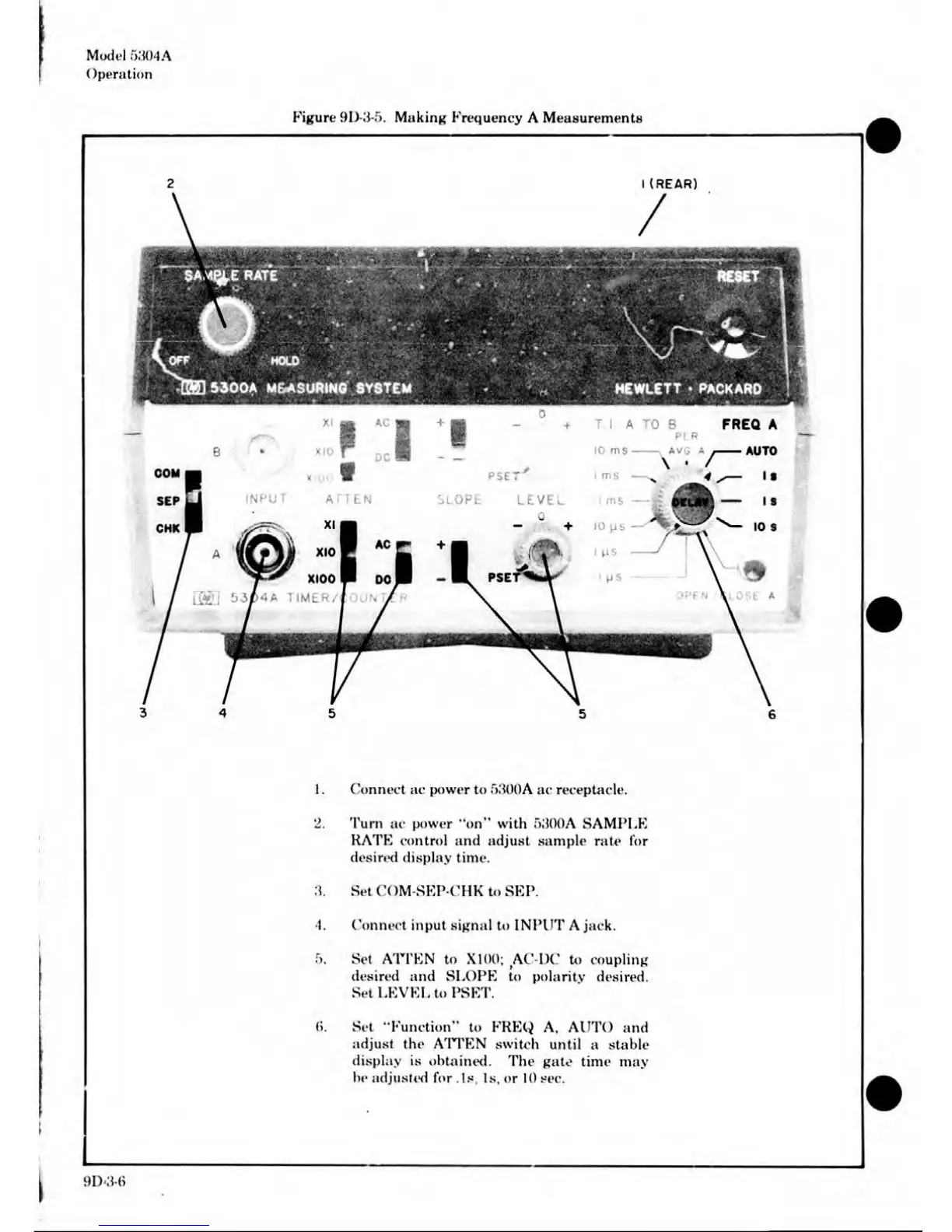

Figure 9D-3-5. Making Frequency A Measurements
XIOO
IMER/
I (REAR)
/
INPUT
ATTEN
T.I. A TO B
PER
10 ms v AVG '
\ •
t ms —^
.1 ms
10 |iS
I ps
MS
—
OPEN
FREQ A
AUTO
It
I s
10 8
OSE A
PSET^
SLOPE LEVEL
Q
+
1. Connect ac power to 5300A ac receptacle.
2. Turn ac power "on" with 5300A SAMPLE
KATE control and adjust sample rate for
desired display time.
3. Set COM-SEP-CHK to SEP.
4. Connect input signal to INPUT A jack.
5. Set ATTEN to XI00; AC-DC U> coupling
desired and SLOPE to polaritv desired.
Set LEVEL to PSET.
(>. Set "Function" to FREQ A, AUTO and
adjust the ATTEN switch until a stable
display is obtained. The gate time may
be adjusted for .Is, Is, or 10 sec.
