Model 5304A
Operation
FREQ A
NPUT
xioo m DC •
53/4A TIMER/COUN/

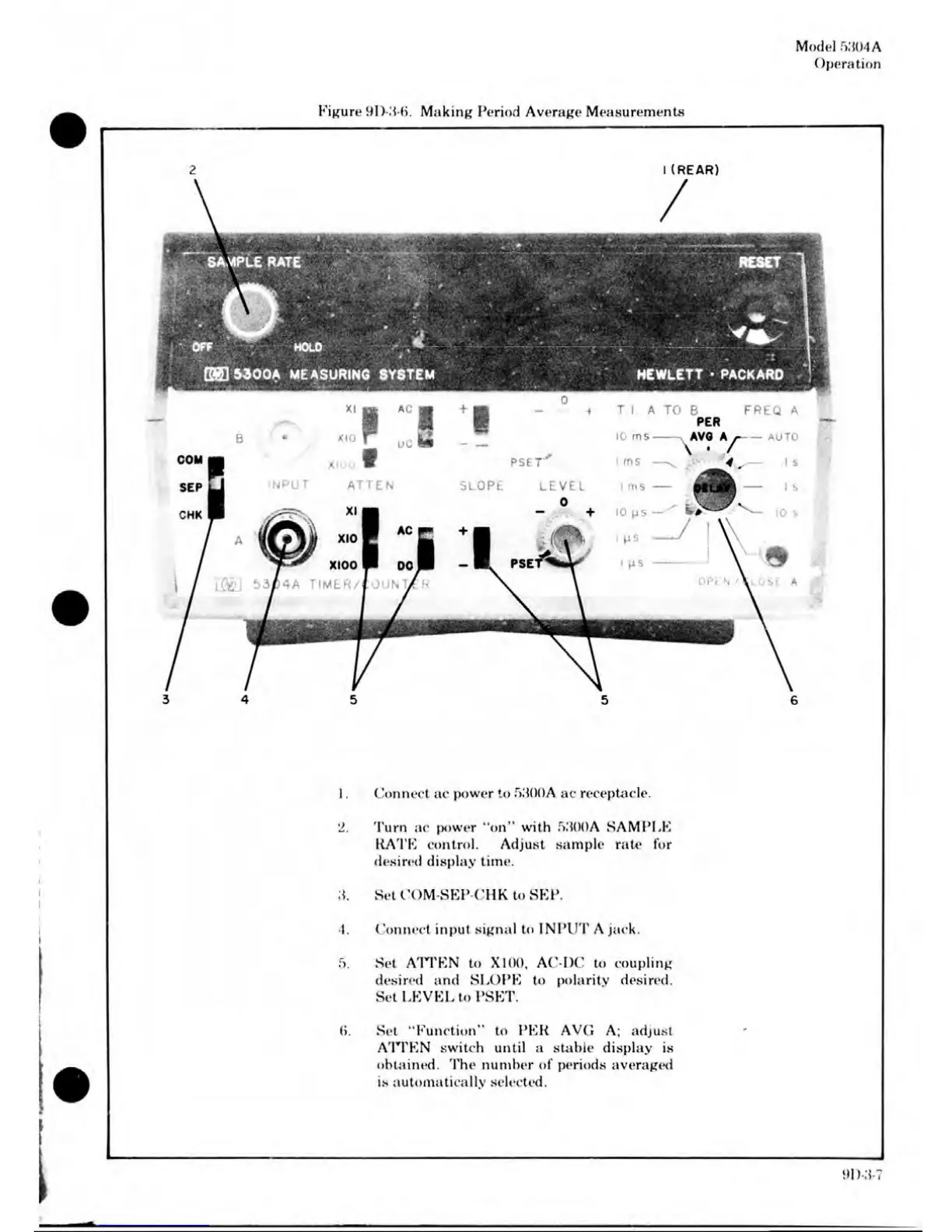

Figure 9D-3-6. Making Period Average Measurements
I (REAR)
1. Connect tic power to 5300A ac receptacle.
2. Turn ac power "on" with 5300A SAMPLE
KATE control. Adjust sample rate for
desired display time.
3. Set COM-SEP-CHK to SEP.
4. Connect input signal to INPUT A jack.
5. Set AIT EN to XI00, AC-DC to coupling
desired and SLOPE to polarity desired.
Set LEVEL to PSET.
(). Set "Function" to PER AVG A; adjust
A'lTEN switch until a stable display is
obtained. The number of periods averaged
is automatically selected.
9D-3-7
