Model 5304A
Maintenance

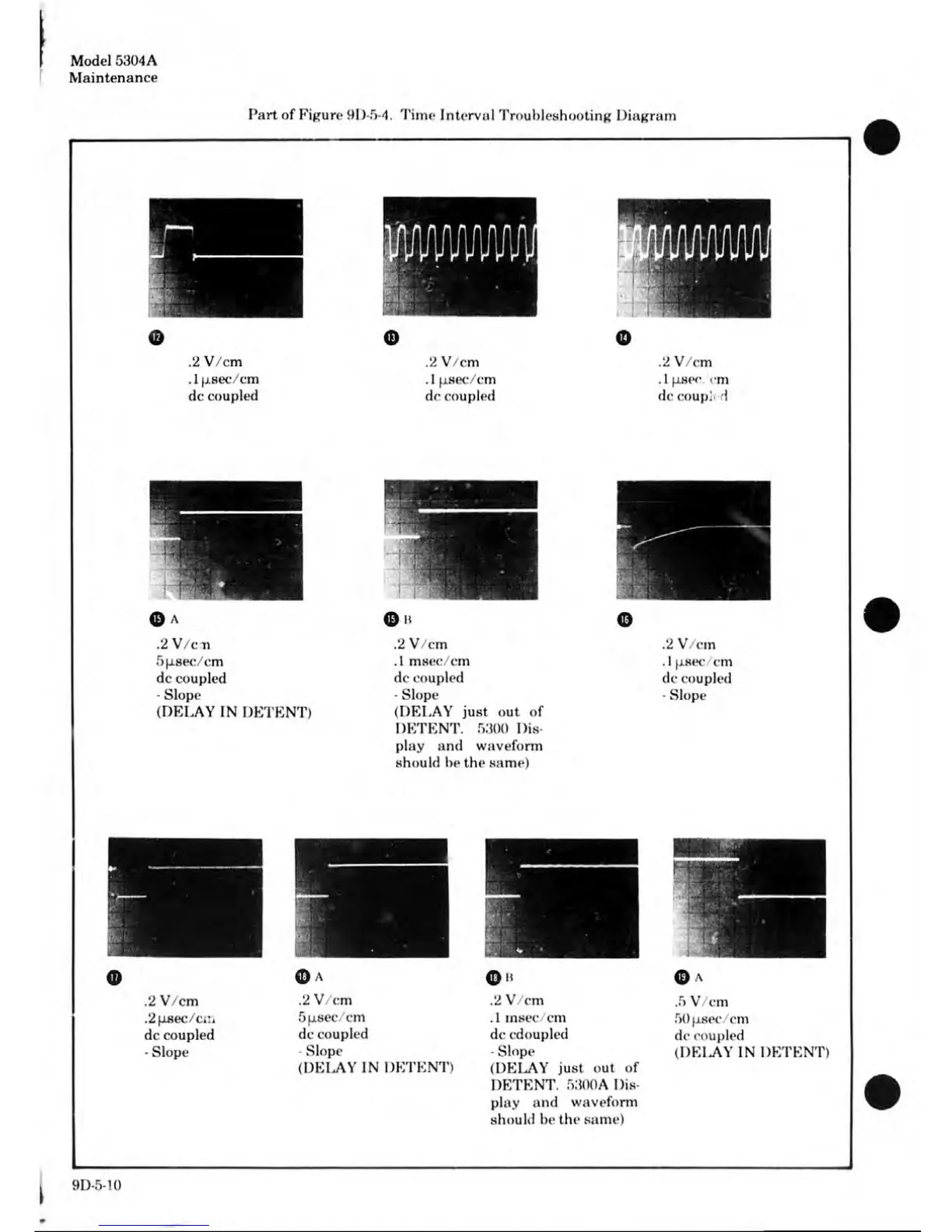

Part of Figure 9D-5-4. Time Interval Troubleshooting Diagram
0
.2 V/cm
. 1 (isec/cm
dc coupled
o
.2 V/cm
.1 fisec. <-m
dc coupled
©
.2 V/cm
.1 jj.8ec/cm
dc coupled
.2 V/cm
. 1 [iHeccm
dc coupled
- Slope
Q A
.2 V/cn
5(i8ec/cm
dc coupled
- Slope
(DELAY IN DETENT)
Q H
.2 V/cm
.1 msec/cm
dc coupled
- Slope
(DELAY just out of
DETENT. 5300 Dis-
play and waveform
should be the same)
©
.2 V/cm
.2fjisec/cin
dc coupled
- Slope
® A
.2 V/cm
5p.sec/cm
dc coupled
- Slope
(DELAY IN DETENT)
Q B
.2 V/cm
.1 msec/cm
dc cdoupled
- Slope
(DELAY just out of
DETENT. 5300A Dis-
play and waveform
should be the same)
.5 V/cm
)() usee/cm
dc coupled
(DELAY IN DETENT)
9D-5-10
