HP 5304A - Page 42

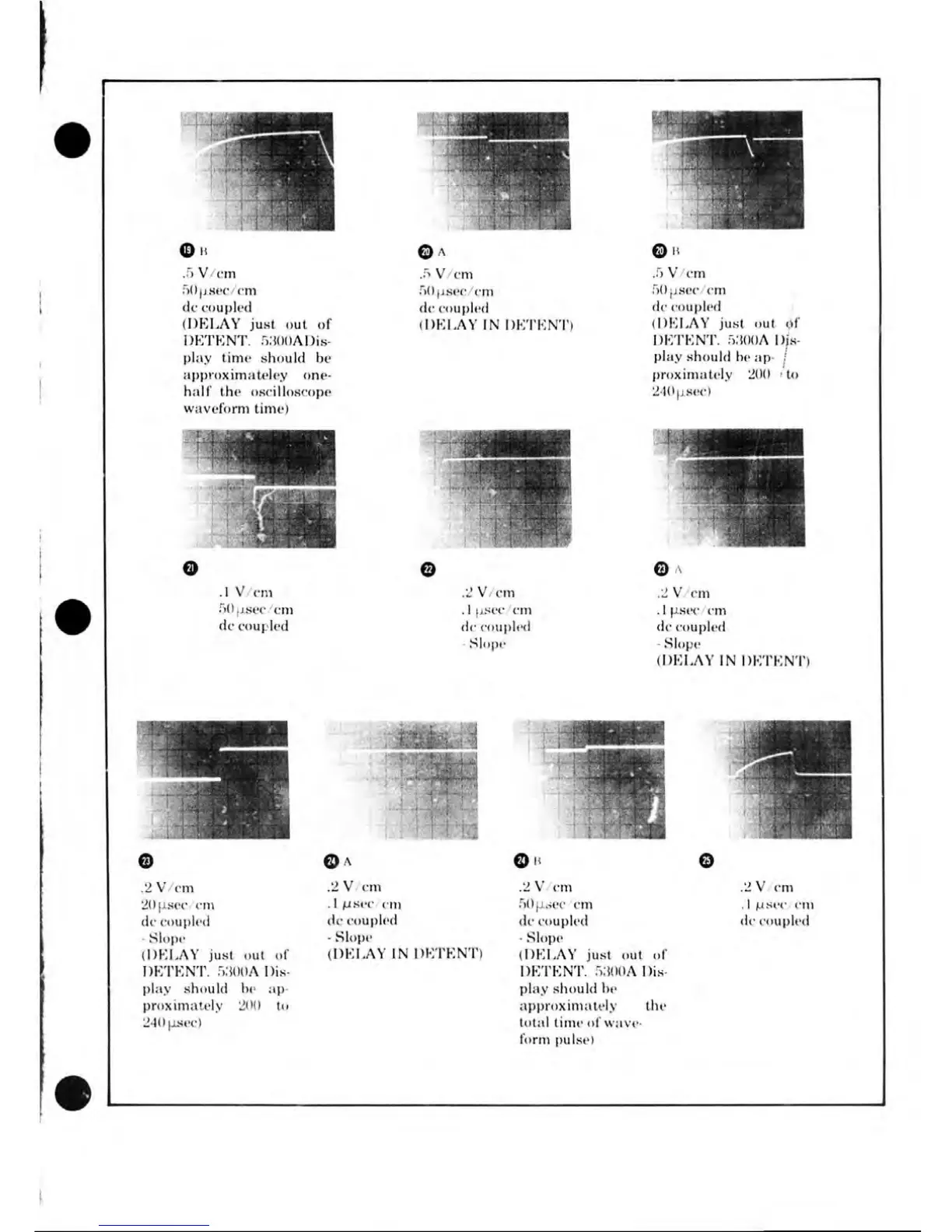

© H
.5 V/cm
50 |j.sec/cm
dc coupled
(I)BLAY just out of
DETENT. .5300A Dis-
play time should be
approximately one-
half the oscilloscope
waveform time)
©
.1 V/cm
50 fj.sec/cm
dc coupled
© A
.2 V/cm
. 1 fisec/cm
dc coupled
- Slope
(DELAY IN DETENT)
© A
.5 V/cm
50 fisec/cm
dc coupled
(DELAY IN DETENT)
©
.2 V/cm
.1 [isec/cm
dc coupled
• Slope
.5 V/cm
50 jisec/cm
dc coupled
(DELAY just out <>f
DETENT. 5300A Dis-
play should be ap-
proximately 200 > to
240|isec)
©
.2 V/cm
20 fisec/cm
dc coupled
- Slope
(DELAY just out of
DETENT. 5300A Dis-
play should be ap-
proximately 200 to
240jasec)
© A
.2 V/cm
.1 /-tsec/cm
dc coupled
- Slope
(DELAY IN DETENT)
© H
.2 V cm
50 fisec/cm
dc coupled
- Slope
(DELAY just out of
DETENT. 5300A Dis-
play should be
approximately the
total time of wave-
form pulse)
.2 V cm
. 1 fj sec cm
dc coupled
