Model 5334A
General Information

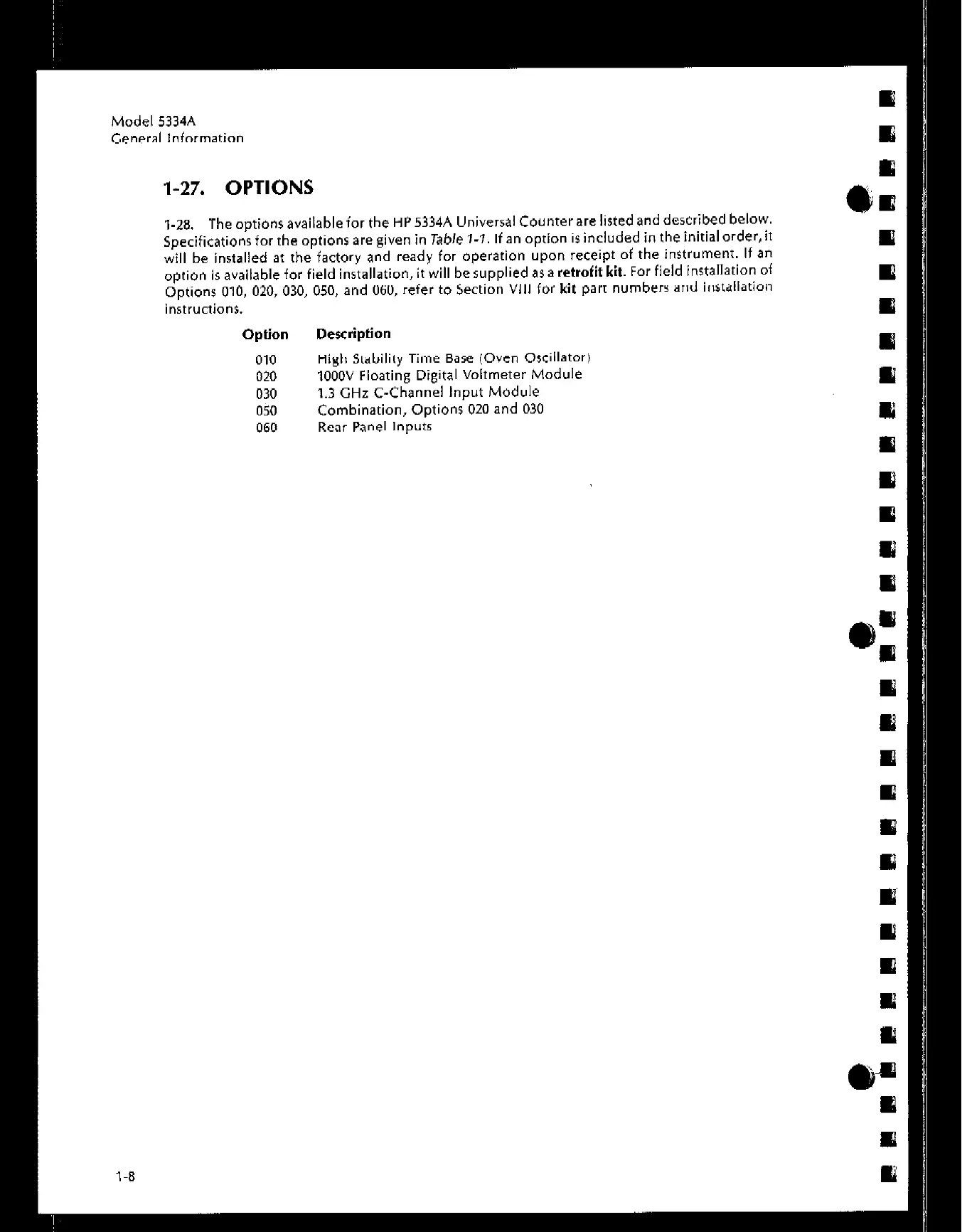

l-27. OPTIONS
1-28. The options available for the HP 5334A Universal Counter are listed and described below.
Specifications for the options are given in Table 7-1. If an option is included in the initial order,it
will be installed at the factory and ready for operation upon receipt of the instrument. If an
option is available for field installation, it will be supplied as a retrofit kit. For field installation of
Options 010, 020, 030, 050, and 060, refer to Section VIII for kit part numbers and installation
instructions.
Option
010
020
030
050
060
Description
High Stability Time Base (Oven Oscillator1
1000~ Floating Digital Voltmeter Module
1.3 CHz C-Channel Input Module
Combination, Options 020 and 030
Rear Panel Inputs
l-8
