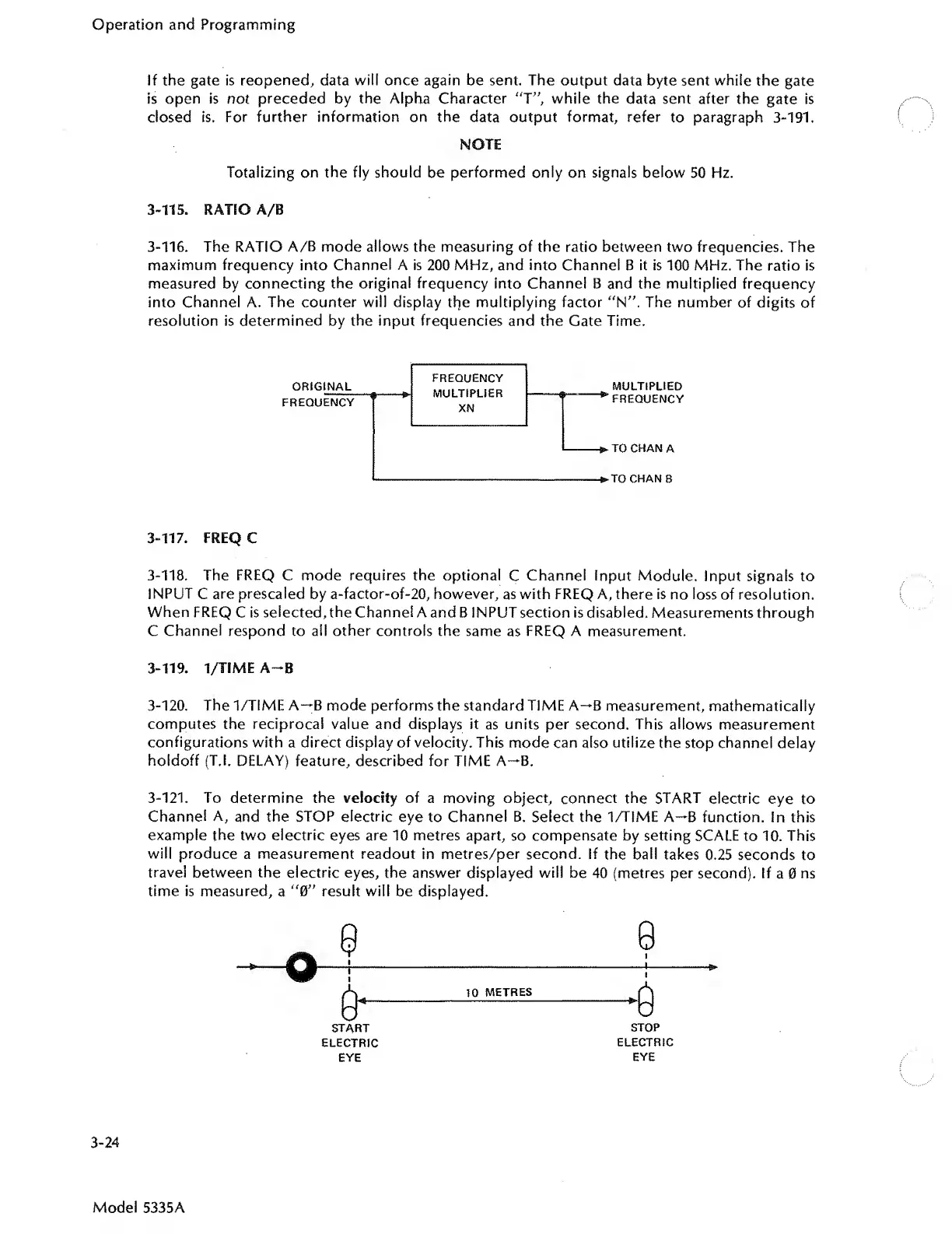

Operation
and
Programming
if
the
gate
is
reopened,
data
will
once
again
be
sent.
The
output
data
byte
sent
whiie
the
gate
is
open
is
not
preceded
by
the
Alpha
Character
"T”,
whiie
the
data
sent
after
the
gate
is
closed
is.
For
further
information
on
the
data
output
format,
refer
to
paragraph
3-191.
NOTE
Totalizing
on
the
fly
should
be
performed
only
on
signals
below
50
Hz.
3-115.
RATIO
A/B
3-116.
The
RATIO
A/B
mode
allows
the
measuring
of
the
ratio
between
two
frequencies.
The
maximum
frequency
into
Channel
A
is
200
MHz,
and
into
Channel
B
it
is
100
MHz.
The
ratio
is
measured
by
connecting
the
original
frequency
into
Channel
B
and
the
multiplied
frequency
into
Channel
A.
The
counter
will
display
the
multiplying
factor
"N”.
The
number
of
digits
of
resolution
is
determined
by
the
input
frequencies
and
the
Gate
Time.
ORIG
I
N
AL
FREQUENCY
FREQUENCY
MULTIPLIER
XN
MULTIPLIED
**
FREQUENCY
-S>
TO
CHAN
A
-^TO
CHAN
B
3-117.
FREQ
C
3-118.
The
FREQ
C
mode
requires
the
optional
C
Channel
Input
Module.
Input
signals
to
INPUT
C
are
prescaled
by
a-factor-of-20,
however,
as
with
FREQ
A,
there
is
no
loss
of
resolution.
When
FREQ
C
is
selected,
theChannei
Aand
B
INPUT
section
is
disabled.
Measurements
through
C
Channel
respond
to
ail
other
controls
the
same
as
FREQ
A
measurement.
3-119.
1/TiME
A—B
3-120.
The
1/TIME
A—B
mode
performs
the
standard
TIME
A-*B
measurement,
mathematically
computes
the
reciprocal
value
and
displays
it
as
units
per
second.
This
allows
measurement
configurations
with
a
direct
display
of
velocity.
This
mode
can
also
utilize
the
stop
channel
delay
holdoff
(T.l.
DELAY)
feature,
described
for
TIME
A—B.
3-121.
To
determine
the
velocity
of
a
moving
object,
connect
the
START
electric
eye
to
Channel
A,
and
the
STOP
electric
eye
to
Channel
B.
Select
the
1/TIME
A—B
function.
In
this
example
the
two
electric
eyes
are
10
metres
apart,
so
compensate
by
setting
SCALE
to
10.
This
will
produce
a
measurement
readout
in
metres/per
second.
If
the
bail
takes
0.25
seconds
to
travel
between
the
electric
eyes,
the
answer
displayed
will
be
40
(metres
per
second).
If
a
0
ns
time
is
measured,
a
result
will
be
displayed.
6
*
START
ELECTRIC
EYE
10
METRES
STOP
ELECTRIC
EYE
3-24
