HP 541 - Page 49

Working Instruction
Document No. :SOP DDD FA Dis-ASS’Y Station
StationStation
Station：
：：
：___________
______________________
___________
Name
NameName
Name：
：：
： Ver
VerVer
Ver.
..
.：
：：
：_____
_____ _____
_____ Date
DateDate
Date：
：：
：___________
______________________
___________
Fixture List(Fixture standard) Qty Fixture List(Fixture standard) Qty
Tabulator：
Issuing department：
IE
Wang Fang
If finding some defects, notice the gaffer and assistant
Points for attention:
26(1/1)
Disassemble WLAN

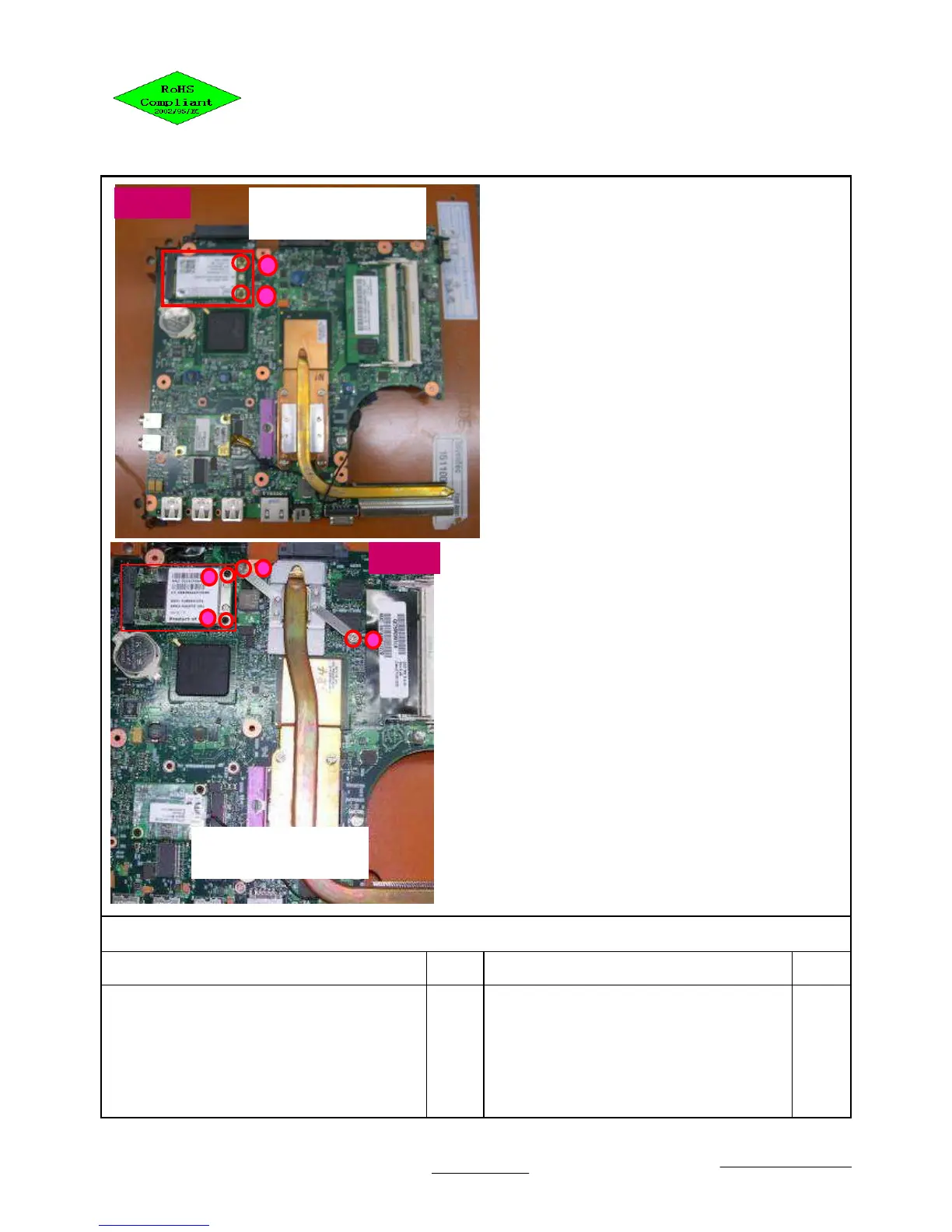

Fig.1
For UMA MB
1
1. Disassemble two screws of WLAN
(6052A0030401) (Fig.1),
2. Disassemble WLAN
3. Take down two elastic screws of
Thermal(Fig.2)
( For discrete )
 Torque：1.5 ± 0.5 Kgf．cm
Electric-hexagonal screwdriver 1
M/B fixture 1
2
For DIS MB
Fig.2
1
2
3
4
1.00
2007/7/20
