HP 541 - Page 50

Working Instruction
Document No. :SOP DDD FA Dis-ASS’Y Station
StationStation
Station：
：：
：___________
______________________
___________
Name
NameName
Name：
：：
： Ver
VerVer
Ver.
..
.：
：：
：_____
_____ _____
_____ Date
DateDate
Date：
：：
：___________
______________________
___________
Fixture List(Fixture standard) Qty Fixture List(Fixture standard) Qty
Tabulator：
Issuing department：
IE
Wang Fang
If finding some defects, notice the gaffer and assistant
Points for attention:
1. Take down thermal screws*4
2. Disassemble THERMAL MODULE from M/B
 Torque：1.5 ± 0.5 Kgf．cm
Disassemble CPU THERMAL
27(1/1)

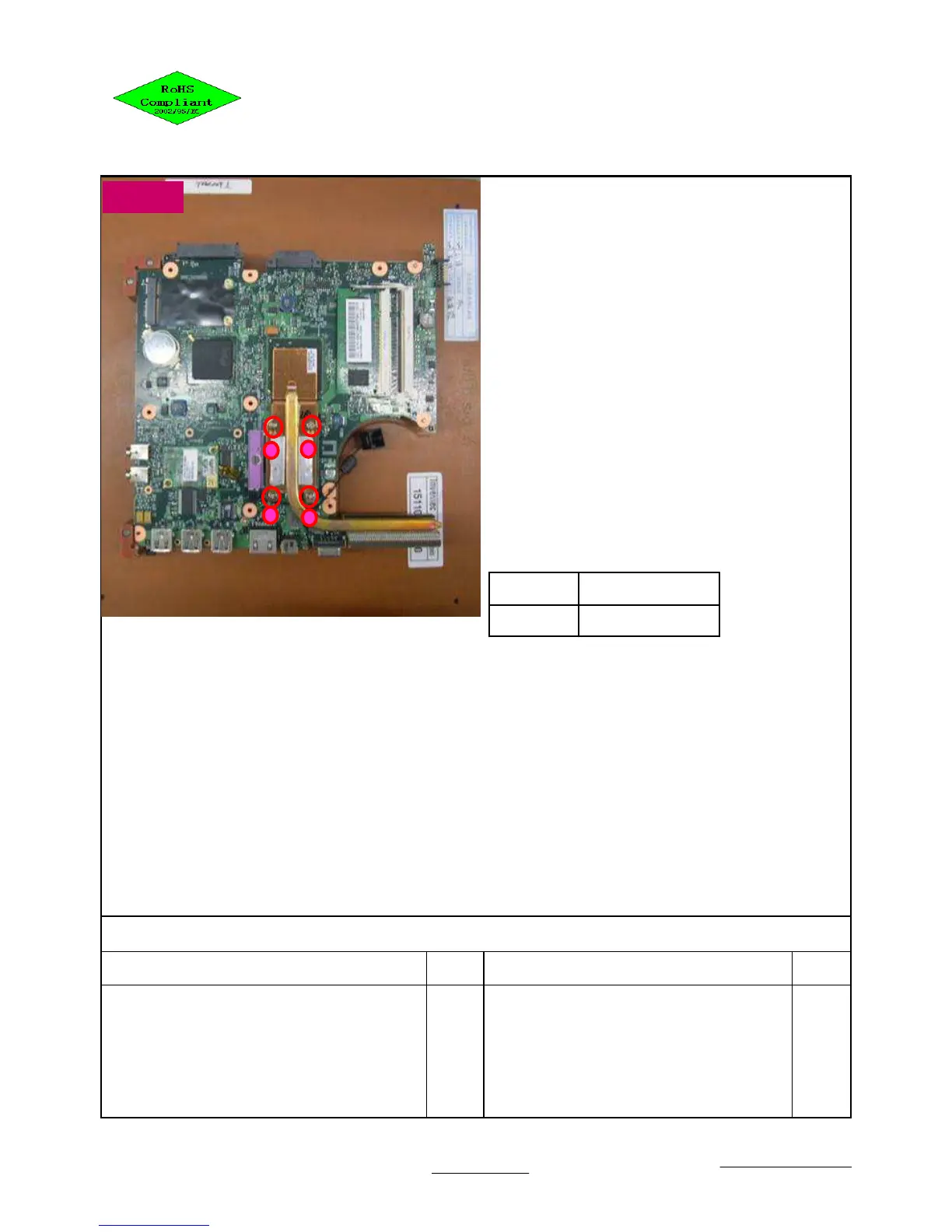

Fig.1
6043B0034801UMA
Part No.
For UMA MB
1
2
3
4
1.00
2007/7/20
Electric-hexagonal screwdriver 1
M/B fixture 1
