HP 541 - Page 51

Working Instruction
Document No. :SOP DDD FA Dis-ASS’Y Station
StationStation
Station：
：：
：___________
______________________
___________
Name
NameName
Name：
：：
： Ver
VerVer
Ver.
..
.：
：：
：_____
_____ _____
_____ Date
DateDate
Date：
：：
：___________
______________________
___________
Fixture List(Fixture standard) Qty Fixture List(Fixture standard) Qty
Tabulator：
Issuing department：
IE
Wang Fang
If finding some defects, notice the gaffer and assistant
Points for attention:
28(1/2)
CLOSED
OPEN
Flat screwdriver 1
Absorbing pen 1

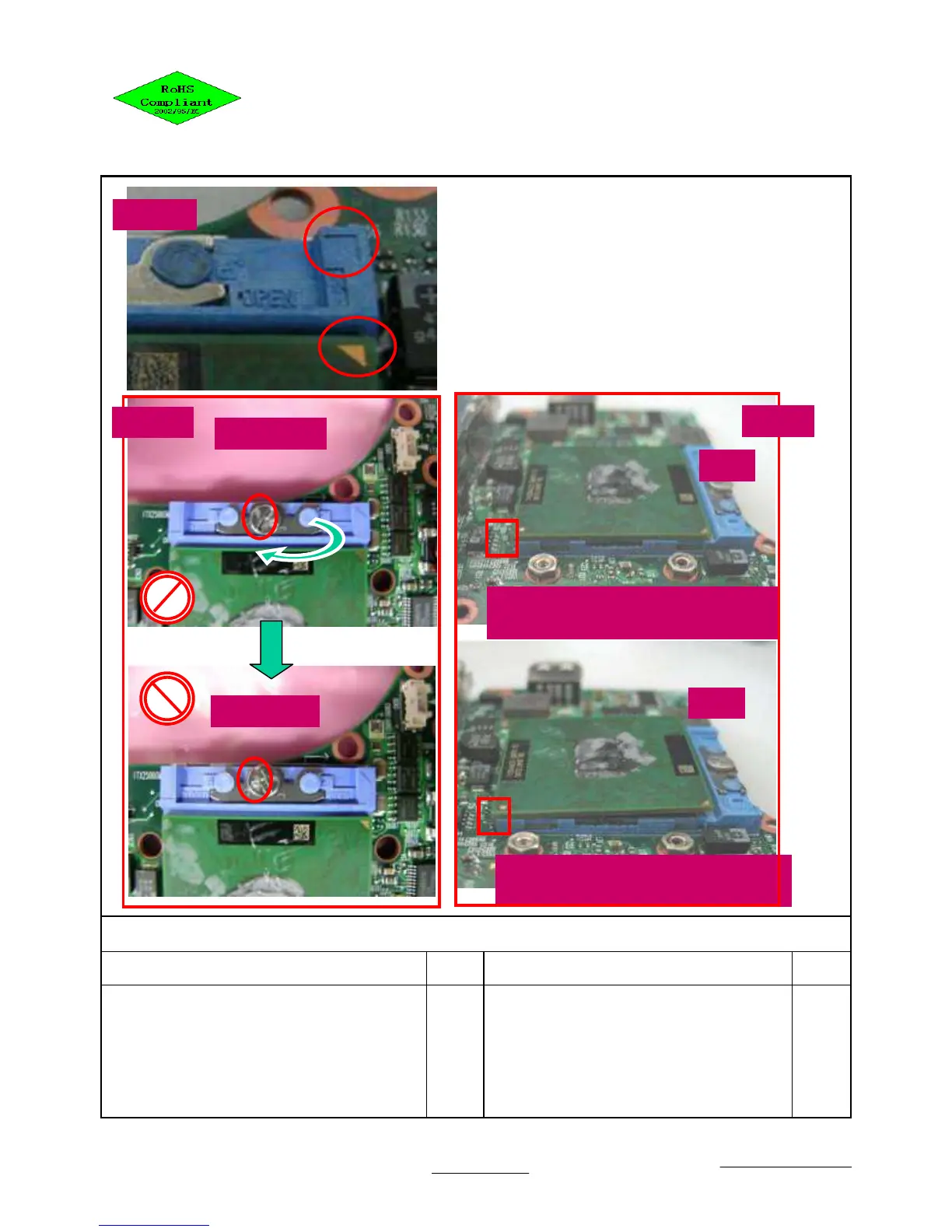

Disassemble CPU
Fig.1
Fig.2
OK
CPU is stuck on SOCKET
smoothly and completely
NG
CPU is inserted in SOCKET
incompletely
Fig.3
1.Put MB on supporting fixture.
2.Take down CPU from CPU SOCKET
(anticlockwise direction)
3.Absorb CPU with absorbing pen.
1.00
2007/7/20
