4.

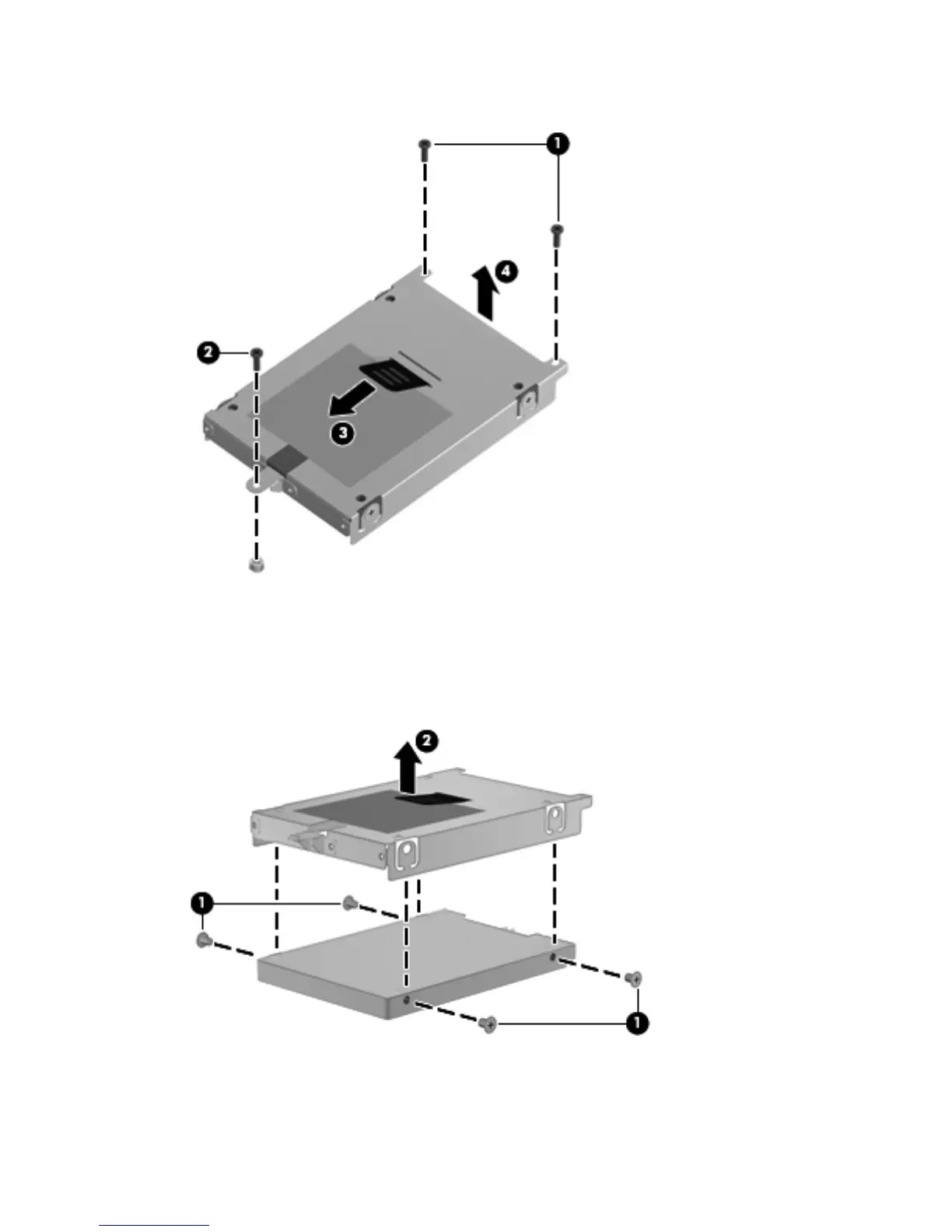

Remove the hard drive (4) from the hard drive bay.
To remove the hard drive bracket, follow these steps:
1. If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive
bracket screws (1) from each side of the hard drive.
2.
Lift the bracket (2) straight up to remove it from the hard drive.
It is necessary to attach rubber or foam bumpers to drives and/or hard drive brackets before installing
them in the computer.
56 Chapter 4 Removal and replacement procedures
