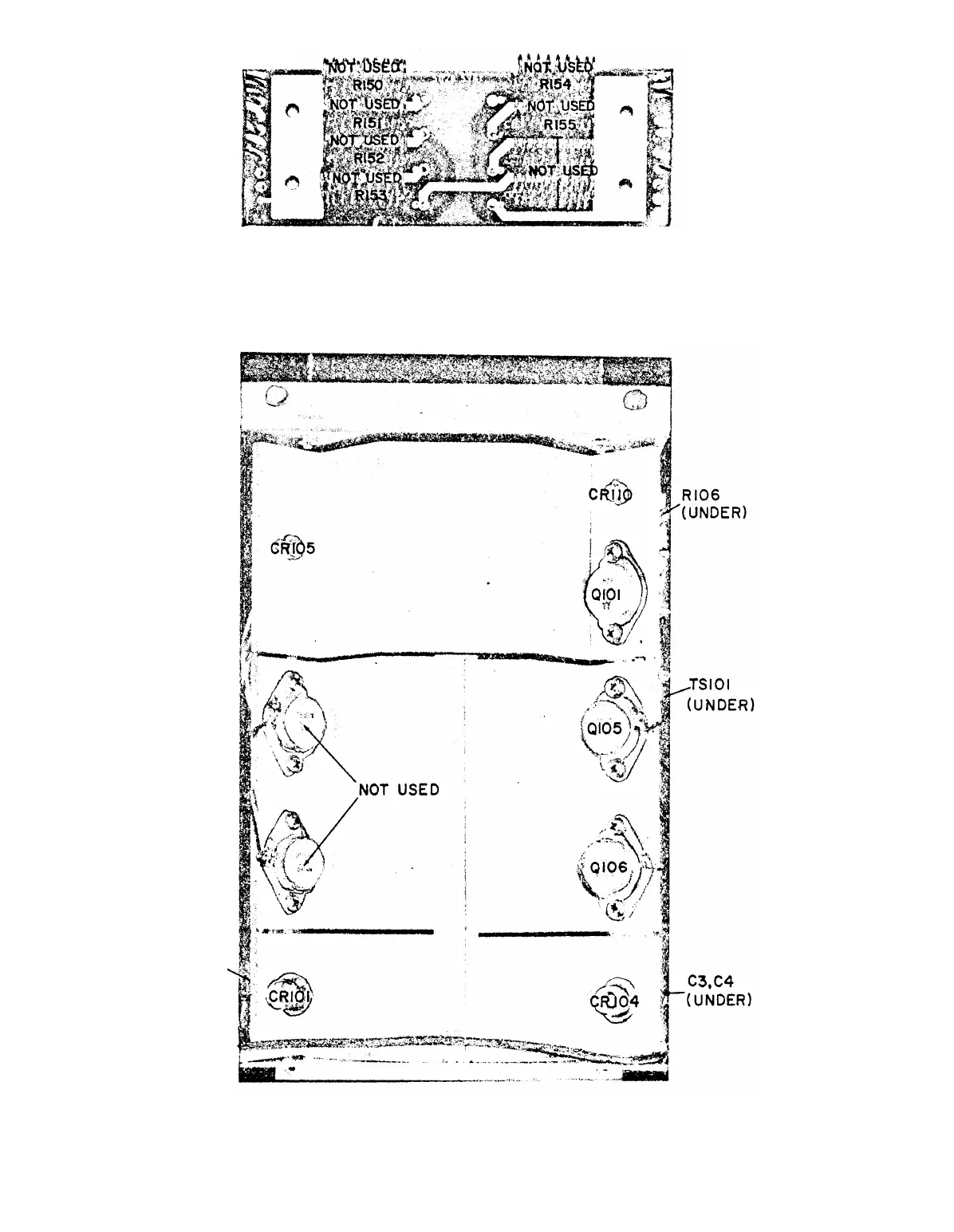

Figure 7-6. Series Regulator Emitter Resistor
Assembly Component Location Diagram
(Circuit board is part of A4 heat sink assembly.)
Figure 7-7.
A4 Heat Sink Assembly Component Location Diagram
(Top view, assembly removed from supply.)
7-6
TM 11-6625-2958-14&P
