SECTION
II
INSTALLATION
2-1
INITIAL INSPECTION
2-2
Before
shipment,
this
instrument
was
inspected
and
found
to
be
free
of
mechanical
and
electrical
defects.
As
soon
as
the
instrument
is
unpacked,
in-
spect
for
any
damage
that
may
have
occurred
in
transit.
Save
all.
packing
materials
until
the
inspec-
tion
is
completed.
If
damage
is
found.
proceed
as
described
in
the
Claim
for
Damage
in
Shipment
sec-
tion
of
the
warranty
page
at
the
rear
of
this
manual.
2-3
MECHANICAL
CHECK
2-4
This
check
should
confirm
that
there
are
no
broken
knobs
or
connectors,
that
the
cabinet
and
panel
surfaces
are
free
of
dents
and
scratches,
and
that
the
meter
is
not
scratched
or
cracked.
2-5
ELECTRICAL
CHECK
2-6
The
instrument
should
be
checked
against
its
electrical
specifications.
SectionV
includesan"in-
cabinet"
performance
check
to
verify
proper
instrument
operation.
2-7
INSTALLATION
DATA
2-8
The
instrument
is
shipped
ready
for
bench
operation.
It
is
necessary
only
to
connect
the
in-
strument
to
a
source
of
power
and
it
is
ready
for
operation.
2-9
LOCATION
2-10·
This
instrument
is
air
cooled.
Sufficient
space
should
be
allotted
so
that
a free flow
of
cooling
air
can
reacn
the
sides
anci
rear
of the
ins
trumenc
when
itis
inoperation.
It
should
be
used
in
an
area
where
the
ambient
temperature
does
not
exceed
sooc.
2-11
RACK
MOUNTING
2-12
This
instrument
may
be
rack
mounted
in
a
standard
19
inch
rack
panel
either
alongside
a
sim-
ilar
unit
or
by
itself.
Figures
2-1
and
2-2
show
how
both
types
of
installations
are
accomplished.
2-13
To
mount
two
units
side-by-side,
proceed
as
follows:
a.
Remove
the
four
screws
from
the
front
panels
of
both
units.
b.
Slide
rack
mounting
ears
between
the
front
panel
and
case
of
each
unit.
c.
Slide
combining
strip
between
the
front
panels
and
cases
of
the
two
units.
d. After
fastening
rear
portions
of
u_nits
to-
gether
using
the
bolt,
nut,
and
spacer,
replace
pan-
el-
screws
•
RAC!(
EM
-0
8
-0
....
--
-·
..
6el
-0
COllllNlltG
STlllP

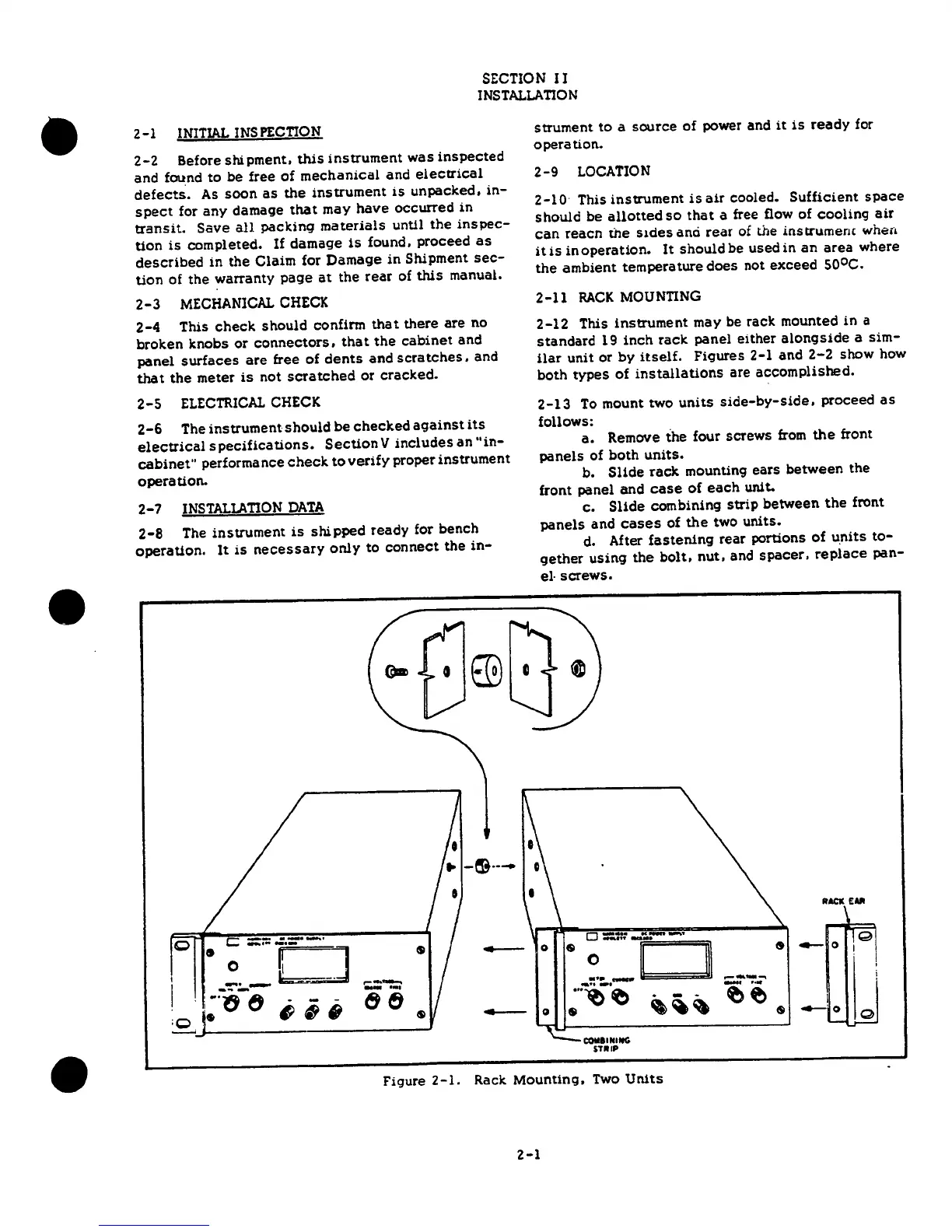

Figure
2-1.
Rack
Mounting,
Two
Units
2-1
-·
