HP 6296A - Page 16

I
Q
ti
0 •
r-¥0L.TACE-,
C.OAAS(
r1-.[
(j
(j
0
10
.1
•
....
0
c
I
cl
Q

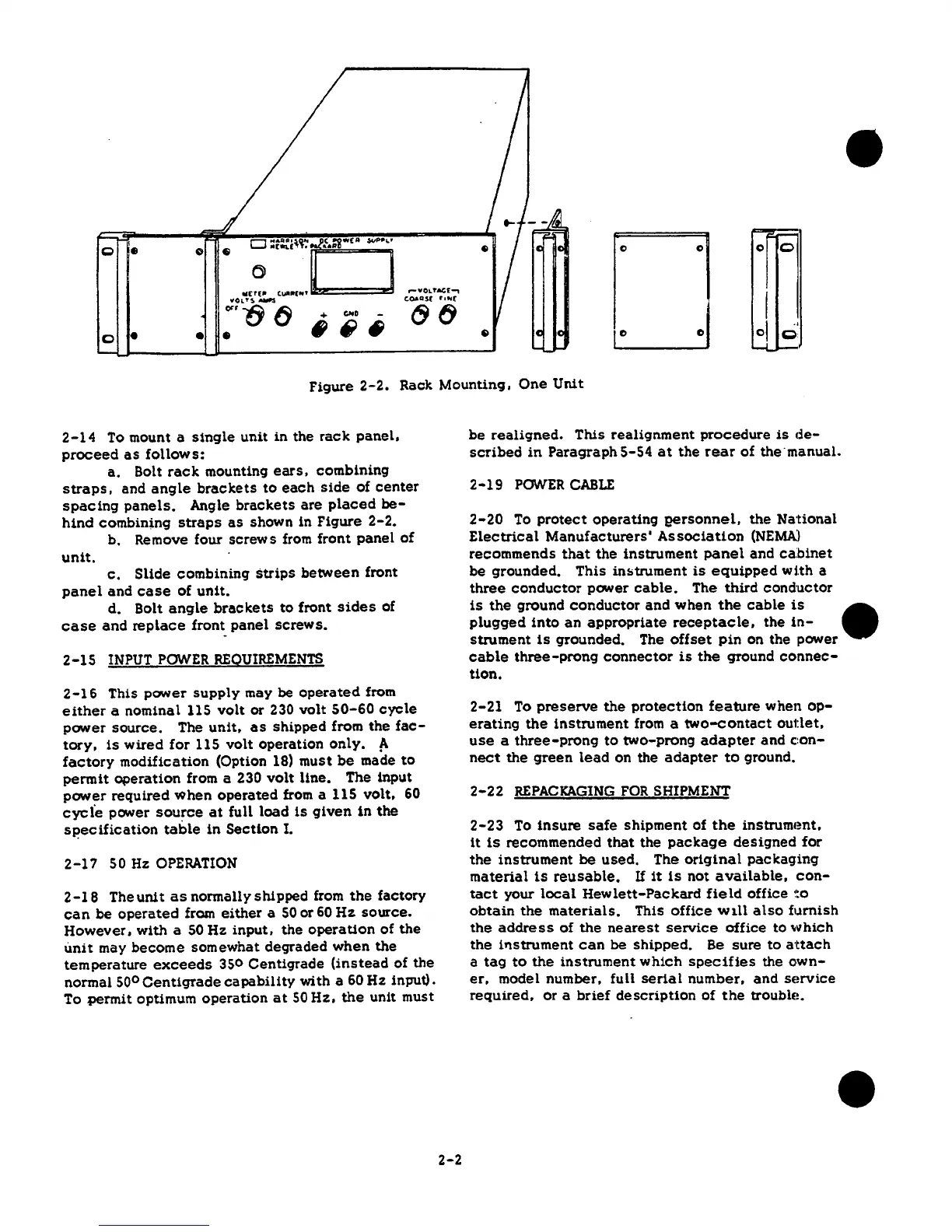

Figure
2-2.
Rack
Mounting,
One
Unit
2-14
To
mount a
single
unit
in
the
rack
panel,
proceed
as
follows:
a.
Bolt
rack
mounting
ears.
combining
straps,
and
angle
brackets
to
each
side
of
center
spacing
panels.
Angle
brackets
are
placed
be-
hind
combining
straps
as
shown in Figure
2-2.
b.
Remove four
screws
from
front
panel
of
unit.
c.
Slide
combining
strips
between
front
panel
and
case
of
unit.
d.
Bolt
angle
brackets
to
front
sides
of
case
and
replace
front
panel
screws.
2-15
INPUT
POWER
REQUIREMENTS
2-16
This
power
supply
may
be
operated
from
either
a nominal 115
volt
or
230
volt
50-60
cycle
power
source.
The
unit,
as
shipped
from
the
fac-
tory,
is
wired
for
115
volt
operation
only.
A
factory
modification
(Option 18) must
be
made
to
permit
operation
from a
230
volt
line.
The input
power
required
when
operated
from a
llS
volt,
60
cycie
power
source
at
full
load
is
given
in
the
s~ecification
table
in
Section
I.
2-17
SO
Hz
OPERATION
2-18
Theunit
as
normally
shipped
from
the
factory
can
be
operated
from
either
a
50
or
60
Hz
source.
However,
with a
50
Hz
input,
the
operation
of
the
unit
may
become
somewhat deqraded
when
the
temperature
exceeds
350
Centigrade
(instead
of
the
normal
soocentigrade
capability
with a
60
Hz input).
To
permit
optimum
operation
at
50
Hz,
the
unit must
2-2
be
realigned.
This
realignment
procedure
is
de-
scribed
in
Paragraph
5-54
at
the
rear
of
the·manual.
2-19
POWER
CABLE
2-20
To
protect
operating
gersonnel,
the
National
Electrical
Manufacturers'
Association
(NEMA)
recommends
that
the
instrument
panel
and
ca:binet
be
grounded.
This
in&trument
is
equiPped
with
a
three
conductor
p01Ner
cable.
The
third
cond·uctor
is
the
ground
conductor
and
when
the
cable
is
•
plugged
into
an
appropriate
receptacle,
the
in-
strument
is
grounded. The
offset
pin
on the power
cable
three-prong
connector
is
the
ground
connec-
tion.
2-21
To
preserve
the
protection
feature
when
op-
erating
the
instrument
from a
two-contact
outlet,
use
a
three-prong
to
two-prong
adapter
and
c:on-
nect
the
green
lead
on the
adapter
to
ground.
2-22
REPACKAGING
FOR
SHIPMENT
2-23
To
insure
safe
shipment
of
the
instrument,
it
is
recommended
that
the
package
designed
for
the
instrument
be
used.
The
original
packaging
material
is
reusable,
If
it
ls
not
available,
con-
tact
your
local
Hewlett-Packard
field
office
~:o
obtain
the
materials.
This
office
will
also
furnish
the
address
of
the
nearest
service
office
to
which
the
iT\strument
can
be
shipped.
Be
sure
to
attach
a
tag
to
the
instrument
which
specifies
the
o·wn-
er,
model number, full
serial
number,
and
SE~rvice
required,
or
a
brief
description
of
the
troublE!.
•
