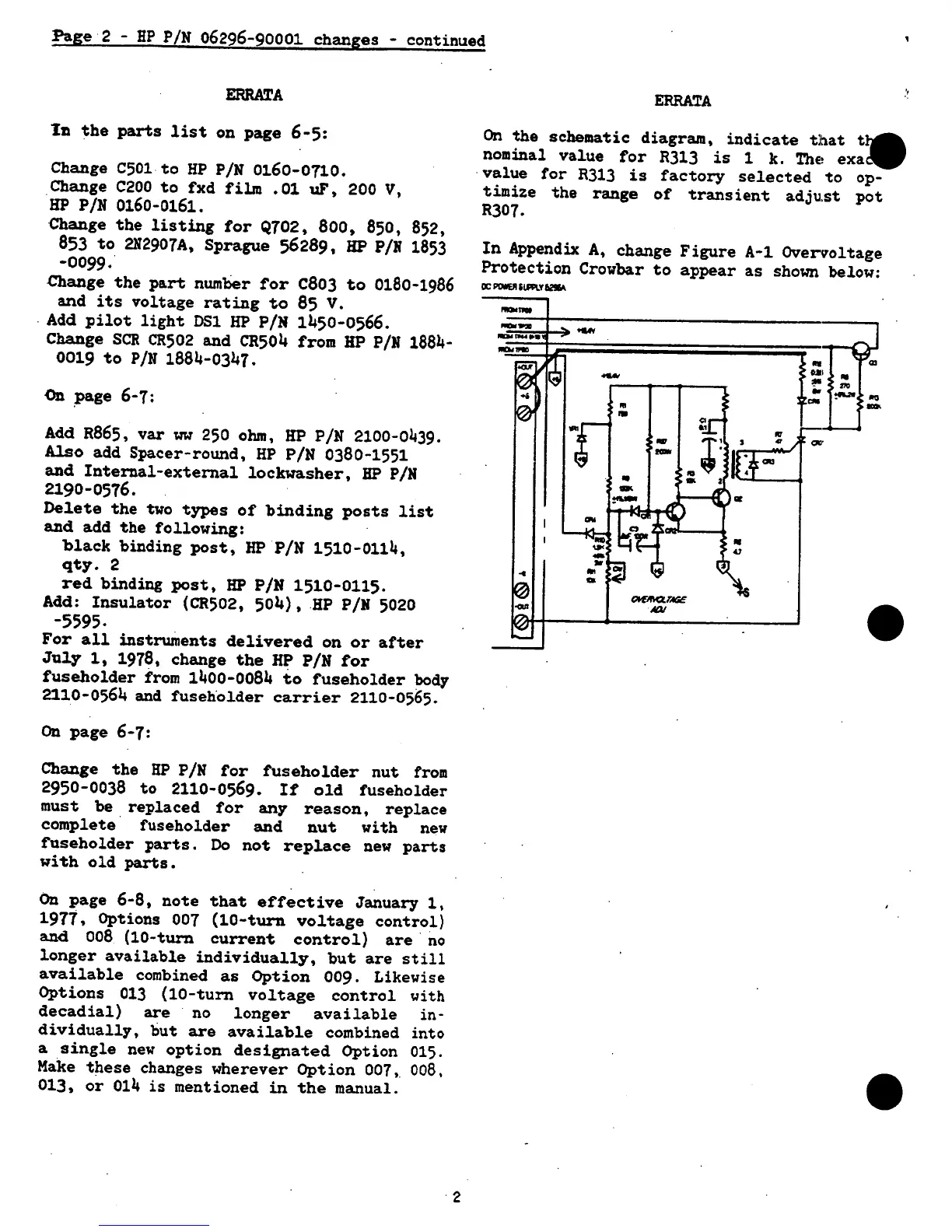

Page
2 -
HP
P/N
06296-90001
changes - continued
ERRATA
In
the
parts
list
on page
6-5:
Change
C501
to
HP
P/N
0160-0710.
Change
C200
to
fxd
film
.01
uF,
200
V,
HP
P/N
0160-0161.
Change
the
listing
for
Q702,
800,
850,
852,
853
to
2N2907A,
Sprague
56289,
HP
P/I
1853
-0099.·
.change
the
part
number
for
C803
to
0180-1986
and
its
voltage
rating
to
85
V
.
Add
pilot
light
DSl
HP
P/N
1450-0566.
Change
SCR
CR502
and
CR504
from
HP
P/N
1884-
0019
to
P/N
1884-0347.
en
,Page 6-T:
Add
R865,
var
ww
250
ohm,
HP
P/N
2100-0439.
Also
add
Spacer-round,
HP
P/N
0380-1551
and
Internal-external
lockwasher,
BP
P/H
2190-0576.
Delete
the
two
types
of
binding
posts
list
and
add
the
following:
black
binding
post,
HP
P/N
1510-0114,
qty.
2
red
binding
post,
HP
P/N
1510-0115.
Add:
Insulator
(CR502,
504),
.HP
P/H 5020
-5595.
For
all
instruments
delivered
on
or
after
July
1,
1978, change
the
HP
P/N
for
fuseholder
from 1400-0084
to
fuseholder
body
2110-0564
and fuseh.o1der
carrier
2110-0565.
On
page
6-7:
Change
the
HP
P/N
for
fuseholder
nut
from
2950-0038
to
2110-0569.
If'
old
fuseholder
must be
replaced
for
any
reason,
replace
complete
·
fuseholder
and
nut
with
new
fusebolder
parts.
Do
not
replace
new
parts
with
old
parts.
On
page
6-8,
note
that
effective
January
1.
1971,
Options 007
(10-turn
voltage
control)
and
008
(10-turn
current
control)
are
.
no
longer
available
individually,
but
are
still
available
combined
as
Option
009.
Likewise
Options
013
(10-turn
voltage
control
with
decadial)
are
·
no
longer
available
in-
dividually,
but
are
available
combined
into
a
single
new
option
designated
Option
015.
Make
these
changes
wherever
Option
007
•.
008,
013,
or
014
is
mentioned
in
the
manual.
2
ERRATA
On
the
schematic
diagram,
indicate
tbat
t.
nominal
value
for
R313
is
1
k.
ThE!
exa
·value
for
R313
is
factory
selected
to
op-
timize
the
range
of
transient
adj\l.st
pot
R307.
In
Appendix
A,
change
Figure
A-1
Overvoltage
Protection
Crowbar
to
appear
as
shown
below:
DC
POWEii
Sll'Pl.Y
62-...
