HP 630 - Page 80

b.

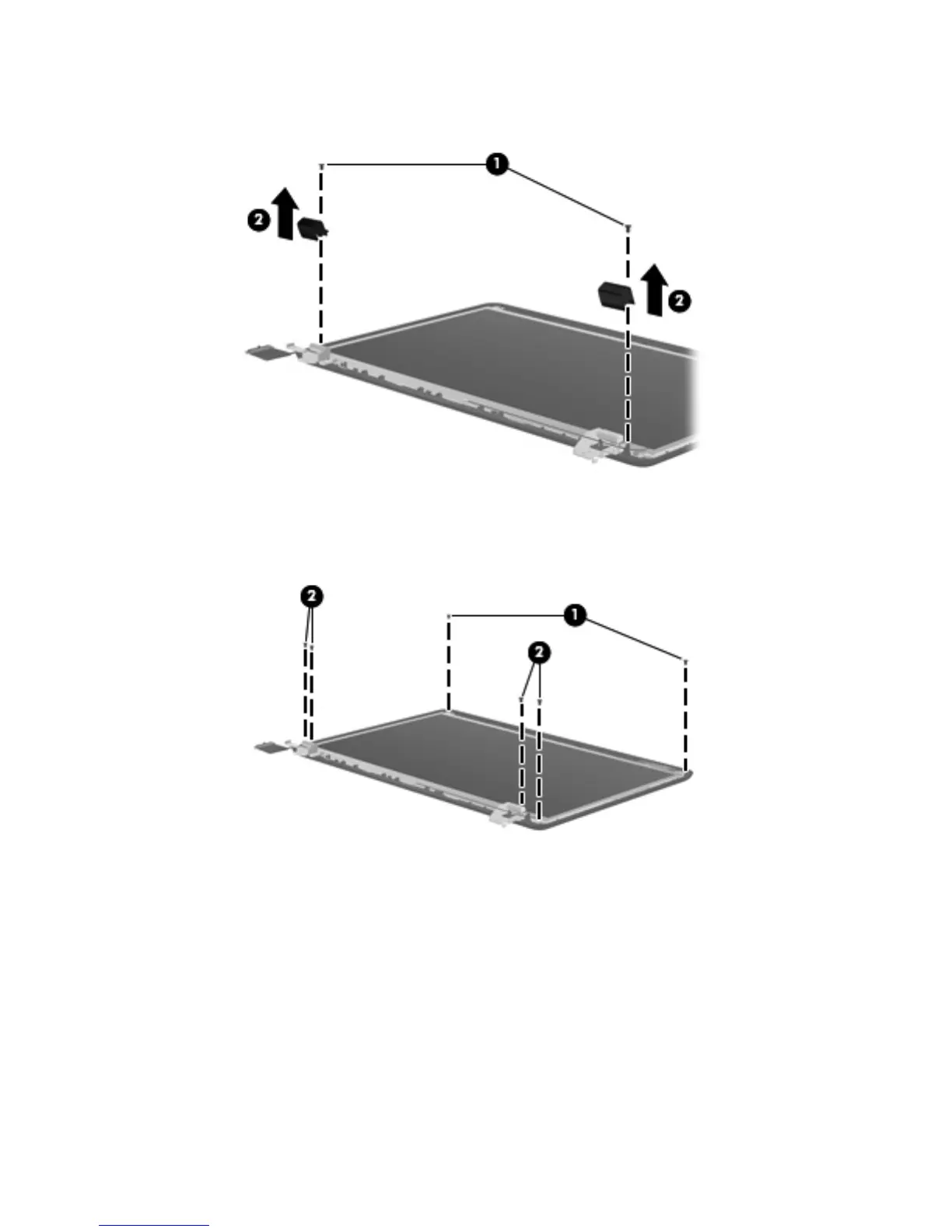

Remove the hinge covers (2). The hinge covers are available using spare part number
646124-001.
8. If it is necessary to replace the display panel:
a. Remove the two Phillips PM2.5×4.0 screws (1) and four Phillips PM2.5×5.0 screws (2) that
secure the display panel to the display enclosure.
Component replacement procedures
71
