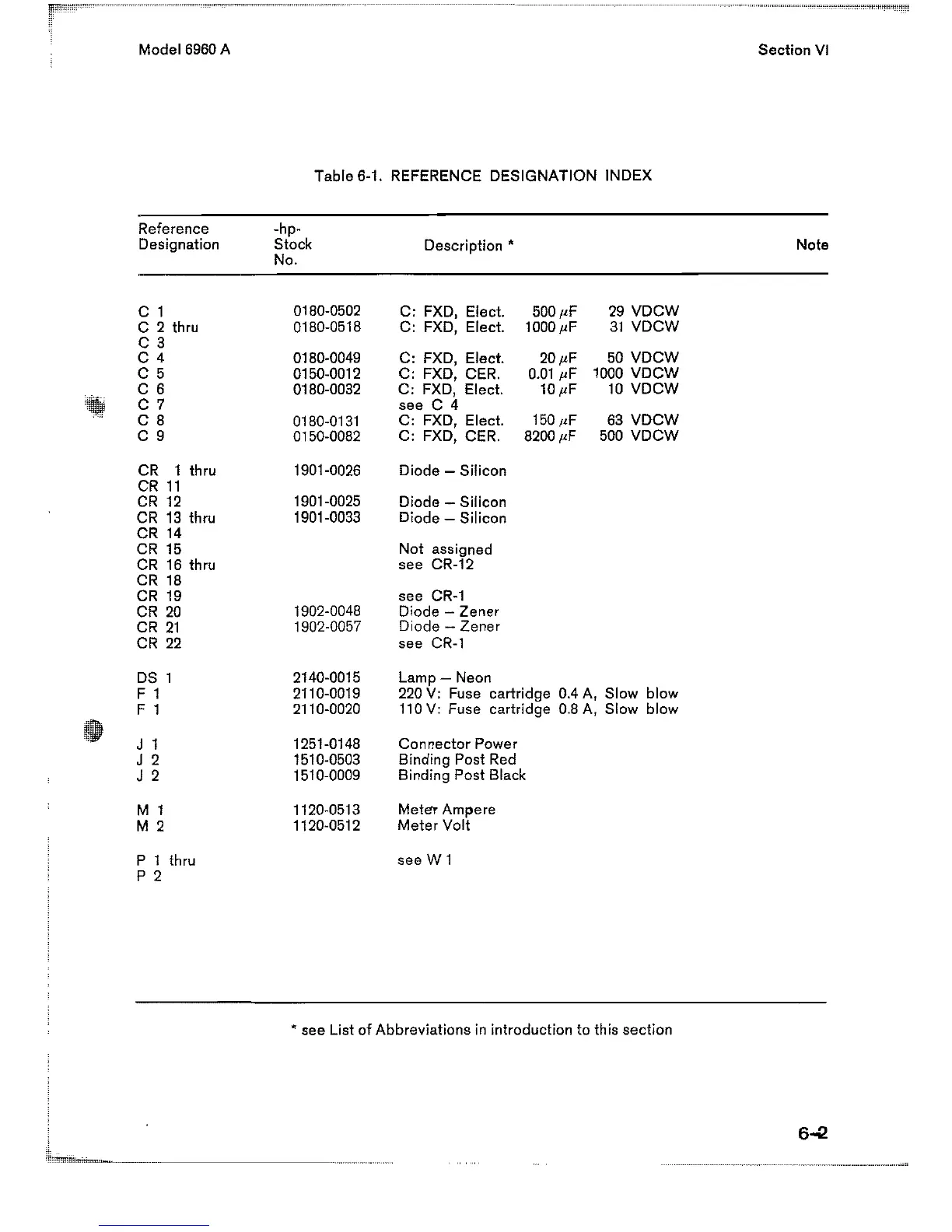

Model 6960 A Section VI
Table 6-1. REFERENCE DESIGNATION INDEX
Reference -hp-
Designation Stock
Description'
Note
No.
C 1
0180-0502
C: FXD, Elect.
500"F
29 VDCW
C 2 thru
0180-0518
C: FXD, Elect. 1000 flF
31 VDCW
C 3
C4
0180-0049
C: FXD, Elect.
20 flF
50 VDCW
C 5
0150-0012 C: FXD,
CER.
0.D1 flF
1000
VDCW
C 6
0180-0032 C: FXD, Elect.
10 flF
10 VDCW
'.
C 7
see C 4
C 8
0180-0131
C: FXD, Elect.
1501,F
63 VDCW
C 9
0150-0082
C: FXD, CER.
8200 flF
500 VDCW
CR 1 thru
1901-0026
Diode - Silicon
CR 11
CR 12
1901-0025 Diode - Silicon
CR 13 thru
1901-0033 Diode - Silicon
CR
14
CR 15
Not assigned
CR
16 thru
see CR-12
CR
18
CR 19
see CR-l
CR 20
1902-0048 Diode - Zener
CR 21
1902-0057
Diode - Zener
CR 22 see CR-1
OS 1
2140-0015
Lamp- Neon
F 1
2110-0019 220 V: Fuse cartridge 0.4 A, Slow blow
F 1
2110-0020
110 V: Fuse cartridge 0.8 A, Slow blow
•
t:;·
J 1
1251-0148
Connector Power
J 2 1510-0503
Binding Post
Red
J 2
1510-0009 Binding Post Black
M 1 1120-0513
Meter Ampere
M 2
1120-0512
Meter Volt
P 1 thru
see W 1
P 2
• see List
of Abbreviations in introduction to this section
