HP 6960A - Reference Designator Index

Model 6960 A

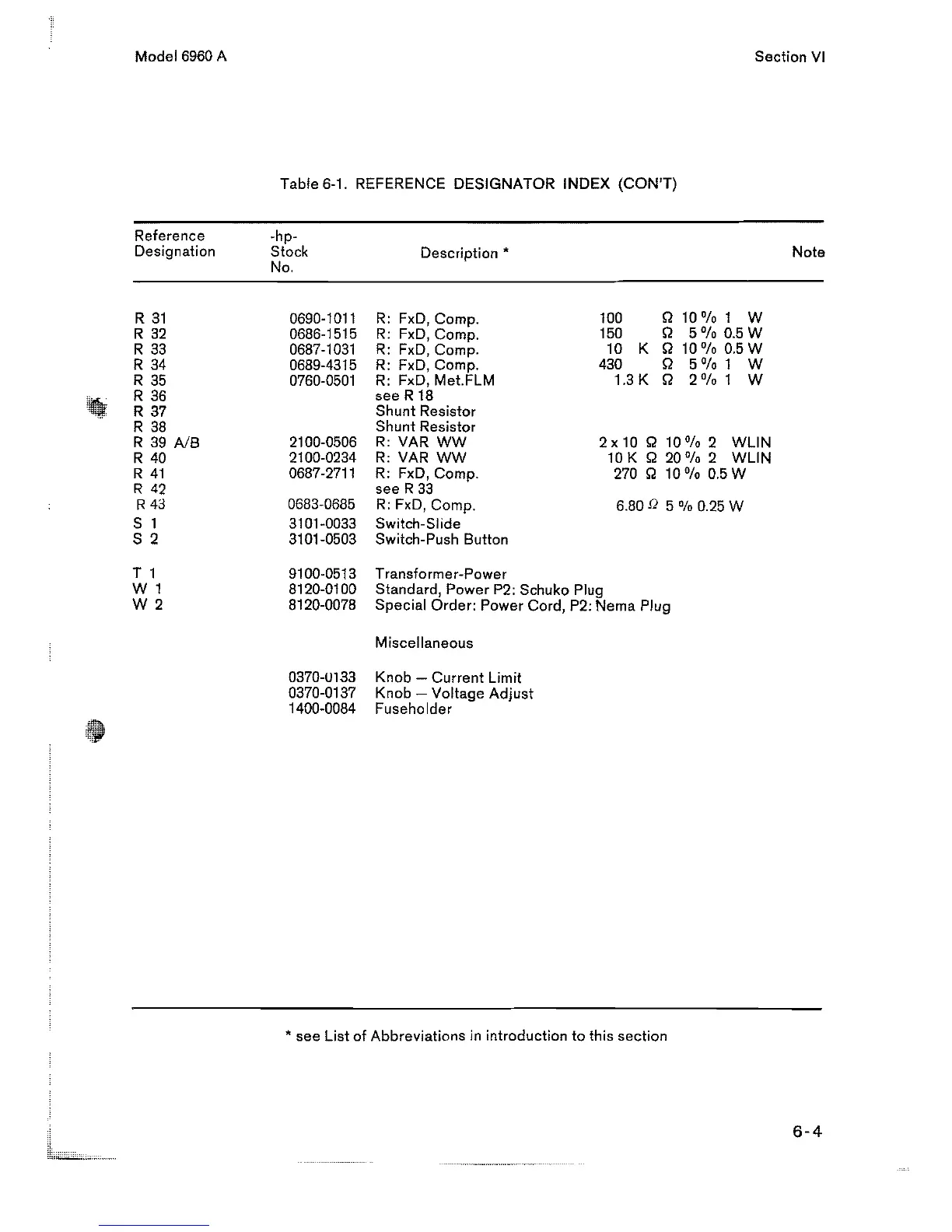

Table 6-1. REFERENCE DESIGNATOR INDEX (CON'T)
Section VI
Reference
Designation
R 31
R 32
R 33
R 34
R 35
R 36
R 37
R 38
R 39 AlB
R 40
R 41
R 42
R 43
S 1
S 2
T 1
Wl
W2
-hp-
Stock
Description'
Note
No.
0690-1011 R: FxD, Compo
100
Q
10'10 1
W
0686-1515
R: FxD, Compo 150
Q
5'10 0.5 W
0687-1031 R: FxD, Compo 10 K
Q
10'10 0.5 W
0689-4315 R: FxD, Compo 430
Q
5'10 1 W
0760-0501 R: FxD, Met.FLM 1.3 K
Q
2'10 1
W
see R 18
Shunt Resistor
Shunt Resistor
2100-0506
R: VAR WW
2x 10 Q 10'10 2 WLiN
2100-0234 R: VAR WW 10 K Q 20'10 2
WLiN
0687-2711 R: FxD, Compo 270 Q 10'10 0.5 W
see R 33
0683-0685
R: FxD, Compo
6.80 Q 5 % 0.25 W
3101-0033 Switch-Slide
3101-0503 Switch-Push Button
9100-0513 Transformer-Power
8120-0100 Standard, Power P2: Schuko Plug
8120-0078 Special Order: Power Cord, P2: Nema Plug
Miscellaneous
0370-U133
0370-0137
1400-0084
Knob - Current Limit
Knob - Voltage Adjust
Fuseholder
• see List of Abbreviations in introduction to this section
