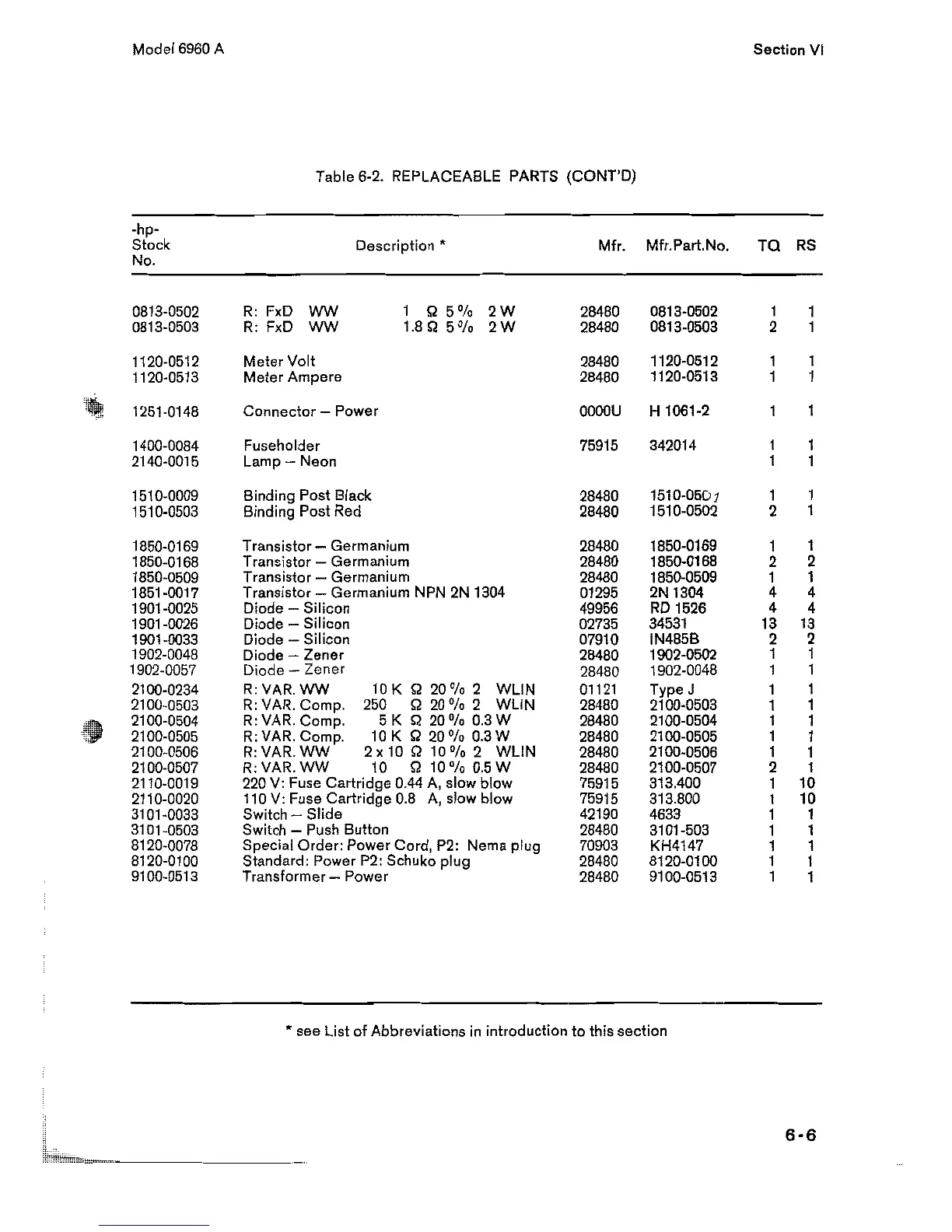

HP 6960A - Page 33

Model 6960 A
Section VI
Table 6-2. REPLACEABLE PARTS
(CO NT'D)
-hp-
Stock
Description' Mfr. Mfr.Part.No.
TO
RS
No.
0813-0502
R: FxD
WW
1 Q 5%
2W 28480
0813-0502 1 1
0813-0503
R: FxD WW
1.8 Q 5%
2W
28480
0813-0503
2
1
1120-0512
Meter Volt 28480
1120-0512
1
1
1120-0513
Meter Ampere
28480
1120-0513
1 1
"It
,
1251-0148
Connector - Power
OOOOU
H 1081-2 1
1
' .. ::;;
1400-0084
Fuseholder
75915
342014 1
1
2140-0015
Lamp- Neon 1
1
1510-0009
Binding Post Black
28480
1510-0501 1
1
1510-0503
Binding Post Red 28480
1510-0502
2
1
1850-0169
Transistor - Germanium
28480
1850-0169 1
1
1850-0168
Transistor - Germanium
28480
1850-0168
2
2
1850-0509
Transistor - Germanium
28480 1850-0509 1
1
1851-0017
Transistor - Germanium NPN 2N 1304
01295
2N 1304 4
4
1901-0025
Diode - Silicon
49956
RD 1526 4
4
1901-0026
Diode -
Silicon 02735
34531
13
13
1901-0033
Diode -
Silicon 07910 IN485B 2
2
1902-0048
Diode - Zener 28480
1902-0502
1 1
1902-0057
Diode -
Zener
28480
1902-0048 1
1
2100-0234
R:VAR. WW 10 K Q 20% 2
WLiN 01121
Type J
1
1
2100-0503
R: VAR. Compo 250 Q 20% 2 WLiN
28480
2100-0503
1
1
•
2100-0504
R: VAR. Compo 5K Q 20% 0.3W 28480 2100-0504
1
1
2100-0505
R: VAR. Compo
10 K Q 20% 0.3W
28480 2100-0505 1 1
2100-0506 R: VAR. WW
2xl0 Q 10% 2 WLiN
28480
2100-0506
1 1
2100-0507
R:VAR.WW 10 Q 10% 0.5W
28480
2100-0507 2 1
2110-0019
220 V: Fuse Cartridge 0.44 A, slow blow
75915
313.400
1 10
2110-0020
110 V: Fuse Cartridge 0.8 A, slow blow 75915 313.800
1
10
3101-0033
Switch -
Slide 42190 4633 1 1
3101-0503
Switch - Push Button
28480
3101-503
1
1
8120-0078
Special Order: Power Cord, P2: Nema plug
70903
KH4147
1
1
8120-0100
Standard: Power P2: Schuko plug
28480
8120-0100
1 1
9100-0513
Transformer - Power
28480 9100-0513 1 1
• see List
of Abbreviations in introduction to this section
6·6
