Model 6960 A
REGULATED OUTPUT:
LOAD REGULATION:
LINE REGULATION:
RIPPLE AND NOISE:
TEMPERATURE STABILITY:
TEMPERATURE RANGE:
OUTPUT IMPEDANCE:
RECOVERY TIME:
METER ACCURACY:
OVERLOAD PROTECTION:
OUTPUT TERMINALS:
REMOTE PROGRAMMI
NG:
POWER:
DIMENSIONS:
WEIGHT:
1-0
Specifications

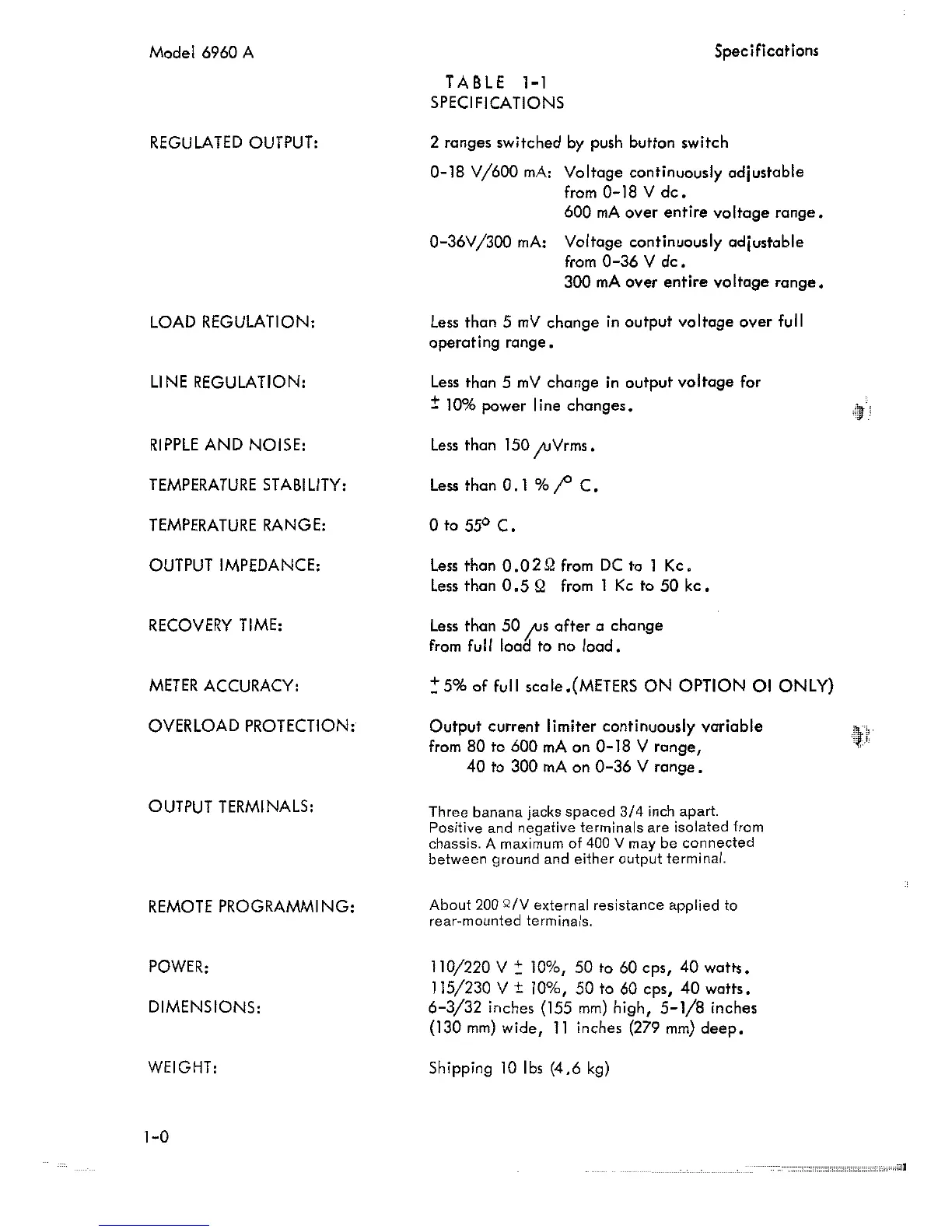

TABLE 1-1
SPECI FICA TlONS
2 ranges switched by push button switch
0-18 V/600 mA: Voltage cantinuously adjustable
from 0-18 V dc.
600 mA over entire valtage range.
0-36V/3OO mAl Voltage continuously adjustable
from 0-36 V dc.
300 mA over entire voltage range.
Less than 5 mV change in output voltage over full
aperat i ng range.
Less than 5 mV change in output voltage for
±10% power line changes.
Less than 150 ;U Vrms •
Less than O. 1 %;0 C.
Ot055
0
C.
Less than 0.02 Q from DC to 1 Kc.
Less than 0.5 Q from 1 Kc to 50 kc.
Less than 50 fJs after a change
from full 10aCl to no load.
~ 5% of full scole.(METERS ON OPTION 01 ONLY)
Output current I imiter continuously variable
from 80 to 600 mA on 0-18 V range,
40 to 300 mA on 0-36 V range.
Three banana jacks spaced 3/4 inch apart.
Positive and negative terminals are isolated from
chassis. A maximum of
400 V may be connected
between ground and either output terminal.
About
200 Q/V external resistance applied to
rear-mounted terminals.
110/220 V :: 10%, 50 to 60 cps, 40 watts.
115/230 V ± 10%, 50 to 60 cps, 40 watts.
6-3/32 inches (155 mm) high, 5-1/8 inches
(130
mm) wide, 11 inches (279 mm) deep.
Shipping 10 Ibs (4.6 kg)
