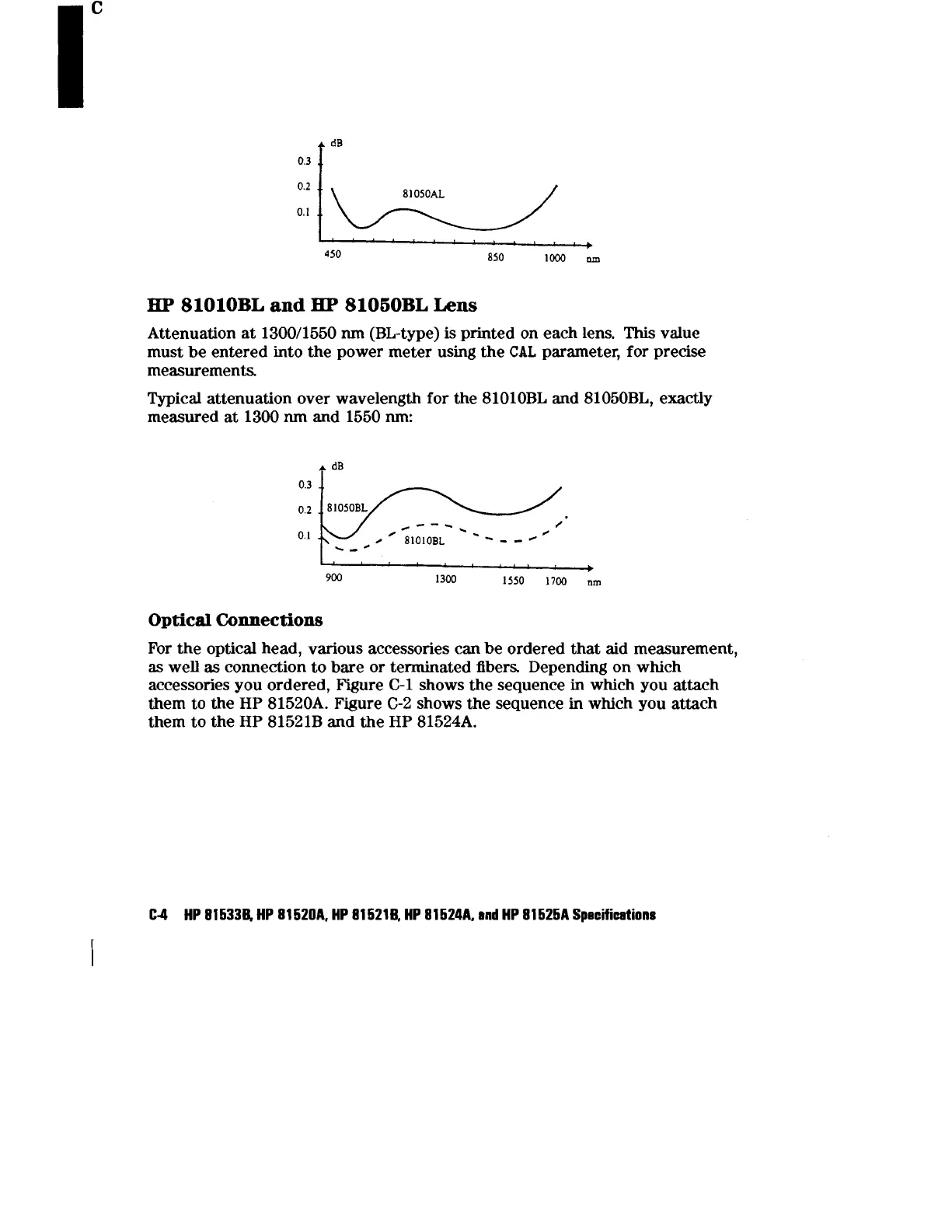

HP
81010BL
and
HP
81050BL
Lens
Attenuation at
130011550
nm
(BL-type)
is printed on each lens. This value
must be entered into the power meter using the
CAL
parameter, for precise
measurements.
Typical attenuation over wavelength for the
81010BL
and
81050BL,
exactly
measured at
1300
nm
and
1550
nm:
Optical Connections
For the optical head, various accessories can be ordered that aid measurement,
as
well as connection to bare or terminated fibers. Depending on which
accessories you ordered, Figure
C-1
shows the sequence
in
which you attach
them to the HP
81520A.
Figure
C-2
shows the sequence in which you attach
them to the HP
81521B
and the HP
81524A.
C4
HP 815338. HP 81520A. HP 815218. HP 81524A.
and
HP 815258
Specifications
