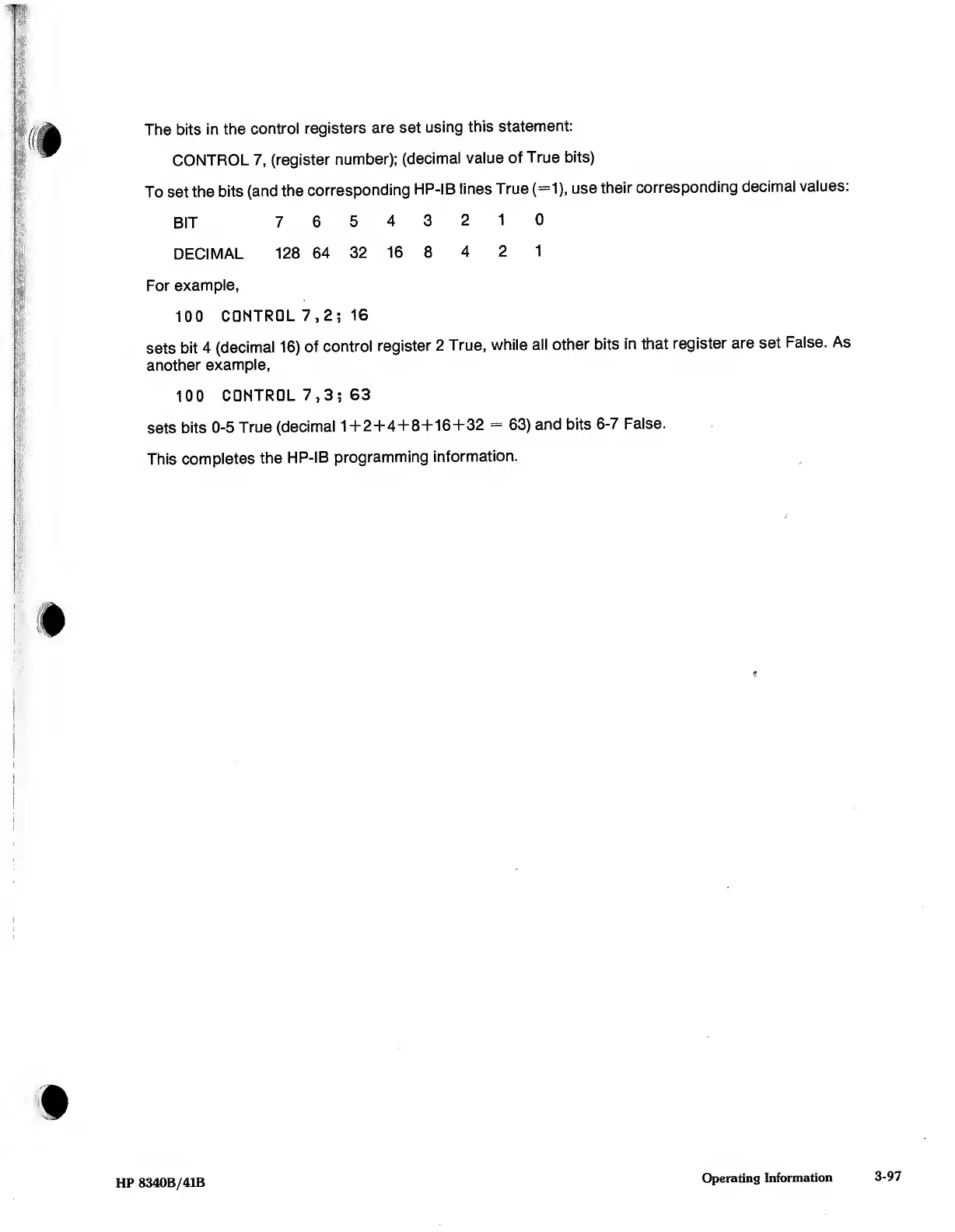

The bits in the control registers are set using this statement:
CONTROL 7, (register number); (decimal value of True bits)
To set the bits (and the corresponding HP-IB lines True (=1), use their corresponding decimal values:
BIT 7 6 5 4 3 2 1 0
DECIMAL 128 64 32 16 8 4 2 1
For example,
100 CONTROL 7,2; 16
sets bit 4 (decimal 16) of control register 2 True, while all other bits in that register are set False. As
another example,
100 CONTROL 7,3; 63
sets bits 0-5 True (decimal 1+2+4+8+16+32 = 63) and bits 6-7 False.
This completes the HP-IB programming information.
HP 8340B/41B
Operating Information
3-97
