HP
8755C
Interface/Cable
DESCRIPTION
The
HP
8755C
Scalar
Network
Analyzer
is
connected
to
the
HP
8340B/41B
at
this
connector.
Rear
Panel
Connector
Interface
Cable
87
5
SC
ALT
SWP
INTERFACE
Connect
the
HP
8755C
Scalar
Network
Analyzer
to
the
HP
8340B/41B
at
this
connector,
using
Inter¬
face
Cable
8120-3174,
to
provide
the
alternate
sweep
function.
An
Operating
Guide
at
the
end
of
Section
III
explains
the
HP
8755C
to
HP
8340B/41B
interconnections.
The
pin
configuration
and
electrical
requirements
for
this
connector
are
described
in
Section
VIII
(Service)
of
this
Manual.

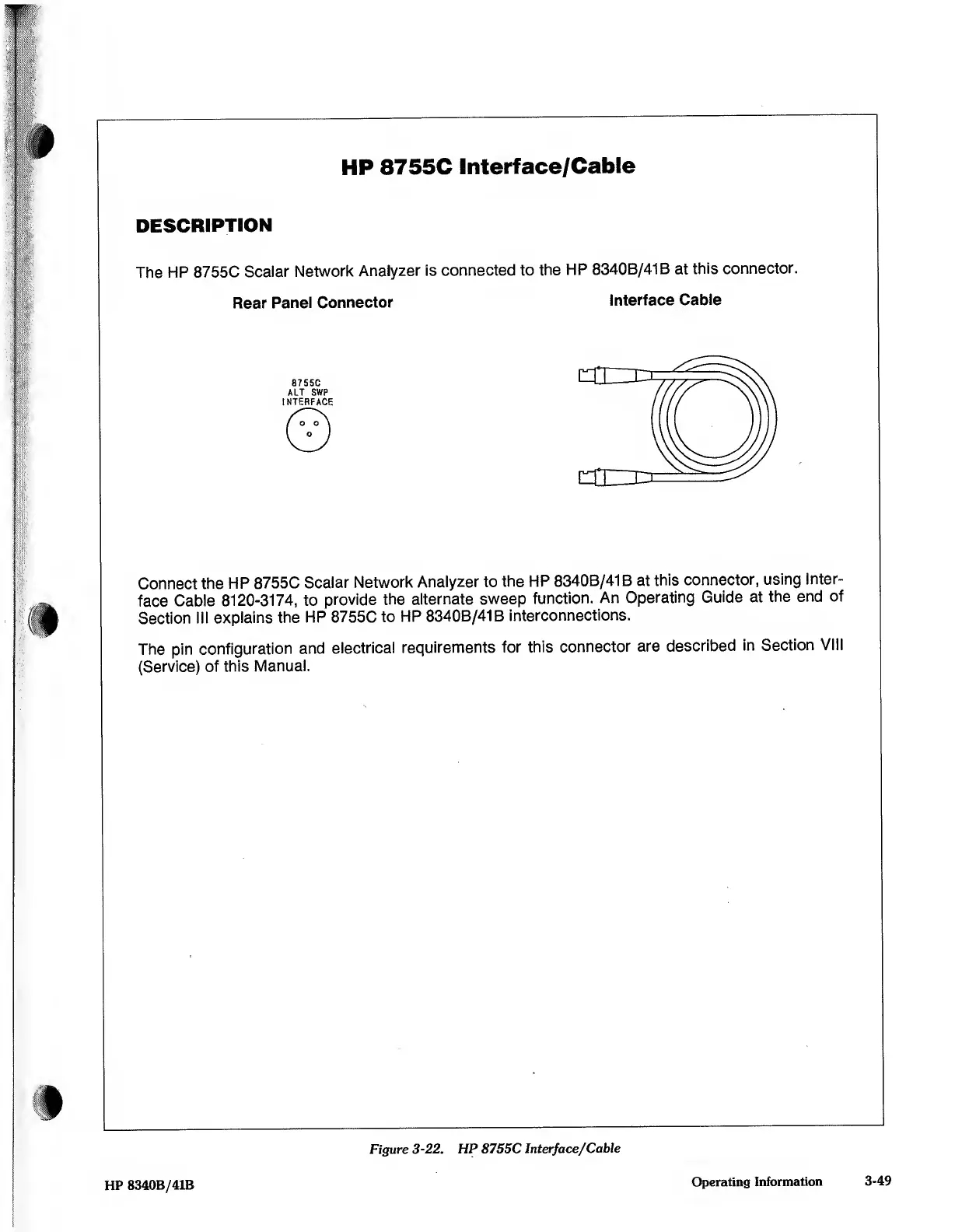

Figure
3-22.
HP
8755C
Interface/Cable
HP
8340B/41B
Operating
Information
3-49
