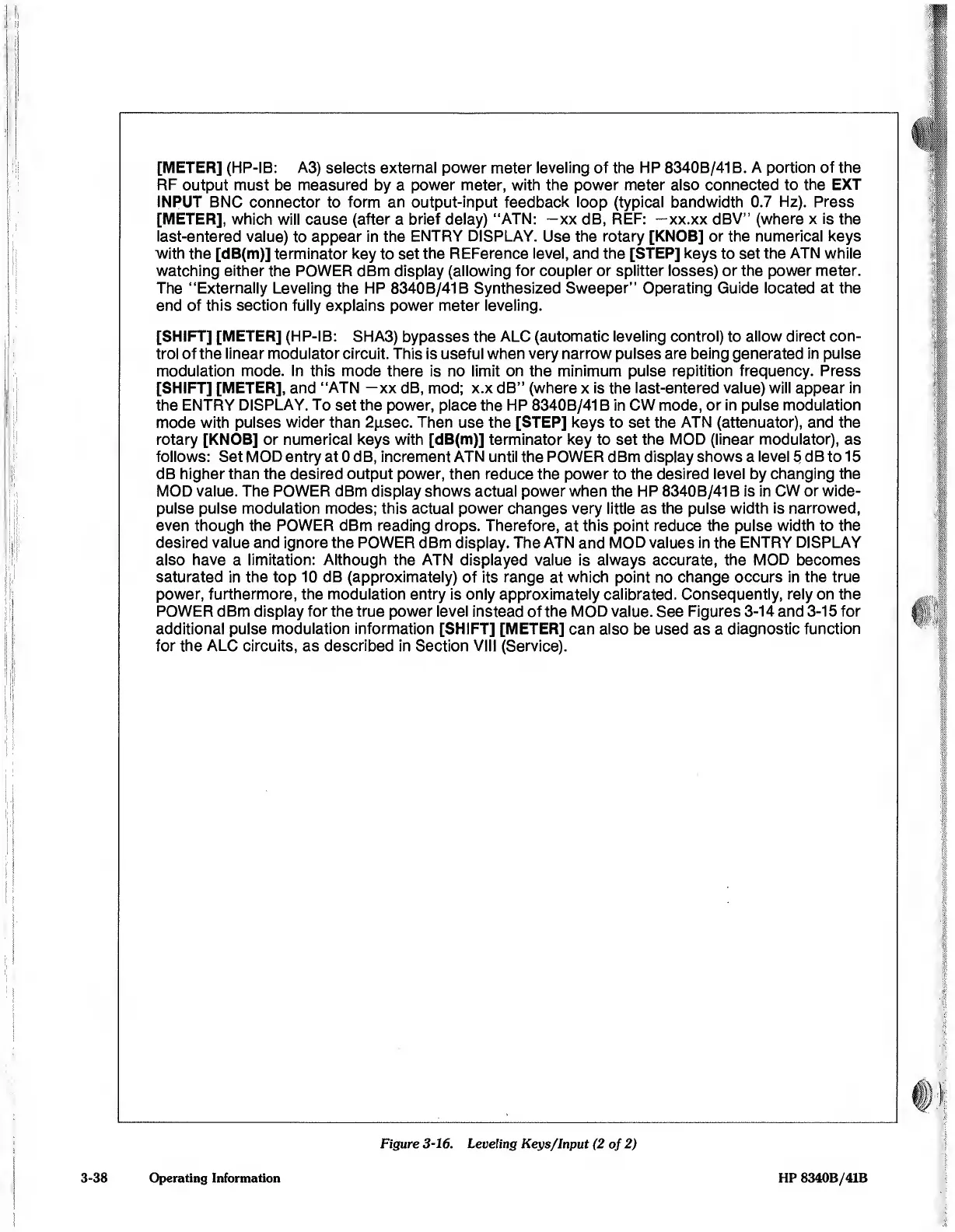

[METER]
(HP-IB:
A3)
selects
external
power
meter
leveling
of
the
HP
8340B/41B.
A
portion
of
the
RF
output
must
be
measured
by
a
power
meter,
with
the
power
meter
also
connected
to
the
EXT
INPUT
BNC
connector
to
form
an
output-input
feedback
loop
(typical
bandwidth
0,7
Hz).
Press
[METER],
which
will
cause
(after
a
brief
delay)
“ATN:
—xx
dB,
REF:
—xx.xx
dBV”
(where
x
is
the
last-entered
value)
to
appear
in
the
ENTRY
DISPLAY.
Use
the
rotary
[KNOB]
or
the
numerical
keys
with
the
[dB(m)]
terminator
key
to
set
the
REFerence
level,
and
the
[STEP]
keys
to
set
the
ATN
while
watching
either
the
POWER
dBm
display
(allowing
for
coupler
or
splitter
losses)
or
the
power
meter.
The
“Externally
Leveling
the
HP
8340B/41B
Synthesized
Sweeper’’
Operating
Guide
located
at
the
end
of
this
section
fully
explains
power
meter
leveling.
[SHIFT]
[METER]
(HP-IB:
SHA3)
bypasses
the
ALC
(automatic
leveling
control)
to
allow
direct
con¬
trol
of
the
linear
modulator
circuit.
This
is
useful
when
very
narrow
pulses
are
being
generated
in
pulse
modulation
mode.
In
this
mode
there
is
no
limit
on
the
minimum
pulse
repitition
frequency.
Press
[SHIFT]
[METER],
and
“ATN
—xx
dB,
mod;
x.x
dB’’
(where
x
is
the
last-entered
value)
will
appear
in
the
ENTRY
DISPLAY.
To
set
the
power,
place
the
HP
8340B/41B
in
CW
mode,
or
in
pulse
modulation
mode
with
pulses
wider
than
2|isec.
Then
use
the
[STEP]
keys
to
set
the
ATN
(attenuator),
and
the
rotary
[KNOB]
or
numerical
keys
with
[dB(m)]
terminator
key
to
set
the
MOD
(linear
modulator),
as
follows:
Set
MOD
entry
at
0
dB,
increment
ATN
until
the
POWER
dBm
display
shows
a
level
5
dB
to
15
dB
higher
than
the
desired
output
power,
then
reduce
the
power
to
the
desired
level
by
changing
the
MOD
value.
The
POWER
dBm
display
shows
actual
power
when
the
HP
8340B/41B
is
in
CW
or
wide-
pulse
pulse
modulation
modes;
this
actual
power
changes
very
little
as
the
pulse
width
is
narrowed,
even
though
the
POWER
dBm
reading
drops.
Therefore,
at
this
point
reduce
the
pulse
width
to
the
desired
value
and
ignore
the
POWER
dBm
display.
The
ATN
and
MOD
values
in
the
ENTRY
DISPLAY
also
have
a
limitation:
Although
the
ATN
displayed
value
is
always
accurate,
the
MOD
becomes
saturated
in
the
top
10
dB
(approximately)
of
its
range
at
which
point
no
change
occurs
in
the
true
power,
furthermore,
the
modulation
entry
is
only
approximately
calibrated.
Consequently,
rely
on
the
POWER
dBm
display
for
the
true
power
level
instead
of
the
MOD
value.
See
Figures
3-14
and
3-15
for
additional
pulse
modulation
information
[SHIFT]
[METER]
can
also
be
used
as
a
diagnostic
function
for
the
ALC
circuits,
as
described
in
Section
VIII
(Service).
Figure
3-16.
Leveling
Keys/Input
(2
of
2)
Operating
Information
HP
8340B/41B
