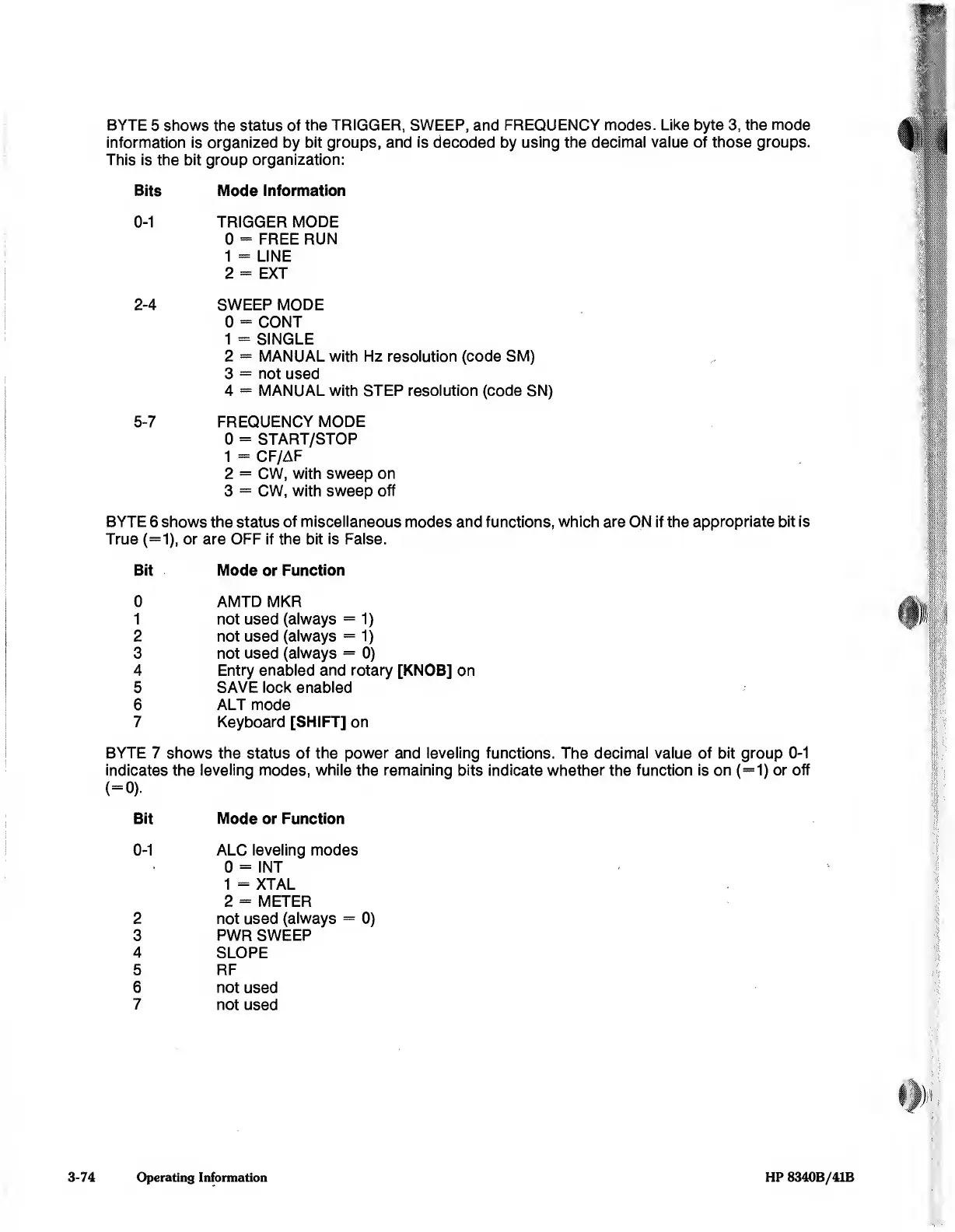

BYTE
5
shows
the
status
of
the
TRIGGER,
SWEEP,
and
FREQUENCY
modes.
Like
byte
3,
the
mode
information
is
organized
by
bit
groups,
and
is
decoded
by
using
the
decimal
value
of
those
groups.
This
is
the
bit
group
organization:
Bits
Mode
Information
0-1
TRIGGER
MODE
0
=
FREE
RUN
1
=
LINE
2
=
EXT
2-4
SWEEP
MODE
0
=
CONT
1
=
SINGLE
2
=
MANUAL
with
Hz
resolution
(code
SM)
3
=
not
used
4
=
MANUAL
with
STEP
resolution
(code
SN)
5-7
FREQUENCY
MODE
0
=
START/STOP
1
=
CF/AF
2
=
CW,
with
sweep
on
3
=
CW,
with
sweep
off
BYTE
6
shows
the
status
of
miscellaneous
modes
and
functions,
which
are
ON
if
the
appropriate
bit
is
True
(=1),
or
are
OFF
if
the
bit
is
False.
Bit
Mode
or
Function
0
AMTD
MKR
1
not
used
(always
=
1)
2
not
used
(always
=
1)
3
not
used
(always
=
0)
4
Entry
enabled
and
rotary
[KNOB]
on
5
SAVE
lock
enabled
6
ALT
mode
7
Keyboard
[SHIFT]
on
BYTE
7
shows
the
status
of
the
power
and
leveling
functions.
The
decimal
value
of
bit
group
0-1
indicates
the
leveling
modes,
while
the
remaining
bits
indicate
whether
the
function
is
on
(=1)
or
off
(=
0
).
Bit
Mode
or
Function
0-1
ALC
leveling
modes
0
=
INT
1
=
XTAL
2
=
METER
2
not
used
(always
=
0)
3
PWR
SWEEP
4
SLOPE
5
RF
6
not
used
7
not
used
3-74
Operating
Information
