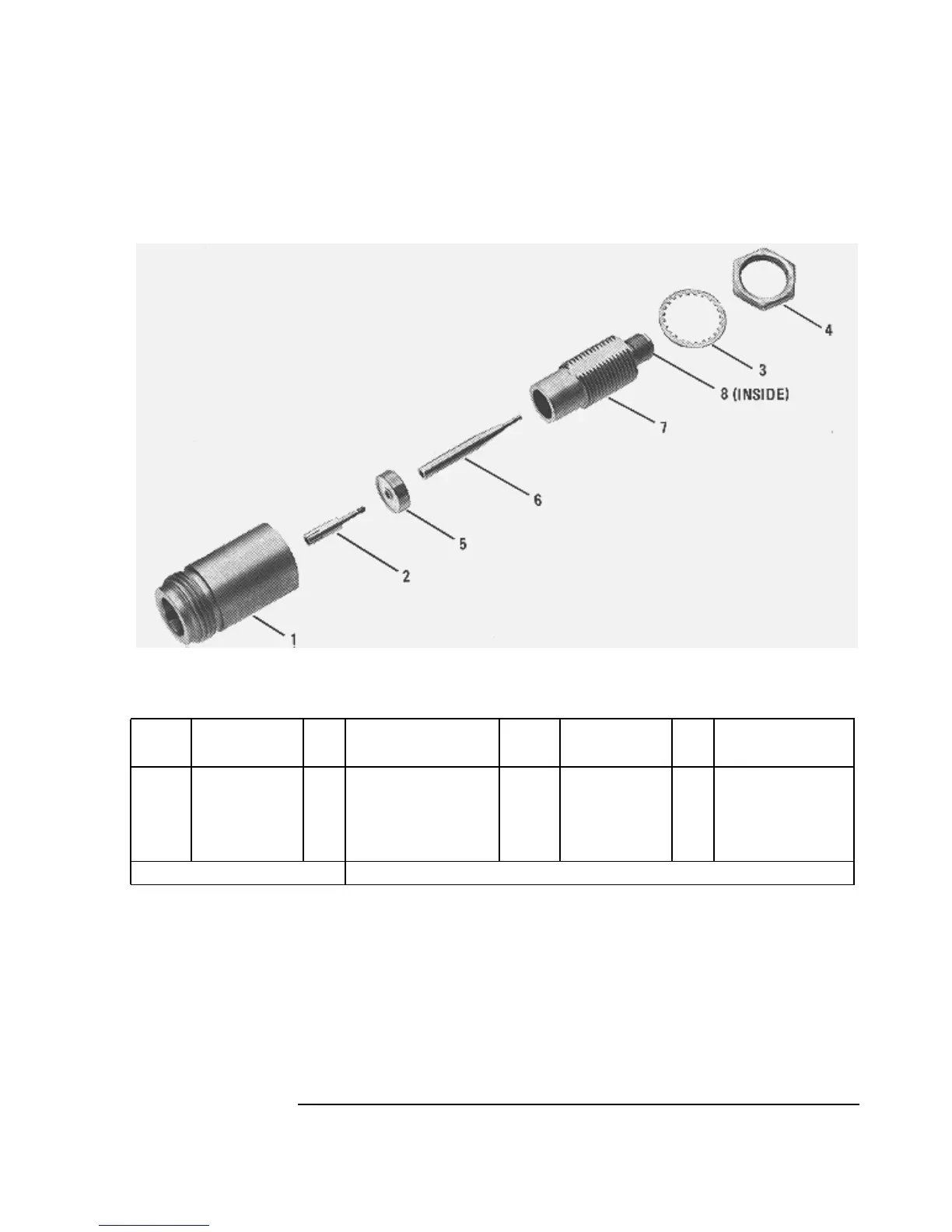

Figure 12 HP 8447D/E/F Type-N Connector (Options 010 and 011)
Index
No.
Part No. CD Description
Index
No.
Part No. CD Description
1 1250-0914 7 Body, RF conn 5 5040-0306 0 Insulator
2 1250-0915 8 Contact, RF conn 6 08555-20094 5 Contact, jack
3 2190-0444 1 Washer, lock 7 08555-20094 6 Body bulkhead
4 2950-0132 6 Nut, hex 8 08761-2027 4 Insulator
08559-60002 Complete assembly
