HP 8642B Operation And Calibration Manual

Model 8642A/B Operation
Amplitude (cont'd)

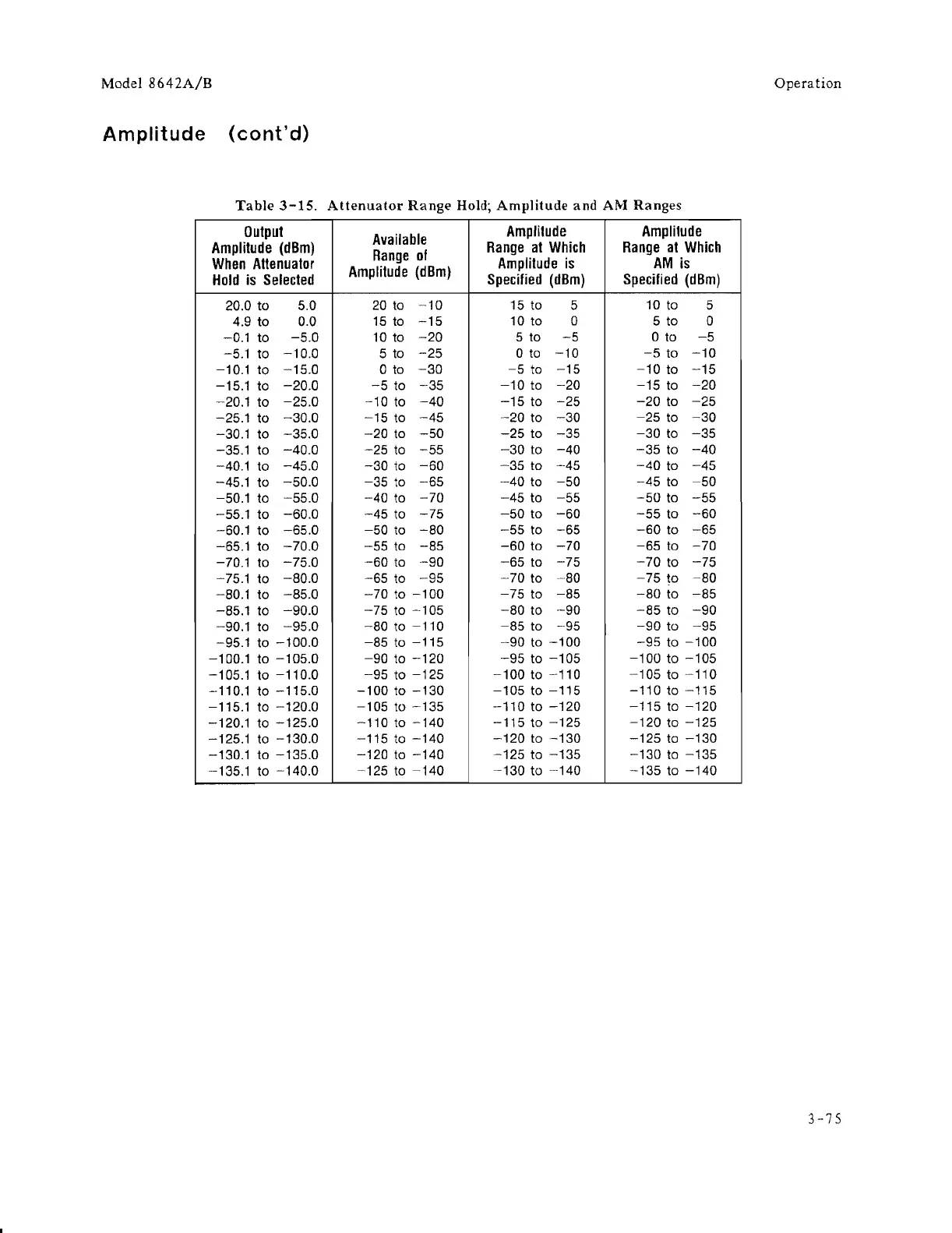

Table 3-15. Attenuator Range Hold; Amplitude and AM Ranges
Output
Available
Amplitude
Amplitude
Amplitude (dBm)
Range of
Range at Which Range at Which
When Attenuator
Amplitude (dBm)
Amplitude is
AM is
Hold is Selected
Specified (dBm)
Specified (dBm)
20.0 to
5.0
20
to
-10
15 to 5
10
to
5
4.9 to
0.0 15 to
-15 10 to 0 5 to
0
-0.1 to
-5.0
10 to
-20
5 to
-5
o to
-5
-5.1 to
-10.0
5 to
-25
o to
-10
-5 to -10
-10.1 to
-15.0
o to
-30 -5 to -15 -10 to -15
-15.1 to
-20.0 -5 to
-35 -10 to
-20
-15 to
-20
-20.1 to
-25.0 -10 to
-40
-15 to
-25 -20 to -25
-25.1 to
-30.0
-15 to -45 -20 to -30 -25 to -30
-30.1 to
-35.0 -20 to
-50 -25 to -35 -30 to
-35
-35.1 to
-40.0 -25 to -55 -30 to
-40
-35 to
-40
-40.1 to
-45.0 -30 to -60
-35
to -45 -40 to -45
-45.1 to
-50.0 -35 to
-65 -40 to
-50
-45 to
-50
-50.1 to
-55.0 -40 to -70 -45 to
-55 -50 to -55
-55.1 to
-60.0 -45 to
-75
-50
to
-60
-55 to
-60
-60.1 to
-65.0 -50 to
-80 -55 to -65 -60 to -65
-65.1 to
-70.0 -55 to
-85
-60
to
-70 -65 to -70
-70.1 to
-75.0 -60 to -90 -65 to -75 -70 to -75
-75.1 to
-80.0 -65 to
-95 -70 to -80 -75 to
-80
-80.1 to -85.0
-70 to -100 -75 to -85 -80 to -85
-85.1 to -90.0
-75 to -105 -80 to
-90
-85
to
-90
-90.1 to
-95.0 -80 to -110
-85 to -95 -90 to -95
-95.1 to -100.0
-85 to -115 -90 to -100 -95 to -100
-100.1 to -105.0 -90 to -120 -95 to -105 -100 to -105
-105.1 to -110.0
-95 to -125 -100 to -110
-105 to -110
-110.1 to -115.0
-100 to -130
-105 to -115 -110 to -115
-115.1 to -120.0
-105 to -135 -110 to -120 -115 to -120
-120.1 to -125.0
-110 to -140 -115 to -125
-120
to -125
-125.1 to -130.0
-115 to -140
-120 to -130 -125 to -130
-130.1 to -135.0 -120 to -140 -125 to -135
-130
to -135
-135.1 to -140.0
-125 to -140
-130 to -140 -135 to -140
3-75
