Model 8642A/B
Operation
OIl)

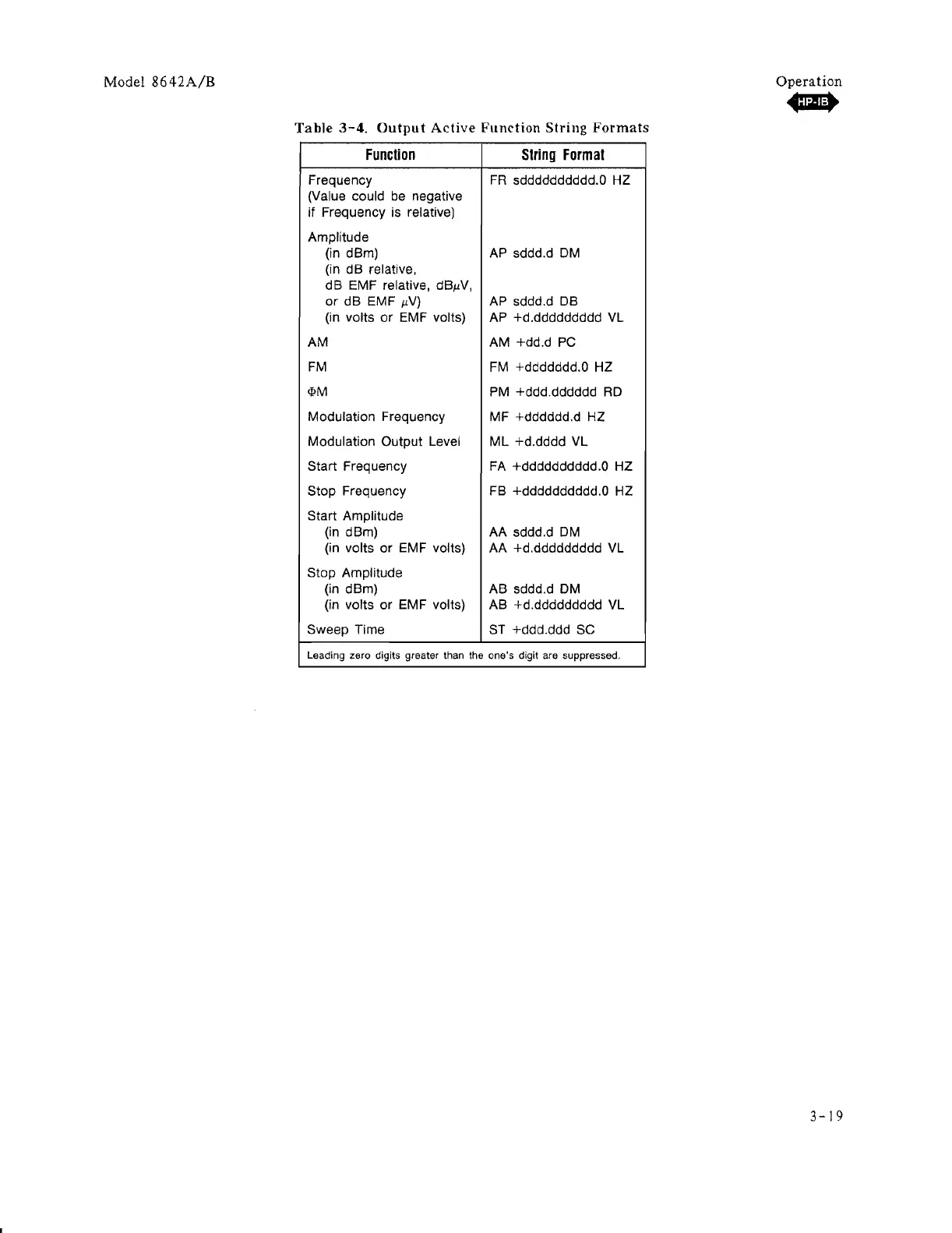

Table 3-4. Output Active Function String Formats
Function
String Format
Frequency FR sdddddddddd.O HZ
(Value could be negative
if Frequency is relative)
Amplitude
(in dBm)
AP sddd.d DM
(in dB relative,
dB EMF relative, dB/N,
or dB EMF IlV)
AP sddd.d DB
(in volts or EMF volts)
AP +d.ddddddddd VL
AM AM +dd.d
PC
FM
FM +ddddddd.O HZ
<PM PM +ddd.dddddd RD
Modulation Frequency
MF +dddddd.d HZ
Modulation Output Level
ML +d.dddd VL
Start Frequency
FA +dddddddddd.O HZ
Stop Frequency
FB +dddddddddd.O HZ
Start Amplitude
(in dBm)
AA sddd.d
DM
(in volts or EMF volts)
AA +d.ddddddddd VL
Stop Amplitude
(in dSm)
AS sddd.d
DM
(in volts or EMF volts)
AS +d.ddddddddd VL
Sweep Time
ST +ddd.ddd SC
Leading zero digits greater than the one's digit are suppressed.
