HP 8642B Operation And Calibration Manual

Model 8642A/3
CD
~ __ SWEEP __ -,
rs;;-J, ..
~
DO
o CD C8J CD ctJ::
--C!] GJ CD CD C!~}
OGJCDCD~}:
OOJOCDG:J
:0 [~}
o
nr;c;iI
U§.U
~
.. ~
o GtJ·
o
~o·~"o
These keys make the main functions of the Signal
Generator active functions so they can be set using
Operation
either Data keys, the Knob, Step keys, or the Off/On key.
The cursor deSignates which function is active.
The blue Shift key enables you to access the functions
labeled in blue.
These keys are used to set the values of the Signal
Generator functions
The Knob usually modifies a specific digit in the
display The keys select which digit will be modified.
The keys can also select Knob Hold or Knob Increment.
The Step keys enable you to step a function by the
value that was set using the ~] key.
The Off/On key toggles an active function off or on
with a single keystroke.

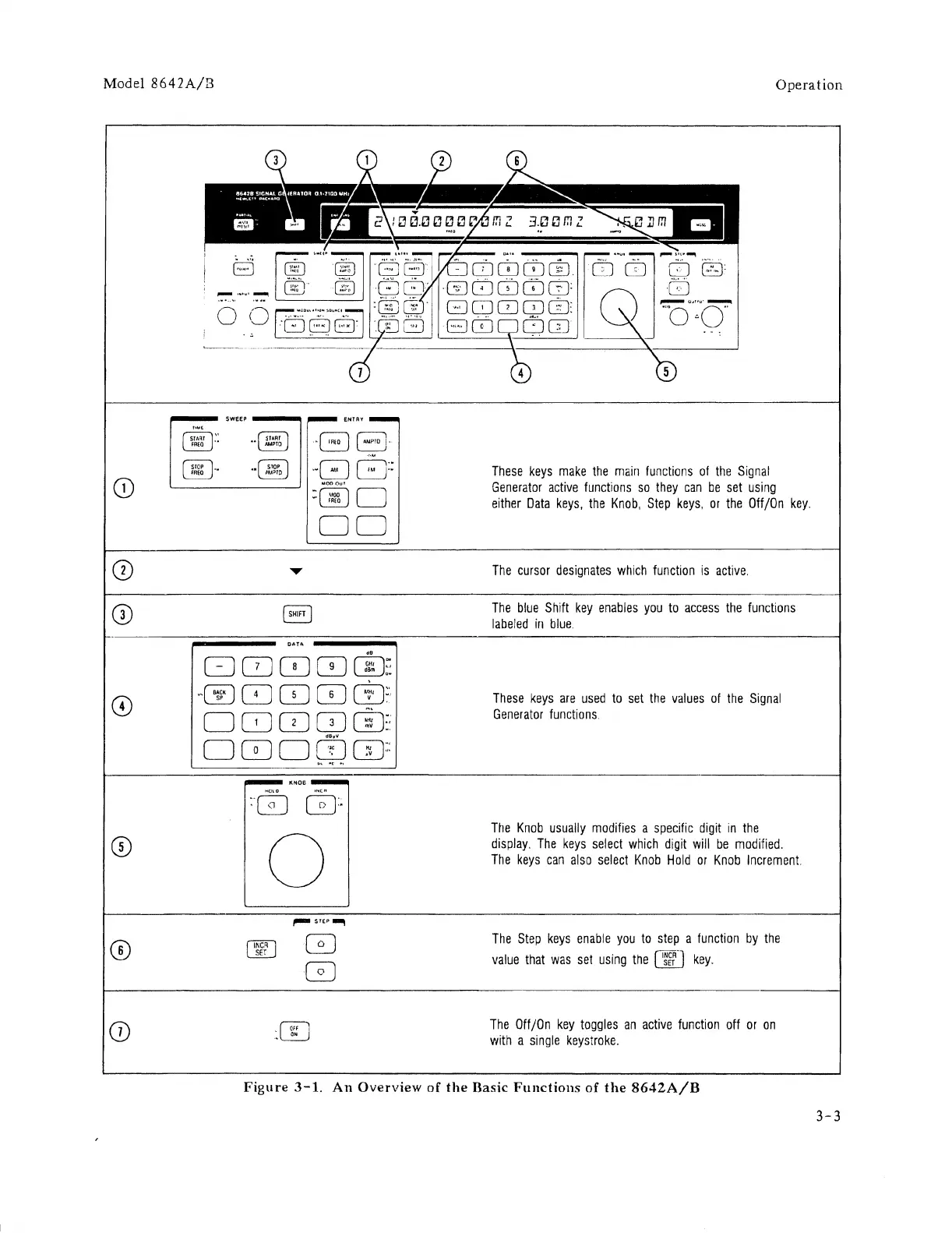

Figure 3-1. An Overview of the Basic Functions of the 8642A/B
3-3
