Operation
Model 8642A/B

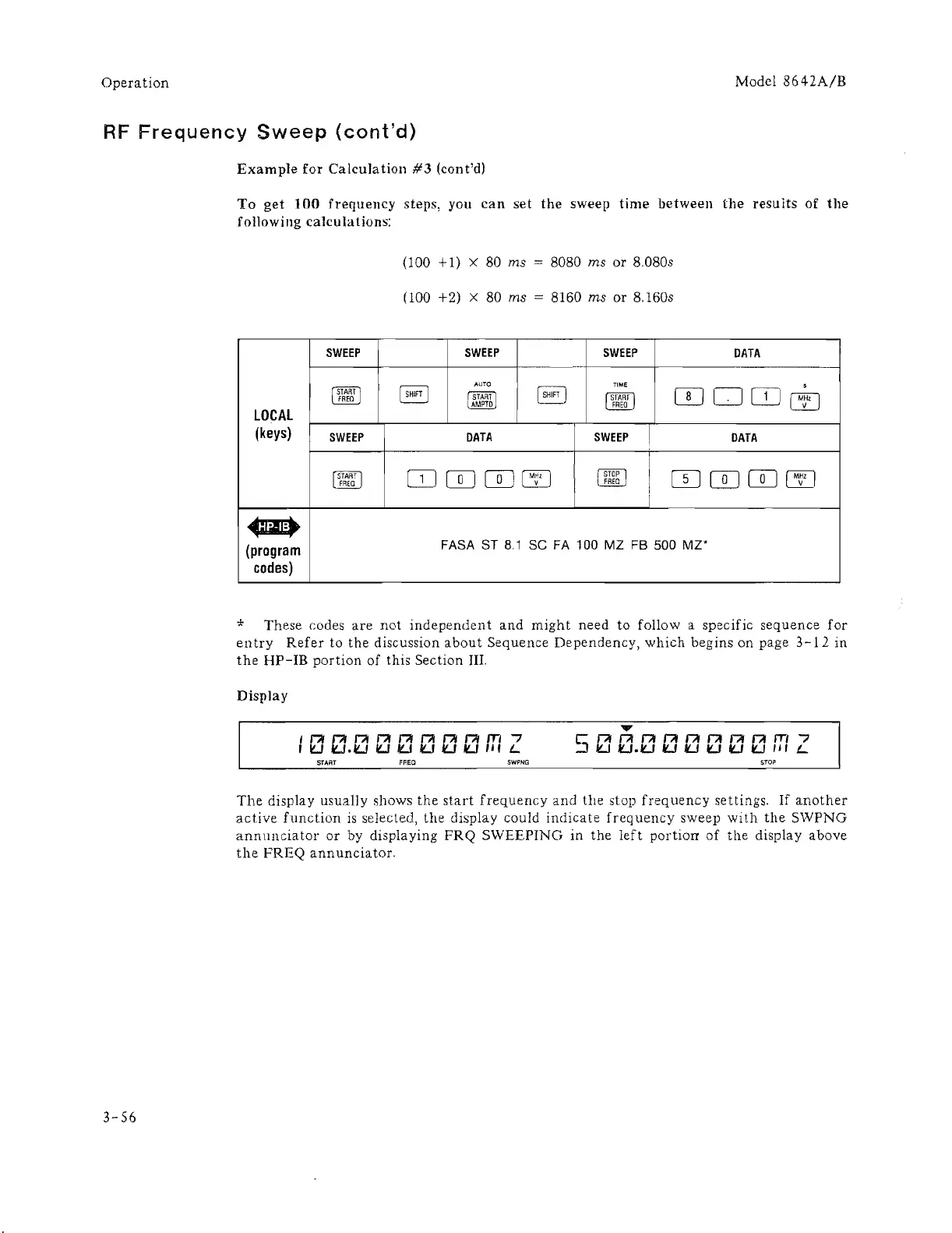

RF Frequency Sweep (cont'd)
3-56
Example for Calculation #3 (cont'd)
To get 100 frequency steps, you can set the sweep time between the results of the
following calculations:
(100 +1) X 80 ms = 8080 ms or 8.080s
(100 +2) X 80 ms = 8160 ms or 8.160s
SWEEP SWEEP SWEEP
DATA
EJ
AUTO
EJ
TIME
,
[START I
[f~!~I,)
START
OJ 00]
(Y)
FRED
FREO
LOCAL
(keys)
SWEEP
DATA
SWEEP
I
DATA
I
[STAR' )
o]CDCD[y)
[1;J
I
IT] CD CD
( M~Z I
FRED
fRED
i
I
~
(program
FASA ST 8.1 SC FA 100 MZ FB 500 MZ*
codes)
* These codes are not independent and might need to follow a specific sequence for
entry Refer to the discussion about Sequence Dependency, which begins on page 3-12 in
the HP- IB portion of this Section III.
Display
""
I 0 0.0 0 0 0 PI PI m z
5 0 0.0 0 0 0 0 0 m z
STAAT FREO
SWPNG STOP
The display usually shows the start frequency and the stop frequency settings. If another
active function is selected, the display could indicate frequency sweep with the SWPNG
annullciator or by displaying FRQ SWEEPING in the left portiorr of the display above
the FREQ annunciator.
