Model 8642A/B
General Information

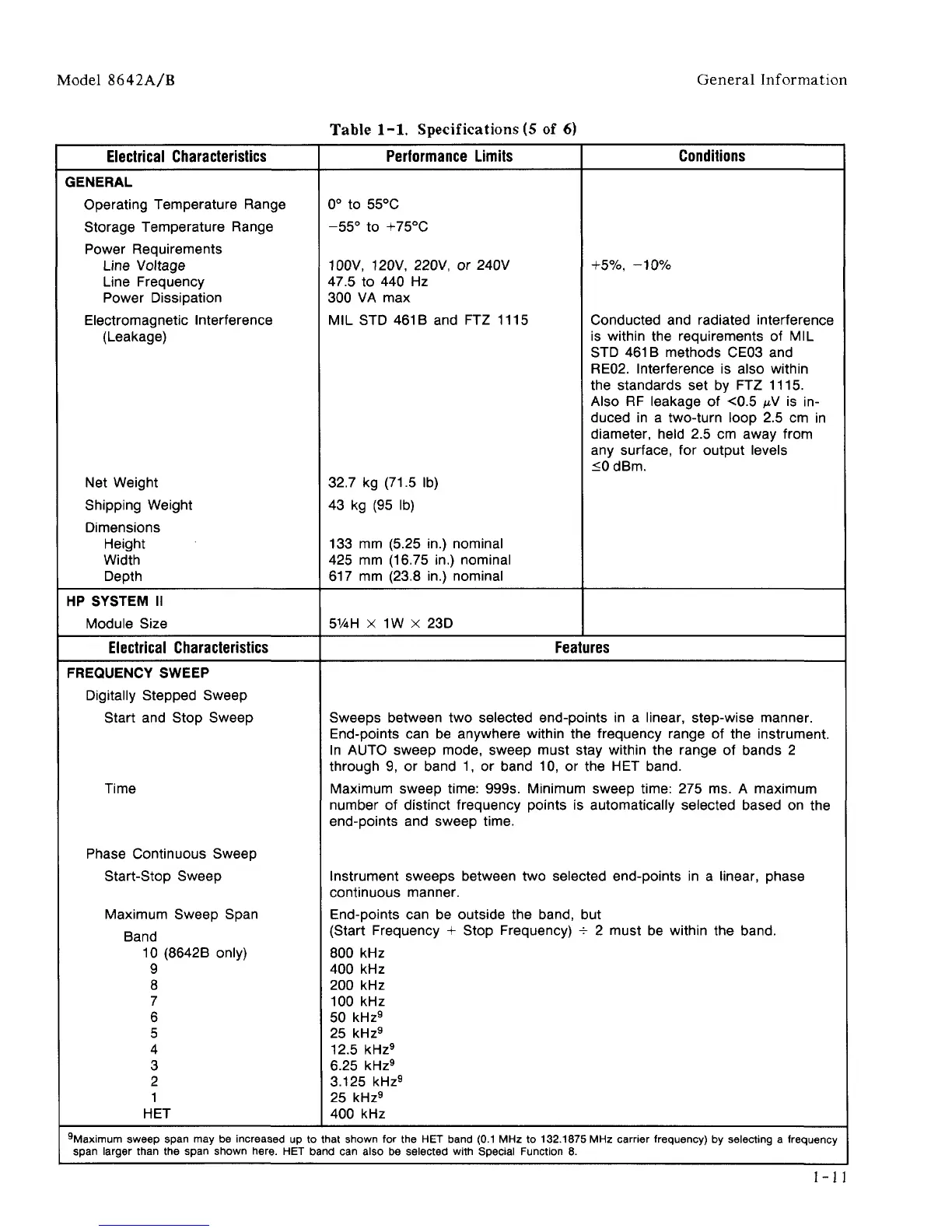

Table 1-1. Specifications (5 of 6)
Electrical Characteristics
GENERAL
Operating Temperature Range
Storage Temperature Range
Power Requirements
Line Voltage
Line Frequency
Power Dissipation
Electromagnetic Interference
(Leakage)
Net Weight
Shipping Weight
Dimensions
Height
Width
Depth
HP SYSTEM
II
Module Size
Electrical Characteristics
FREQUENCY SWEEP
Digitally Stepped Sweep
Start
and
Stop Sweep
Time
Phase Continuous Sweep
Start-Stop Sweep
Maximum Sweep Span
Band
10 (8642B only)
9
8
7
6
5
4
3
2
1
HET
Performance Limits
0°
to
55°C
-55°
to
+75°C
100V,
120V,
220V,
or
240V
47.5
to 440 Hz
300
VA max
MIL
STD 461B and FTZ 1115
32.7
kg (71.5 lb)
43
kg (95 lb)
133
mm (5.25 in.)
nominal
425
mm
(16.75
in.)
nominal
617
mm (23.8 in.)
nominal
5
1
AH
X 1W x 23D
Conditions
+5%,
-10%
Conducted
and
radiated interference
is within
the
requirements
of MIL
STD
461B
methods CE03
and
RE02.
Interference
is
also within
the standards
set by FTZ 1115.
Also
RF
leakage
of <0.5 ^V is in-
duced
in a
two-turn loop
2.5 cm in
diameter, held
2.5 cm
away from
any surface,
for
output levels
<0dBm.
Features
Sweeps between
two
selected end-points
in a
linear, step-wise manner.
End-points
can be
anywhere within
the
frequency range
of the
instrument.
In AUTO sweep mode, sweep must stay within
the
range
of
bands
2
through
9, or
band
1, or
band
10, or the HET
band.
Maximum sweep time: 999s. Minimum sweep time:
275 ms. A
maximum
number
of
distinct frequency points
is
automatically selected based
on the
end-points
and
sweep time.
Instrument sweeps between
two
selected end-points
in a
linear, phase
continuous manner.
End-points
can be
outside
the
band,
but
(Start Frequency
+
Stop Frequency)
H- 2
must
be
within
the
band.
800
kHz
400
kHz
200
kHz
100
kHz
50 kHz
9
25 kHz
9
12.5 kHz
9
6.25 kHz
9
3.125 kHz
9
25 kHz
9
400
kHz
9
Maximum sweep span
may be
increased
up to
that shown
for the HET
band
(0.1 MHz to
132.1875
MHz
carrier frequency)
by
selecting
a
frequency
span larger than
the
span shown here.
HET
band
can
also
be
selected with Special Function
8.
