General Information
Model 8642A/B

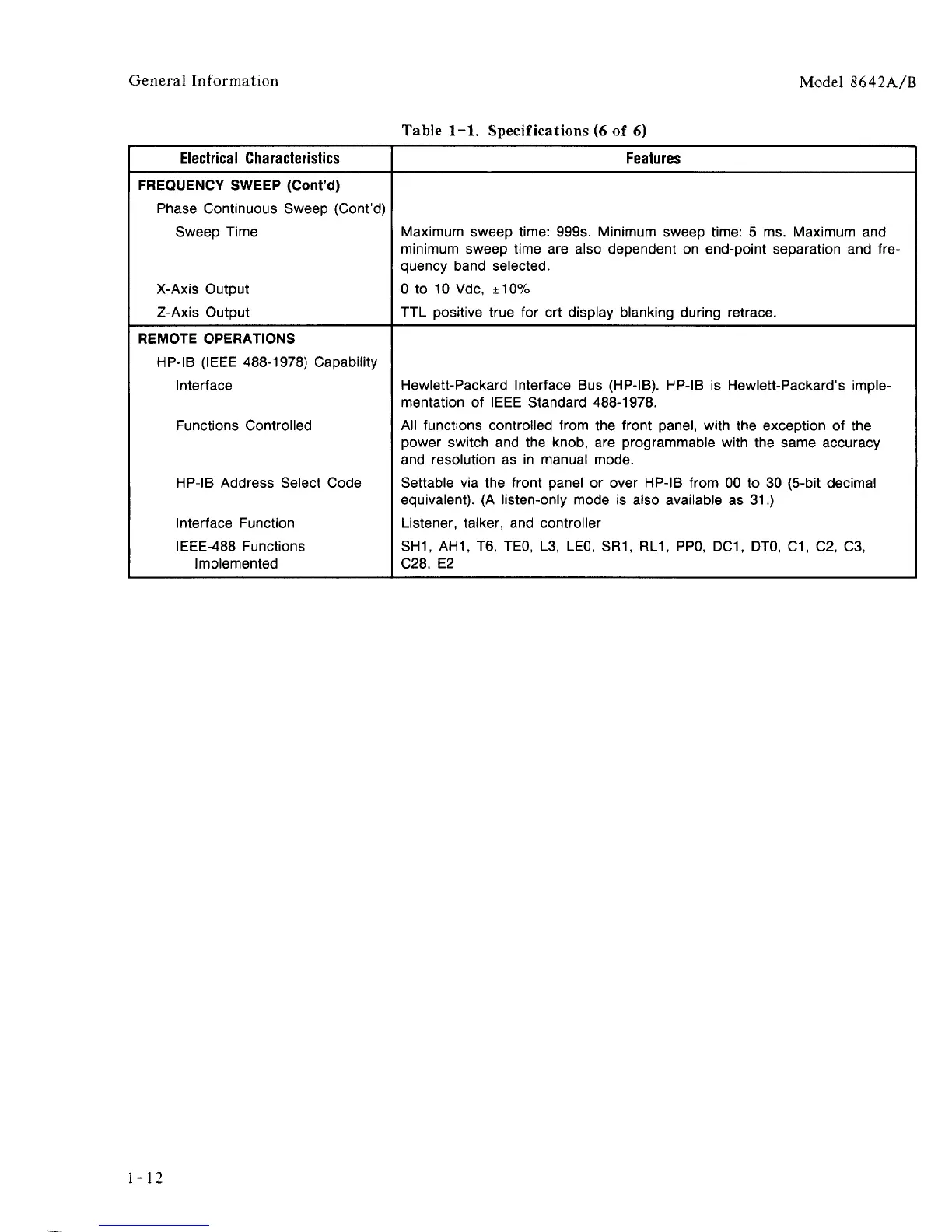

Table 1-1. Specifications (6 of 6)
Electrical Characteristics
FREQUENCY SWEEP (Cont'd)
Phase Continuous Sweep (Cont'd)
Sweep Time
X-Axis Output
Z-Axis Output
REMOTE OPERATIONS
HP-IB (IEEE 488-1978) Capability
Interface
Functions Controlled
HP-IB Address Select Code
Interface Function
IEEE-488 Functions
Implemented
Features
Maximum sweep time: 999s. Minimum sweep time: 5 ms. Maximum and
minimum sweep time are also dependent on end-point separation and
fre-
quency band selected.
0 to 10 Vdc, ±10%
TTL positive true for crt display blanking during retrace.
Hewlett-Packard Interface Bus (HP-IB). HP-IB is Hewlett-Packard's imple-
mentation of IEEE Standard 488-1978.
All functions controlled from the front panel, with the exception of the
power switch and the knob, are programmable with the same accuracy
and resolution as in manual mode.
Settable via the front panel or over HP-IB from 00 to 30 (5-bit decimal
equivalent). (A listen-only mode is also available as 31.)
Listener, talker, and controller
SH1,
AH1, T6, TE0, L3, LEO, SR1, RL1, PP0, DC1, DT0, C1, C2, C3,
C28,
E2
1-12
