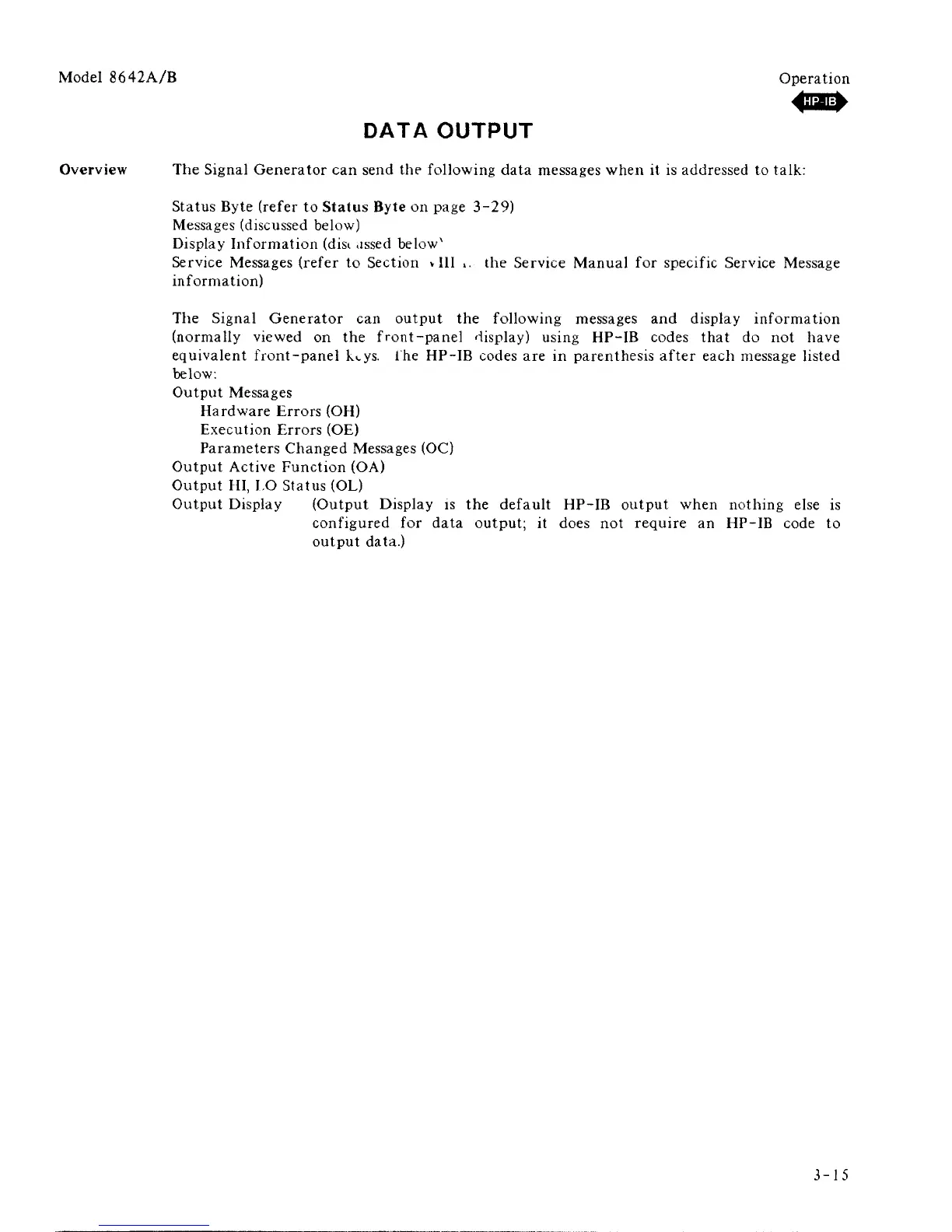

Model 8642A/B Operation
DATA OUTPUT
Overview The Signal Generator can send the following data messages when it is addressed to talk:
Status Byte (refer to Status Byte on page 3-29)
Messages (discussed below)
Display Information (dist assed below*
Service Messages (refer to Section
v
HI ,. the Service Manual for specific Service Message
information)
The Signal Generator can output the following messages and display information
(normally viewed on the front-panel display) using HP-IB codes that do not have
equivalent front-panel k«.ys. the HP-IB codes are in parenthesis after each message listed
below:
Output Messages
Hardware Errors (OH)
Execution Errors (OE)
Parameters Changed Messages (OC)
Output Active Function (OA)
Output HI, I.O Status (OL)
Output Display (Output Display is the default HP-IB output when nothing else is
configured for data output; it does not require an HP-IB code to
output data.)
3-15
