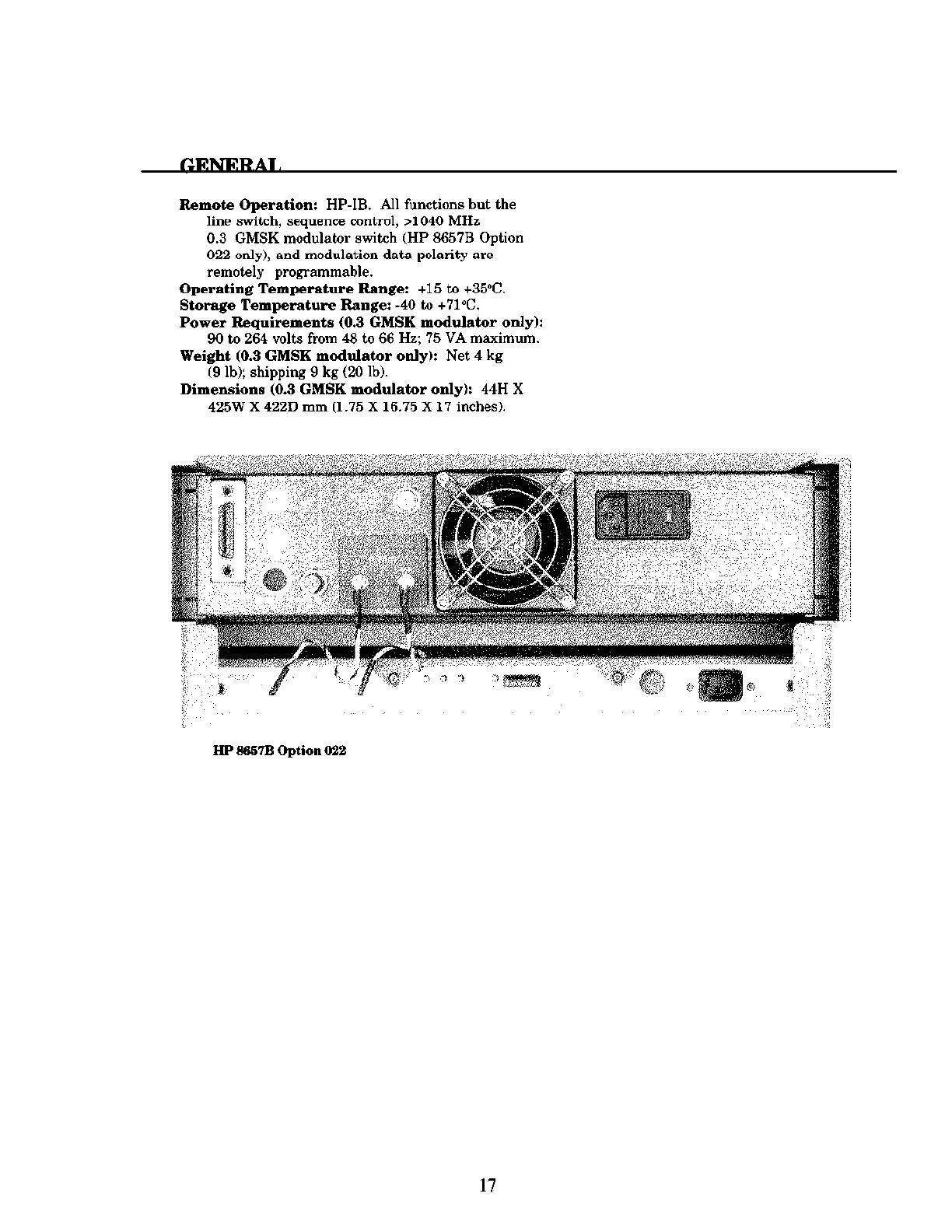

HP 8656 Series - Page 17

Remote Operation: HP-IB. All functions but the
line switch, sequence oontrol, >I040 MHz
0.3 GMSK modulator switch (HP 8657B Option
022 only), and modulation data polarity are
remotely programmable.
Operating Temperuture Range: +15 to +35"C.
Storage Temperature Range: -40 to +71°C.
Power Requirements (0.3 GMSK modulator only):
90 to 264 volts from 48 to 66 Hz; 75 VA maximum.
Weight (0.3 GMSK modulator only): Net 4 kg
19 lb); shipping 9 kg (20 lb).
Dimensions (03 GMSK modulator only): 44H X
425W X 422D mm (1.75 X 16.75 X 17 inches).
