11. If it is necessary to replace the display bezel or display hinges, remove the rubber screw covers
listed below. All rubber screw covers are included in the Display Rubber Kit, spare part number
450573-001.
NOTE: See Display inverter and ambient light sensor board on page 45 for display inverter and
ambient light sensor board replacement instructions.

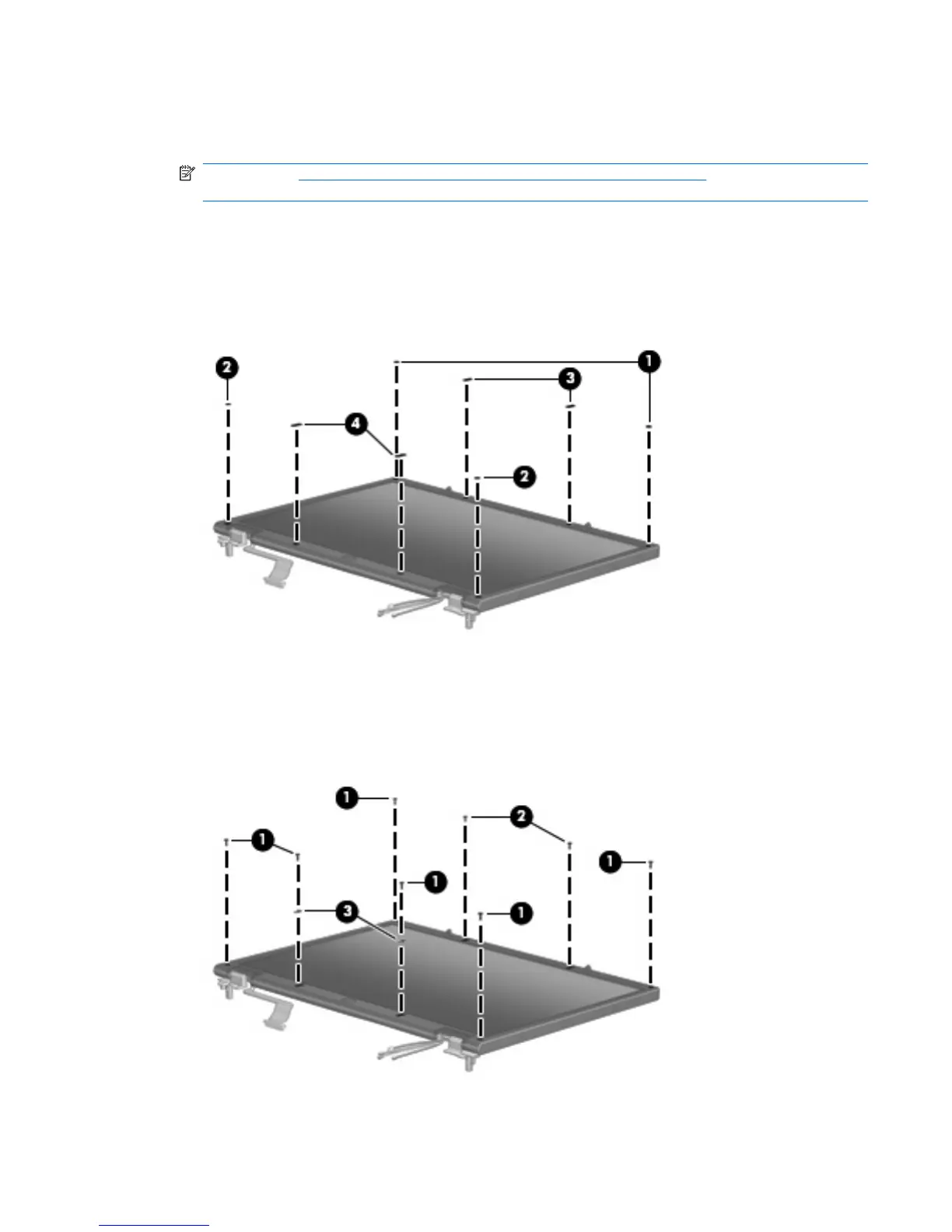

(1) Two rounded rubber screw covers on the display bezel top edge corners
(2) Two flat rubber screw covers on the display bezel bottom edge corners
(3) Two small oblong rubber screw covers on the display bezel top edge
(4) Two large oblong rubber screw covers on the display bezel top edge
12. Remove the following screws:
(1) Six Phillips PM2.5×7.0 screws
(2) Two Phillips PM2.0×6.0 screws
(3) Two stabilizer clips
Component replacement procedures 79
