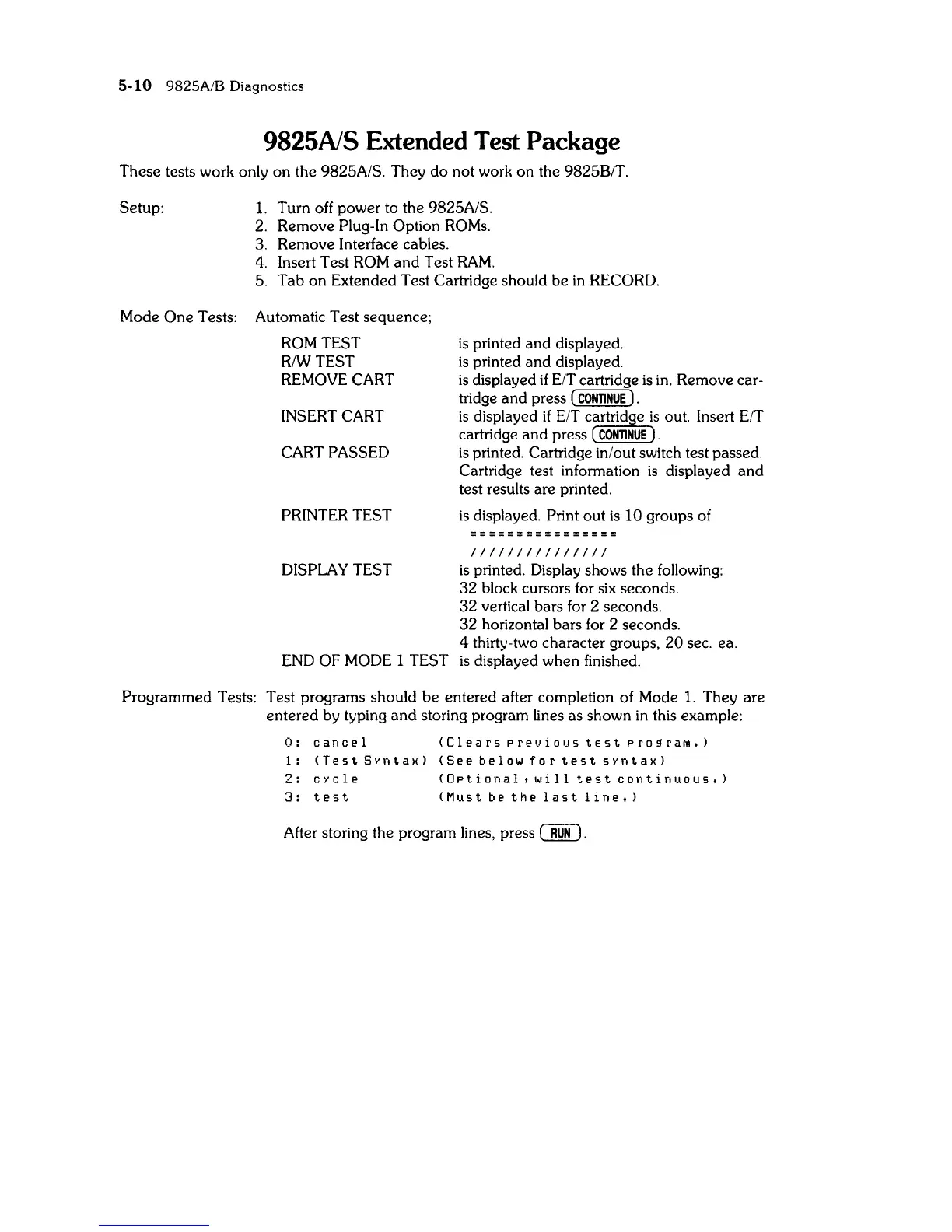

5-10 9825A/B Diagnostics
9825A1S
Extended Test Package
These tests work only
on
the 9825A/S. They
do
not work on the 98258/T.
Setup:
1.
Turn off power to the 9825A/S.
2. Remove Plug-In Option
ROMs.
3. Remove Interface cables.
4.
Insert Test
ROM
and
Test
RAM.
5. Tab
on
Extended Test Cartridge should be
in
RECORD.
Mode
One
Tests: Automatic Test sequence;
ROM
TEST
RIWTEST
REMOVE CART
INSERT CART
CART
PASSED
PRINTER TEST
DISPLAY TEST
is
printed
and
displayed.
is
printed
and
displayed.
is
displayed
if
EIT
cartridge
is
in. Remove car-
tridge
and
press (
CONTINUE)
.
is
displayed
if
EIT
cartridge
is
out. Insert
EIT
cartridge and press (
CONTINUE)
.
is
printed. Cartridge inlout switch test passed.
Cartridge test information
is
displayed
and
test results are printed.
is
displayed. Print out
is
10 groups of
////1//1//1////
is
printed. Display shows the following:
32
block cursors for six seconds.
32 vertical bars for 2 seconds.
32 horizontal bars for 2 seconds.
4 thirty-two character groups,
20
sec. ea.
END OF MODE 1 TEST
is
displayed when finished.
Programmed Tests: Test programs should
be
entered after completion of Mode
1.
They are
entered by typing
and
storing program lines as shown
in
this example:
0:
cancel
(Clears
previous
test
program.)
1:
(TestSYntax)
(SeebelowfortestsYntax)
2:
c)'cle
3:
test
(Optional,
I"lill
test
continuous.)
(Must
be
the
last
line.)
After storing the program lines, press
~.
To Next Page
