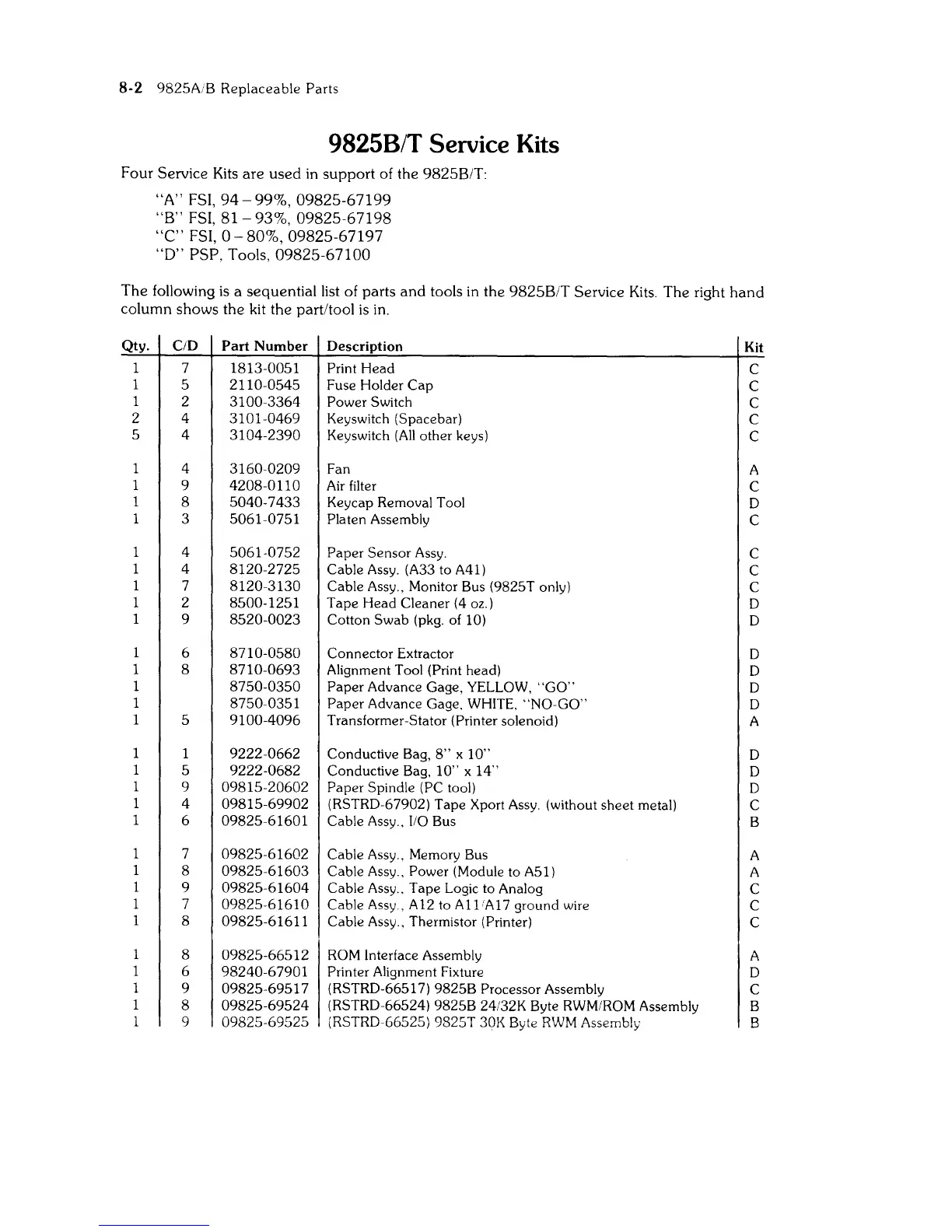

8-2 9825AiB Replaceable Parts
9825B/T Service Kits
Four Service
Kits
are used
in
support of the 9825B/T:
"A" FSI,
94-99%,
09825-67199
"B"
FSI,
81-93%,
09825-67198
"e" FSI, 0 - 80%,
09825-67197
"D"
PSp, Tools,
09825-67100
The following
is
a sequential list of parts and tools
in
the 9825B/T Service
Kits.
The right hand
column shows the kit the part/tool
is
in.
Qty.
c/D
Part Number Description
Kit
1 7
1813-0051 Print Head
C
1
5
2110-0545
Fuse Holder
Cap
C
1
2
3100-3364
Power Switch
C
2 4
3101-0469
Keyswitch (Spacebar)
C
5 4
3104-2390
Keyswitch
(All
other keys)
C
1 4
3160-0209
Fan
A
1
9
4208-0110
Air
filter
C
1
8
5040-7433
Keycap Removal Tool
D
1
3
5061-0751 Platen Assembly
C
1 4
5061-0752
Paper Sensor
Assy.
C
1 4
8120-2725
Cable
Assy.
(A33 to A41)
C
1
7
8120-3130
Cable Assy., Monitor Bus (9825T only)
C
1 2
8500-1251
Tape Head Cleaner (4 oz.)
D
1
9
8520-0023
Cotton Swab (pkg. of 10)
D
1
6
8710-0580
Connector Extractor
D
1
8
8710-0693
Alignment Tool (print head)
D
1
8750-0350
Paper Advance Gage, YELLOW,
"GO"
D
1
8750-0351
Paper
Advance Gage, WHITE, "NO-GO"
D
1
5
9100-4096
Transformer-Stator (Printer solenoid)
A
1
1
9222-0662
Conductive Bag,
8"
x
10"
D
1
5
9222-0682
Conductive Bag,
10"
x
14"
D
1
9
09815-20602
Paper Spindle (pC tool)
D
1
4
09815-69902
(RSTRD-67902) Tape Xport
Assy.
(without sheet metal)
C
1
6
09825-61601
Cable Assy.,
110
Bus
B
1
7
09825-61602
Cable Assy., Memory Bus
A
1
8
09825-61603
Cable Assy., Power (Module to A51)
A
1
9
09825-61604
Cable Assy
..
Tape Logic to Analog
C
1
7
09825-61610
Cable Assy., A12 to A11/A17 ground wire
C
1
8
09825-61611
Cable Assy., Thermistor
(Printer)
C
1
8
09825-66512
ROM
Interface Assembly
A
1
6
98240-67901
Printer Alignment Fixture
D
1
9
09825-69517
(RSTRD-66517) 9825B Processor Assembly
C
1
8
09825-69524
(RSTRD-66524) 9825B 24/32K Byte RWM/ROM Assembly
B
1
9
09825-69525
(RSTRD-66525) 9825T 30K Byte
RWM
Assembly
B
