HP 9x9KS Series Upgrade Manual

3
CPU Upgrade
CPU Location

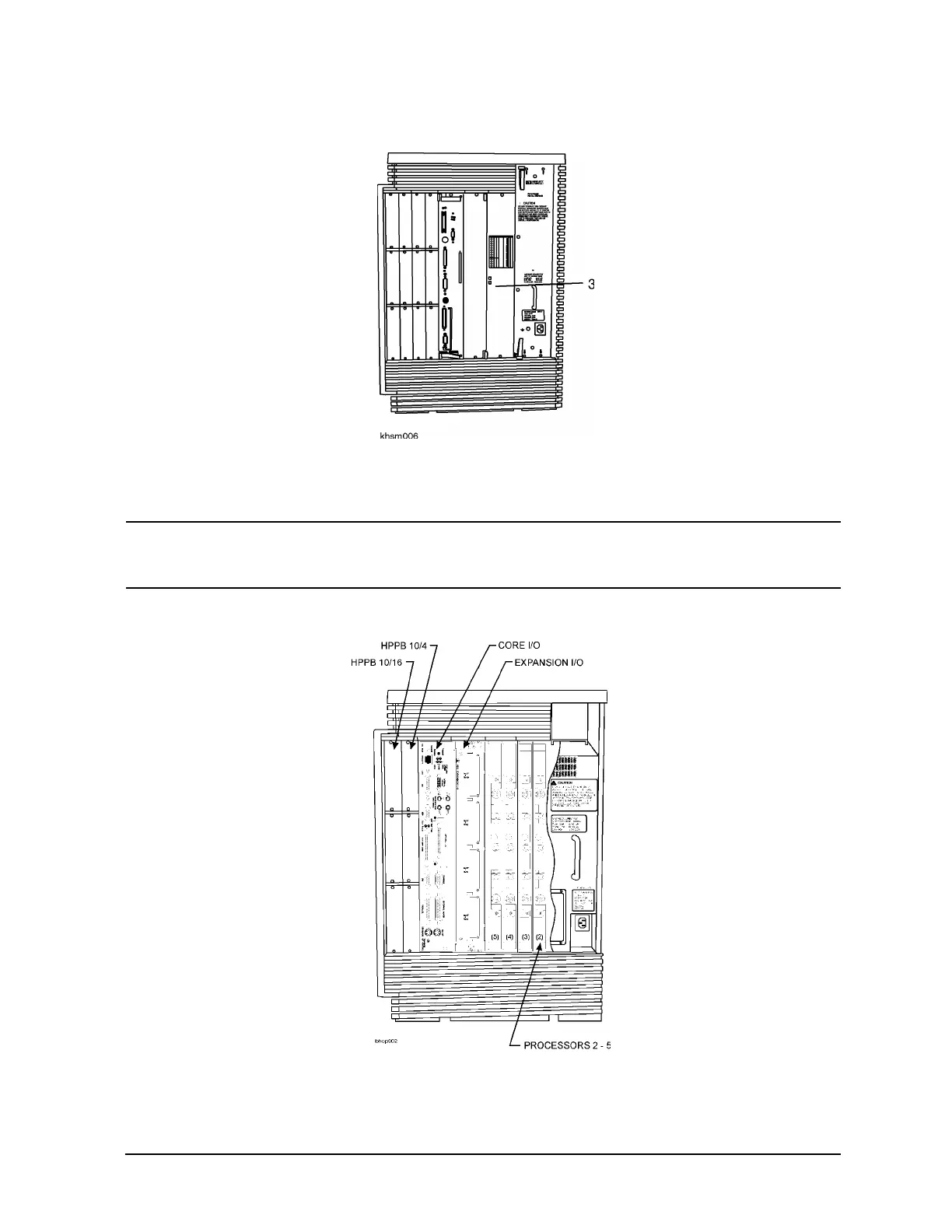

Figure 1-2 CPU Location, Rear View 9x9KS, K2xx, K360, and K4xx (Except 979 and 989KS)
Item 3 shows the location of CPU slot 2 and slot 3 (see the note following). Slot 2 is located next to the
power supply and slot 3 is located to the left of CPU slot 2.
NOTE
On HP3000/979KS/989KS and HP9000 models, the power supply and processor
covers conceal slots 2 and 3. Access to these slots requires removal of the power
supply.
Figure 1-3 CPU Location, Rear View K370/K570, K380/K580, and 979KS/989KS
Figure 1-3 shows the location of CPU slots 2 through 5. Slot 4 is located between slots 3 and 5. Slot 5 is
located next to the Kx70/Kx80 HP-HSC expansion slot.
